PIR judesio daviklis 230V 200W

Gamintojas: Goobay
Prekės kodas: 96006
Prieinamumas: Laikinai Neturime
12.50€
Be mokesčių: 10.33€
Artikel Details

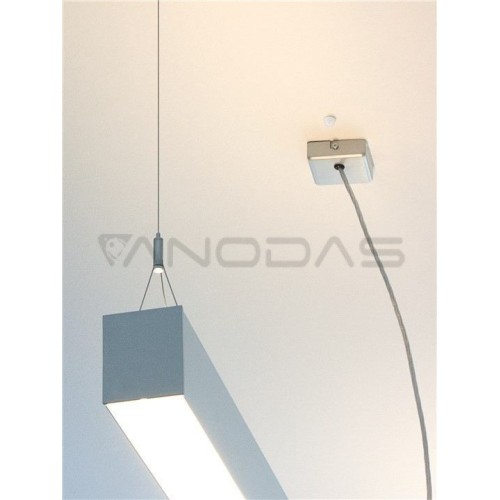

  • miniaturisation allows almost invisible mounting in raised or cavity ceilings/lamps
  • especially designed for indoor lighting, lamps, LEDs, etc.
  • accurate detection of people and animals in darkness or twilight
  • multi adjustable sensor for optimal detection setup
  • designed for the easy and quick ceiling flush-mounting

Technical specifications
  • Connections
  • Connection, type                               Loose cable ends

  • Performance
  • minimum load                                  1

  • sensor type                                      passive infrared (PIR)

  • switching power                                200 W

  • operating voltage                              230 V (AC)

  • max view angle                                 360 °

  • switch-off delay from                         10 s

  • switch-off delay to                            420 s

  • Installation height from                     2.2 m

  • Installation Height up to                     4 m

  • max. detection range                         6 m

  • Light sensitivity from                          3 lx

  • light sensitivity up to                         2000 lx

  • General
  • Consumption Unit                             1 pc. in cardboard box

  • protection class                                 IP20

  • Colorwhite

  • Markings                                          CE, Haus, WEEE

  • depth                                              24 mm

  • Diameter                                         15 mm

  • Weight                                            46 g
