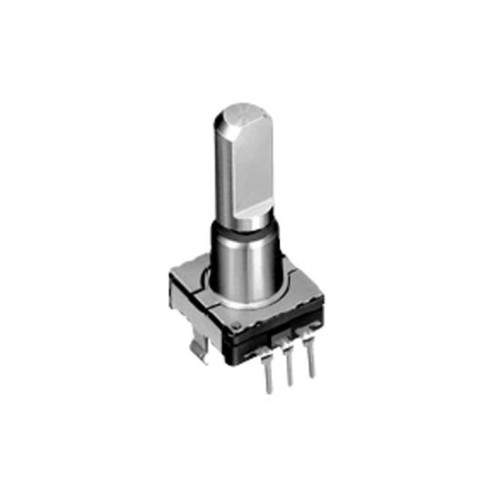

Enkoderis mechaninis 9 impulsų su jungikliu THT 10 mA

Gamintojas: ALPS
Prekės kodas: EC11E09244AQ
Prieinamumas: Parduotuvėje Vilniuje NĖRA
Parduotuvėje Kaune YRA
Centriniame sandėlyje NĖRA
3.08€
Be mokesčių: 2.54€

Kiekis

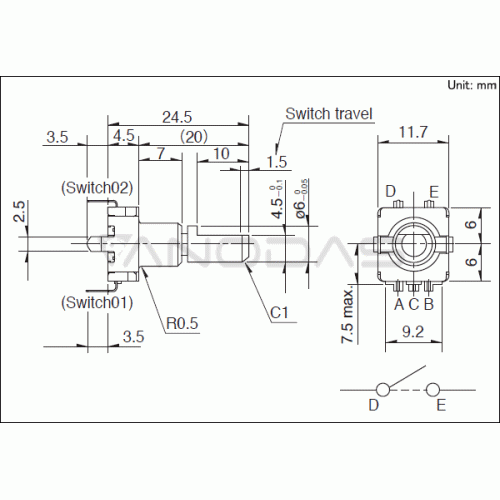

Structure Vertical
Actuator configuration Flat
Actuator length 20mm
Number of detent 18
Number of pulse 9
Push-on switch With
Travel of push-on switch 1.5mm
Operating life 15,000 cycles
Operating temperature range -40℃ to +85℃
Electrical performance Ratings 10mA 5V DC
Output signal Two phase A and B
Max./min. operating current(Resistive load) 10mA/1mA
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute or 360V AC for 2s
Mechanical performance Detent torque 10±7mN·m
Push-pull strength 100N
Push-on switch specifications Contact arrangement Single pole single throw (Push-on)
Travel 1.5±0.5mm
Operating force 4±2N
Rating 0.1A 5V DC (500μA 5V DC min. ratings)
Contact resistance (Initial performance/After lifetime) 100mΩ max./200mΩ max.
Operating life 20,000 times
Minimum order unit (pcs.) Japan 1,200
Export 2,400
3D CAD (STEP)
Certificate of Compliance to RoHS regulations

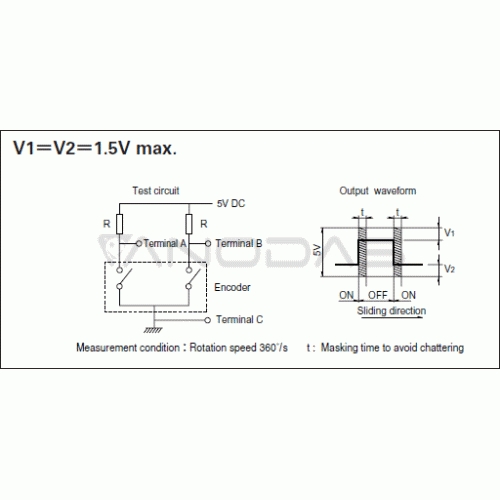

At R=5kΩ Chattering: 3ms max. Bounce: 2ms max.
Packing Specifications
Tray
Number of packages (pcs.) 1 case / Japan 1,200
1 case / export packing 2,400
Export package measurements (mm) 540×360×250



Soldering Conditions
Reference for Dip Soldering
Preheating Soldering surfacetemperature 100℃ max.
Heating time 2 min. max.
Dip soldering Soldering temperature 260±5℃
Soldering time 5±1s
No. of solders 2 time max.
Reference for Hand Soldering
Tip temperature 350℃ max.
Soldering time 3s max.
No. of solders 1 time


Notes are common to this series/models.
  1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
  2. Please place purchase orders per minimum order unit (integer).
  3. Products other than those listed in the above chart are also available. Please contact us for details.
  4. This products can be used in vehicles.
    Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use.
