ZVS Induction Furnace 12-48V - 1000W - 20A - Induction heater module

Product Code: ABC-9424
Availability: 5-8 business days
Planuojama gavimo data po užsakymo: 2025-04-30
55.80€
Ex Tax: 46.12€

Qty

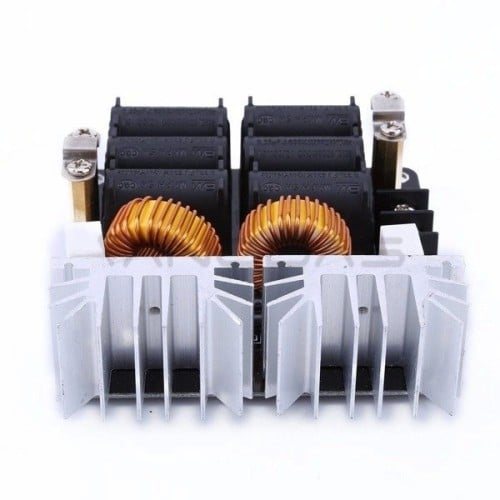

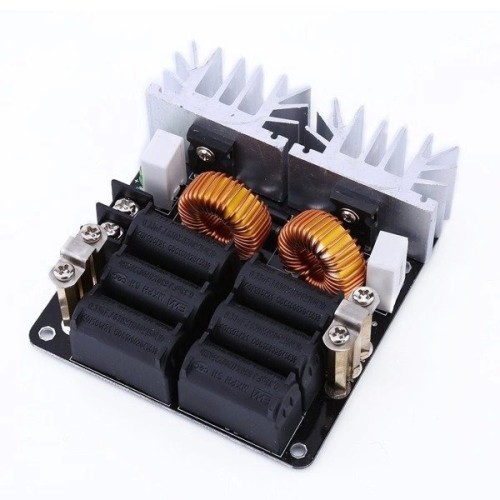

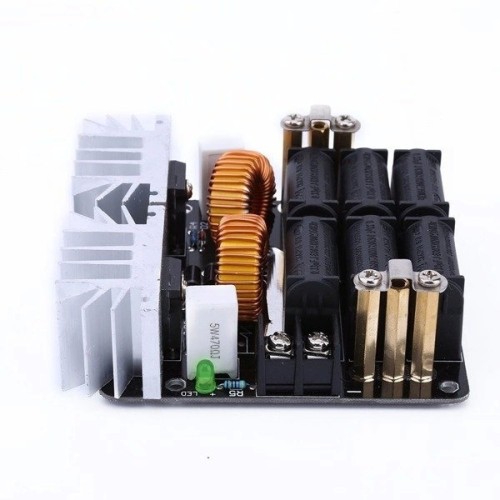

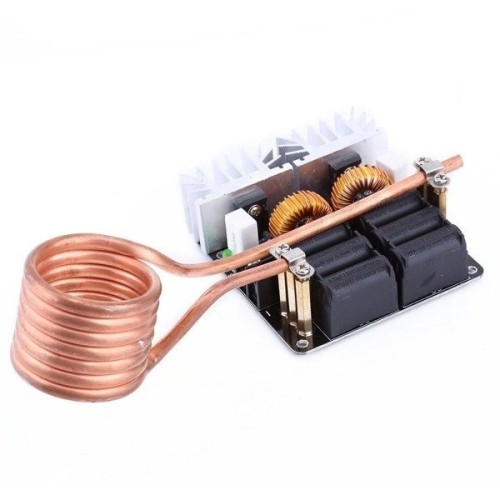

Induction furnace 12V - 48V with a maximum power of 1000W allowing for heating metal elements. It will be useful not only to help unscrew a stuck screw or unstick a window pane, but you can also harden steel or perform other interesting experiments. The coil should be attached to the board using clamps. In case of continuous operation, we recommend using water cooling of the tube (small pump and water from a bucket). Technical data of ZVS 20A
  • Power supply: 12-48V
  • Max. Power: 1000W
  • Current: 20A
  • Current consumption at rest: 3.5A
  • Frequency: 85kHz

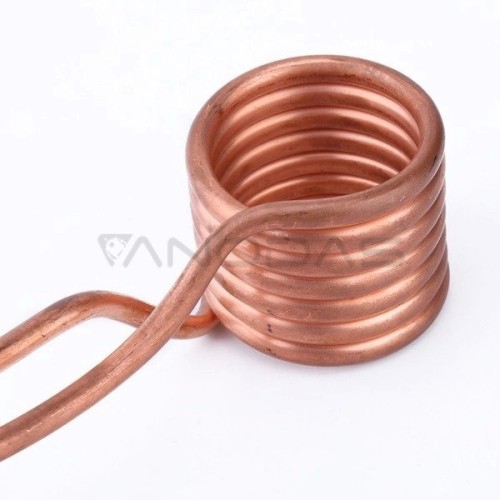

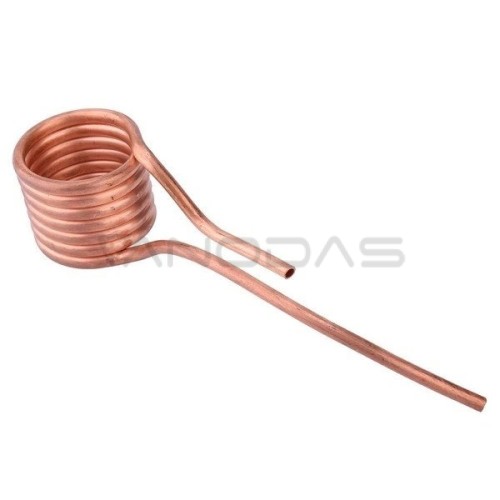

  • Coil Dimensions: Approx. 18 x 5 cm (L x W) internal diameter approx. 40 mm
  • Tile dimensions: 11 x 10 x 3.2 cm (L x W x H)
  • Tile weight: approx. 380g
  • Coil windings: 8
  • Impact on elements: steel - very good efficiency, (aluminium, brass, silver - higher supply voltage) - lower efficiency, gold - no heating
  • Non-cooperating metals: copper, gold
Main features:
  • Power and Efficiency: Maximum power of 1000W and current up to 20A guarantee efficient heating.
  • Flexible Power Supply: Compatible with power supplies from 12V to 48V, allows you to adapt to various energy needs.
  • Induction Technology: Uses electromagnetic induction for quick and efficient heating, while minimizing power loss.
  • Versatile Use: Perfect for soldering, heat treatment, and various industrial and hobby applications.
  • Simple and Stable Operation: Integrated control system ensures easy operation and reliability.
Important Tips:
  • Before starting, separate the spiral coils to avoid damaging the device.
  • For continuous operation, water cooling is recommended to ensure optimal performance and durability of the device.

Thanks to its solid construction and high-quality materials, the ZVS 12-48V Induction Furnace is a reliable and effective solution for a wide range of applications, ensuring users' satisfaction and durability for years.

Included
  • Induction furnace ZVS 12-48V - 1000W - 20A - 1 pc.
  • Coil - 1 pc.
Frequently Asked Questions (FAQ) Can I use this induction furnace to heat non-metallic items?

The ZVS 12-48V induction furnace is designed mainly for heating metal elements. Induction technology is not effective for non-metallic materials such as plastic or wood because it requires electrical conduction to generate heat.

How long can I use the stove without interruption?

In case of continuous use, we recommend using water cooling (e.g. a small pump and water from a bucket) to prevent the device from overheating. Thanks to this, the furnace can operate for a longer time without the risk of damage.

Can the furnace heat all metals?

The ZVS 12-48V induction furnace is very effective in heating steel elements. Other metals, such as aluminum, brass and silver, require a higher supply voltage for effective heating. Copper and gold are not heated effectively by this device due to their physical and electrical properties.

Can I adjust the heating power and temperature?

The furnace offers the ability to regulate power by changing the supply voltage in the range of 12-48V. However, it does not have direct temperature control, which means that the user must adjust the exposure time and supply voltage to achieve the desired element temperature.

Is the device easy to install?

Yes, the ZVS 12-48V induction furnace is designed for simplicity of installation and use. However, it is necessary to follow the instructions, especially when it comes to separating the spiral turns before starting the device, to avoid damaging it.

What safety features does the stove have?

The furnace has built-in thermal protection and is designed to work with external cooling systems to minimize the risk of overheating. It is also important that the user follows the recommendations for the correct connection and separation of the spiral turns to prevent damage to the device.
