YX-X804 Backup Battery Automatic Switching Relay Module

Product Code: AS1791
Availability: Temporarily Out Of Stock
9.00€
Ex Tax: 7.44€

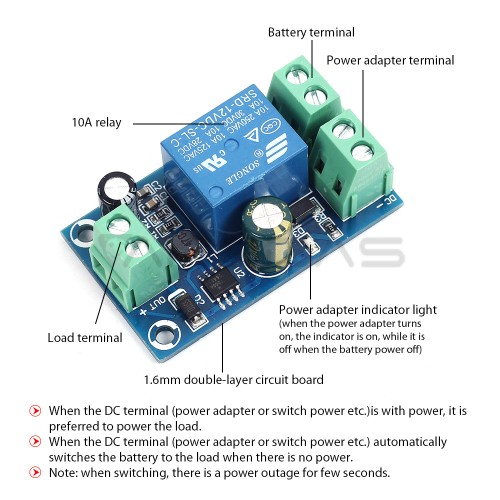

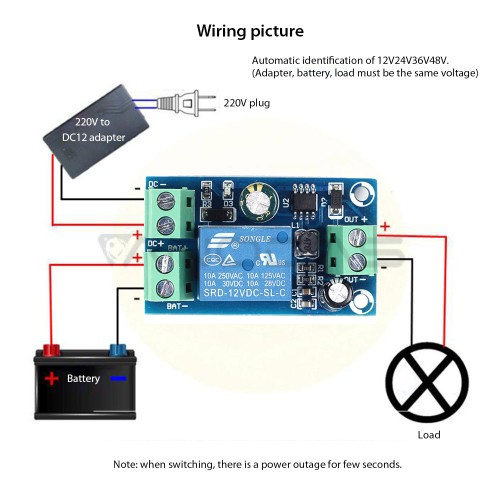

The relay module is designed for emergency power supply control. Works on a similar principle to UPS sources in the event of a loss of constant power, the module automatically switches the power source to the battery. Battery voltage can be from 12V to 48V.

Technical data and features:
  • The LED indicator shows the status of the module
  • Power supply: 12-48V DC
  • Supply voltage and current: 12V DC 10A
  • Dimensions of the device: 50x30x18mm
  • Screw connections ensure strong contact
