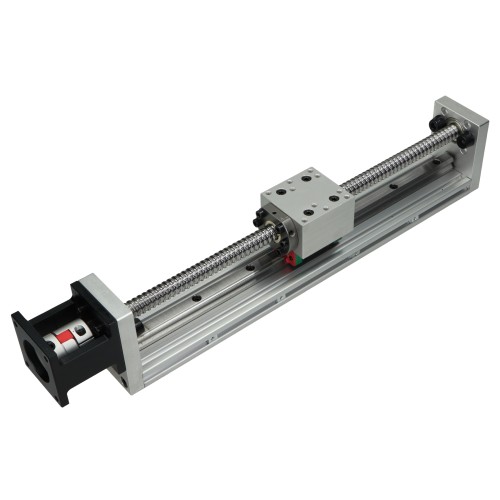

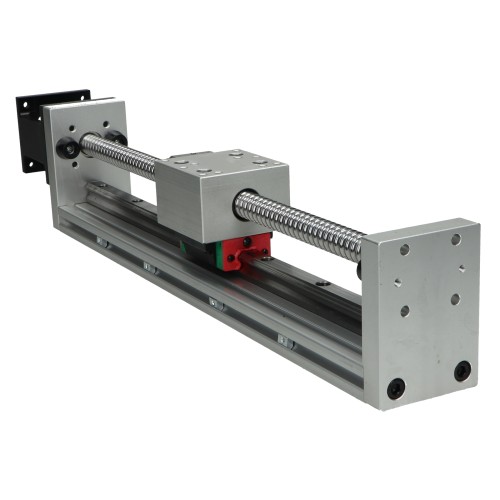

YR-HGWS60K SFU1605 linear table 300mm stroke

Ready-made linear modules are an excellent solution for implementing linear feed. The modules we offer are characterized by high positioning precision of +/- 0.03mm. The permissible maximum rotation speed of the screw is up to 3000 rpm, which gives a maximum linear feed speed of up to 15 m/minute.

Modules made on a profile rail are characterized by low price and high quality. The module's structure is based on a precise aluminum profile. A 15 mm high profile rail is responsible for the linear feed. The trolley moves on a HGH15mm trolley.

The drive is transmitted via a ball screw with a diameter of 16 mm and a pitch of 5 mm. The screw is supported on a double bearing on the drive side - the stepper motor and a single bearing on the supporting side.

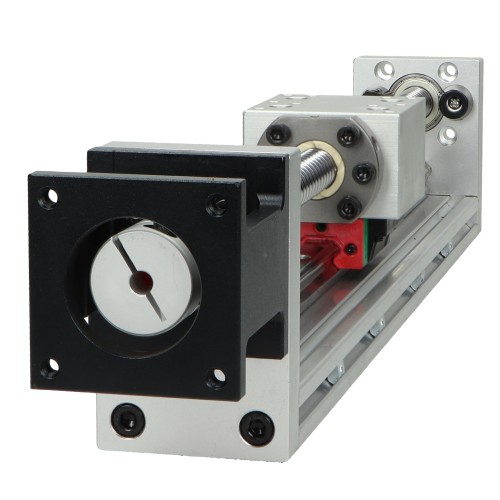

The table is adapted to mount a stepper, servo-step motor or a servo drive with a NEMA23 standard flange, i.e. 57x57mm.

The most common applications of linear modules are the Z axes of plasma cutters and PICK&PLACE robots. Other applications include: feed modules in production lines, saw bumpers and many other applications requiring fast and precise linear movement.

Using a linear table and a few simple automation elements, we can create a completely autonomous bumper positioned from a touch panel - we provide a free program.
