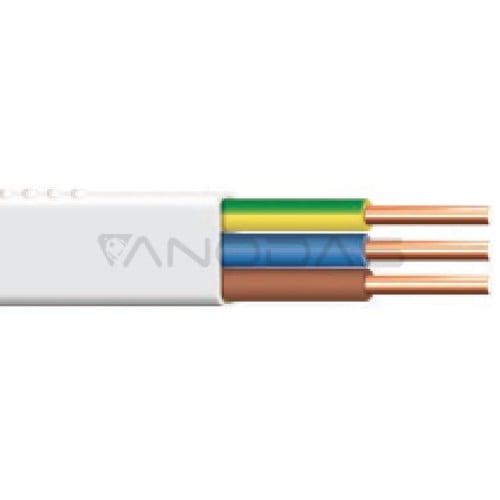

YDY PZO 450/750V 3x1.5 NKT installation cable

Brand: QC - Quality Control
Product Code: MX-YDY-PZO-3X1-5-NKT
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-07-25
3.00€
Ex Tax: 2.48€

Qty

Insulation color: white
Test voltage [kV]: 2
Rated insulation thickness [mm]: 0.8
Max. wire resistance at 20°C: 12.1
Permissible temperature of the conductor [°C]: 70
Maximum permissible core temperature in short circuit conditions [°C]: 160
Operating temperature [°C]: -40...+70
Lowest allowable temperature for laying the cable: -5
Lowest allowable cable storage temperature [°C]: -40
Minimum bending radius: 4d (smaller cable dimension)
Rated voltage [V]: 450/750
Shape: flat
Number and nominal cross-section of conductors [mm^%2%^]: 3x1.5
Rated tire thickness [mm]: 1.2
