XT60-PB connector - plug + straight socket - complete AMASS connector

Brand: AMASS
Product Code: ABC-10181
Availability: 5-8 business days
Planuojama gavimo data po užsakymo: 2025-05-12
2.70€
Ex Tax: 2.23€

Qty

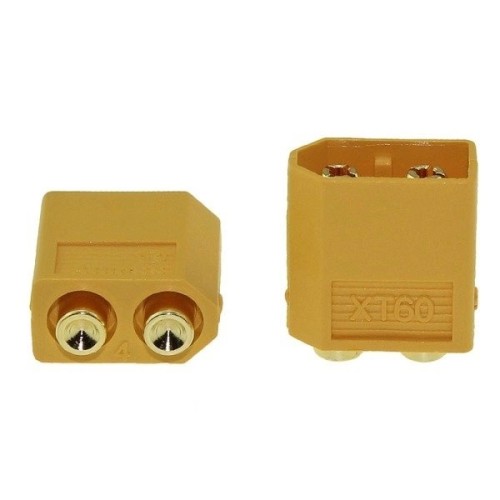

XT60-PB connector - plug + straight socket Description

Plug and socket type - XT60-PB from the manufacturer AMASS. High current and very reliable battery connection. Soldering for proper connection and protection with heat shrink tubing are required.

Technical data
  • The design of the connectors allows the use of wires with a cross-section of 1 to 5 mm2.
  • Contacts with very low connector resistance and at the same time large connection area
  • Compact connector design
  • Gold-plated high-current contacts (based on 3.5mm2 gold).
  • Housing color: yellow
  • Set weight: 7.5g
  • Continuous current: 65A - momentary 80A
Included
  • - 1 set
