XT30 plugs - MF connector mini plug and high-current socket

Brand: AMASS
Product Code: ABC-6428
Availability: 5-8 business days
Planuojama gavimo data po užsakymo: 2025-05-09
2.60€
Ex Tax: 2.15€

Qty

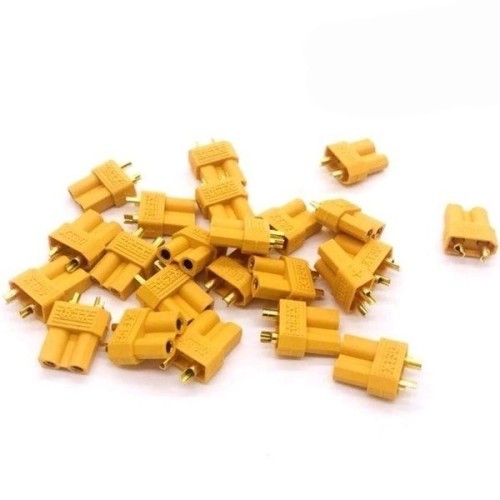

XT30 connector - plug, high-current connector - set of connectors Mini high-current connector (plug and socket) type XT30.

Mini dimensions and high operating current allow you to replace various plugs (DEAN, JST XT60) with this one. Connector intended for connections in smaller models.

The XT30 plug and socket is a high-current, high-quality connector with high electrical and insulating parameters.

The XT30 connector is a very reliable battery connection, ideal for modeling work and power systems used in electronics.

XT30 is characterized by minimal connector resistance and a large contact surface, making it ideal for systems with high current consumption and small dimensions.

The non-sparking gold-plated connector is widely used.

Soldering for proper connection and protection with heat shrink tubing are required.

Mini Connector Features:
  • Contacts with very low connector resistance and very large connection area.
  • Gold-plated high-current contacts.
  • Easy to connect and disconnect.
  • Covers made of non-flammable material.
  • Soldering is required for proper connection.

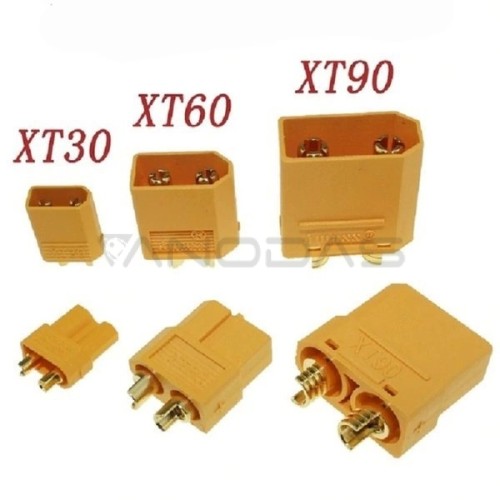

  • Dimensions comparison with XT60 and XT90 plug:
  • XT30 is one of the latest plug designs - high current with small dimensions is its strong point.
  • Now you can replace most of your plugs with the XT30 plug - for JST, DEAN, and others.
  • The special construction of the connector on 2 mm gold allows it to work with higher and lower currents, and also protects against reverse plugging.

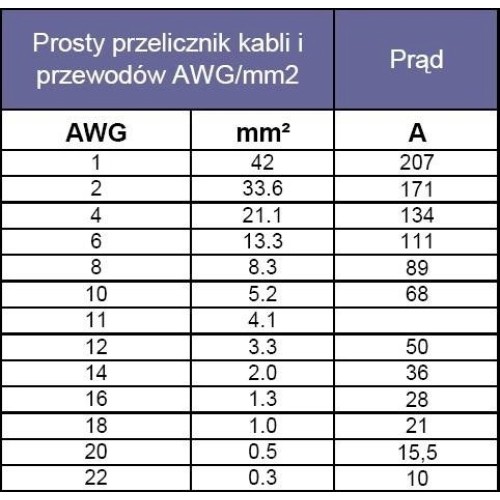

  • The design of the connectors allows the use of wires with a cross-section of 16-20 AWG (from 0.5 to 1.3 mm2) - AWG table.
XT30 technical data:
  • Plug dimensions:
    • Male = 10x10x5 mm
    • Female = 11.5 x 10 x 5mm
  • Wire cross-section: 16-20 AWG (from 0.5 to 1.3 mm2)
  • Continuous current: 20A - momentary 30A
  • Set weight: 2g
Included

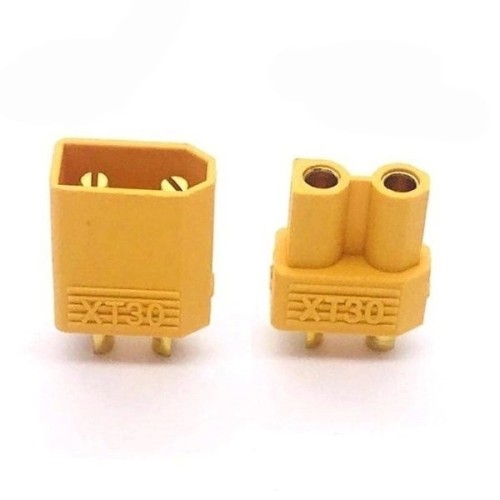

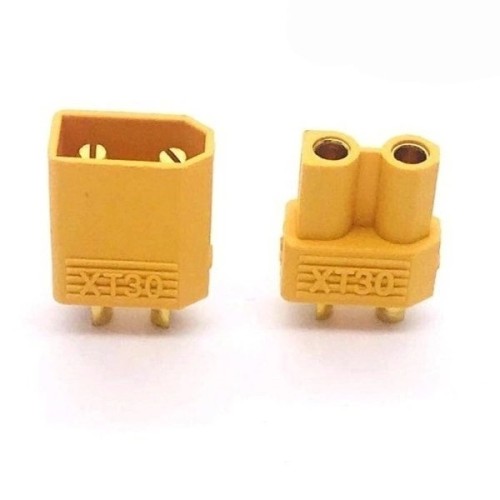

  • XT30 plug - M mini plug connector - 1 pc
  • XT30 plug - F connector mini socket - 1 pc
Additional information

Do you want to know more about plugs used in modeling - click here -> Guide to plugs and connectors used in RC modeling
