XL830L multimeter - LCD digital multimeter with backlight

Product Code: ABC-11785
Availability: Temporarily Out Of Stock
13.20€
Ex Tax: 10.91€

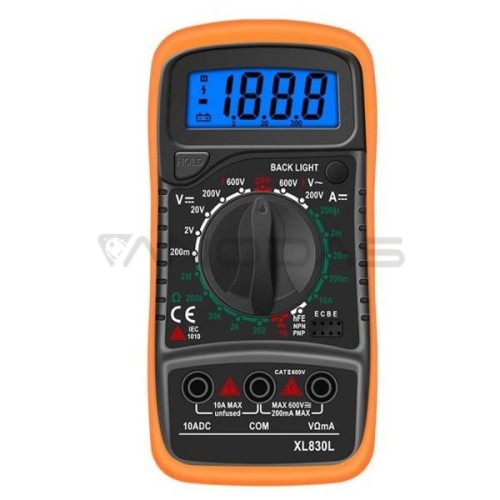

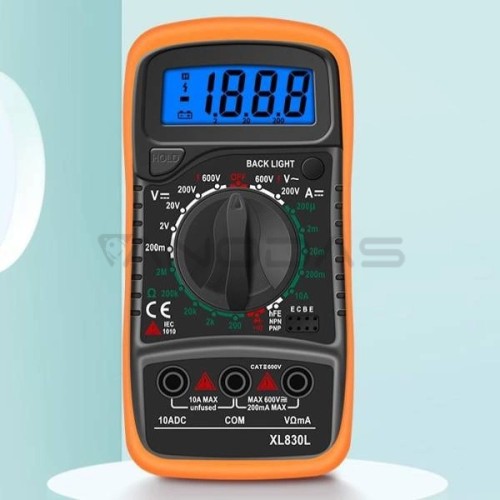

XL830L Digital Multimeter with LCD - High Level Measurement

The XL830L is a handy and budget universal meter, perfect for a workshop, service center or car.

It enables measurement of high ranges of AC/DC current and voltage and measurement of small DC currents.

Thanks to it, we can measure resistance, diode forward voltage, circuit continuity or hFE of transistors. Multimeters are available in various specifications.

XL830L - Meter Features
  • Circuit continuity check
  • resistance measurement
  • measurement of forward voltage of diodes
  • DC current measurement
  • DC and AC voltage measurement
  • measurement of transistors
  • backlight
  • remembering the result
Technical data

DCV

  • 200m/2/20/200[V] +/-(0.8%+/- 2)
  • 600V +/-(0.8%+/- 2)

ACV

  • 200V +/-(0.8%+3)
  • 600V +/-(1.2%+3)

DCA

  • 2mA/20mA +/-(1.2% +/-2)
  • 200mA +/-(1.4% +/-2)
  • 10A +/- (2% +/-2)

OHM

  • 200ohm +/-(1.0%+/-2)
  • 2k/20k/200k/2M[ohm] +/-(0.8%+/-2)
  • Transistor test: yes
  • Auto switch off: no
  • Diode test: yes
  • Circuit continuity signaling: yes - buzzer
  • LCD display: yes
  • HOLD function - measurement recording
  • Display backlight function
  • Battery: 9V 6F22
  • Display range: 1-999
  • Display size: 19x40mm

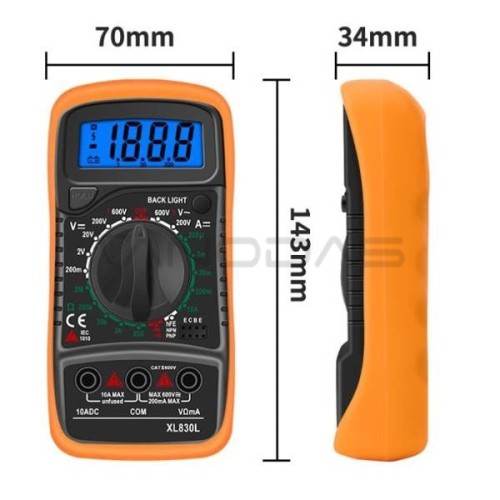

  • Dimensions: 140x70x33mm

Developed in accordance with the IEC-1010 standard for electronic measuring instruments with CAT II / CAT III overvoltage and contamination category 2.

Included
  • Brand new XL830L digital meter

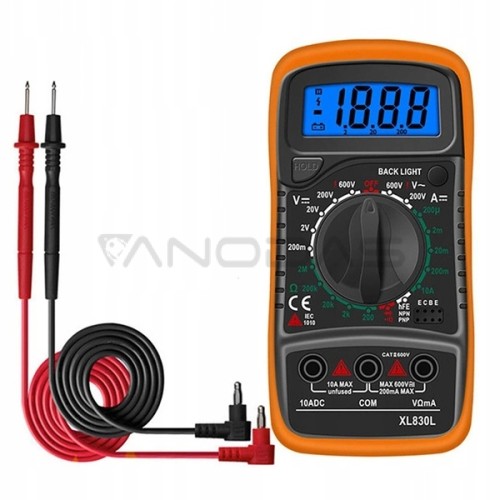

  • A set of test leads
  • Instructions in English
