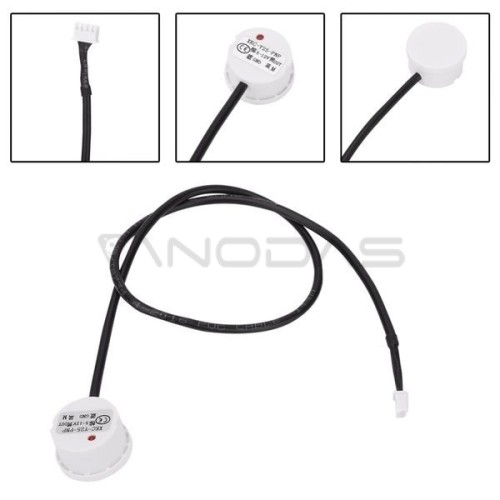

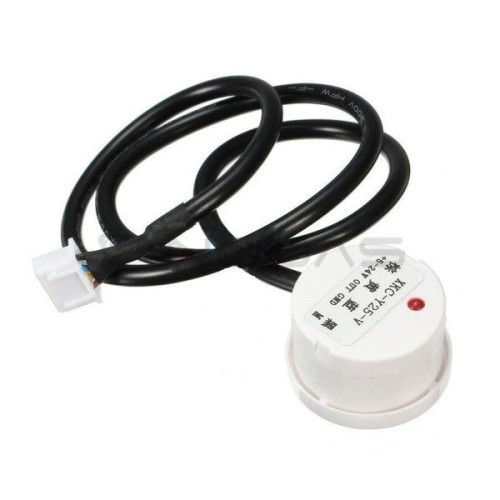

XKC-Y25-V Inductive Liquid Level Sensor - Non-contact and Waterproof
XKC-Y25-V Inductive Sensor - for measuring liquid level
The XKC-Y25-V inductive sensor is an advanced liquid level measurement device that does not require direct contact with the measured substance.
Thanks to the use of induction technology, it enables precise detection of fluid levels through the vessel walls.
This is an ideal solution for industries that require keeping processes clean and hygienic, such as the food, pharmaceutical or chemical industries.
XKC-Y25-V technical data- Range: 0-20 mm
- Input voltage (InVCC): DC 5-12V
- Current: 5mA
- Output voltage (high level): InVCC (equal to input voltage)
- Output voltage (low level): 0V
- Output current: 1-100mA
- Response time: 500ms
- Operating temperature: 0 - 105°C
- Tank thickness: 0 -13 mm
- Humidity: 5-100%
- Material: ABS
- Protection: IP67
- Cable length: ∼ 49cm
- Dimensions (diameter x height): 28 x 17mm

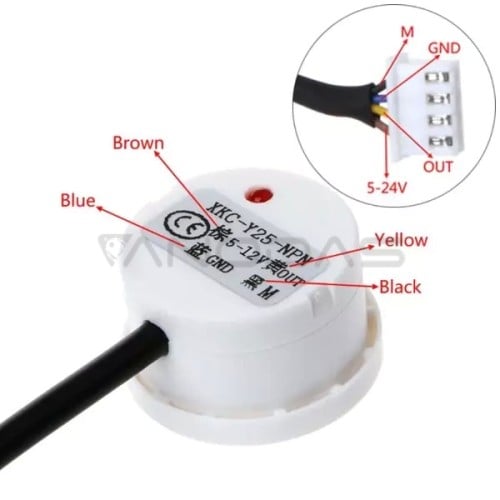

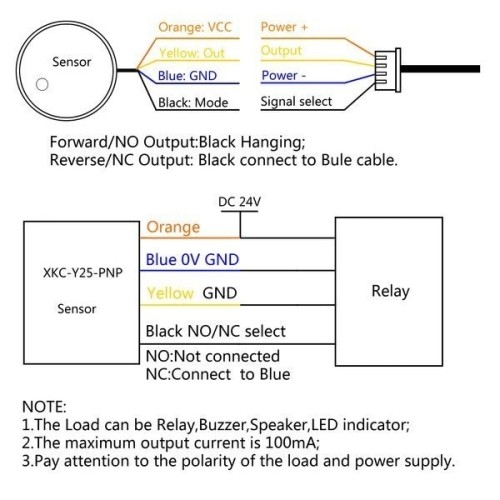

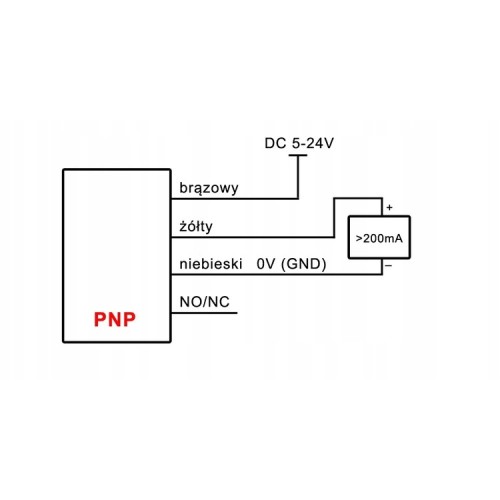

- Brown - VCC (5-12V)
- Yellow - Sensor output (VCC)
- Blue - GND
- Black - Output signal logic inversion - (when connected to GND)
- Non-contact Liquid Level Measurement: Induction technology allows measurement without the need for physical contact with the liquid, ensuring a higher level of hygiene and minimizing the risk of product contamination.
- Highly Versatile Applications: The sensor is suitable for working with various types of liquids, including aggressive chemical substances, so it is widely used in many industries.
- Easy Installation and Configuration: Simple installation outside the vessel and easy setting of sensor parameters make it very convenient to use.
- Long-term Reliability: Made of high-quality materials guarantees a long service life of the device even in difficult industrial conditions.
- Waterproof and Weather Resistant: The sensor has a high degree of protection (IP67), which makes it resistant to water and other weather conditions.
- High Measurement Precision: Advanced induction technology ensures accurate detection of liquid level changes, which is crucial for many manufacturing and control processes.
How does an inductive liquid level sensor work? An inductive sensor detects the presence of liquid through the vessel walls by using changes in the magnetic field caused by different media.
Can the XKC-Y25-V sensor measure the level of all types of liquids? Yes, it is universal, but it achieves the best results with liquids that do not contain large amounts of metals that can affect the measurement.

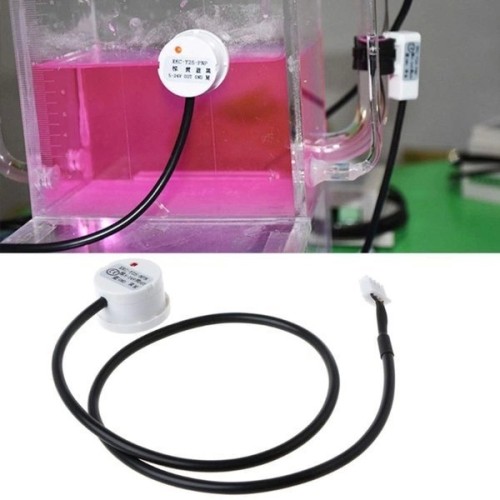

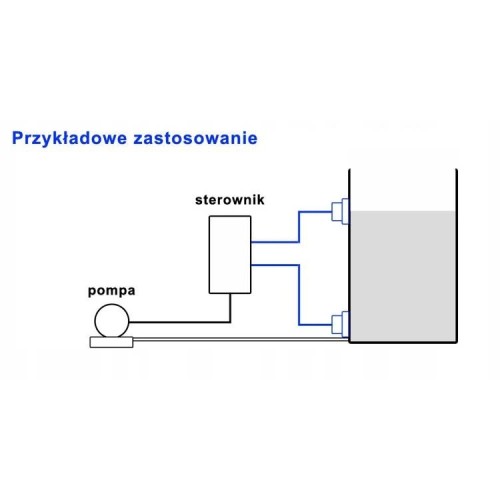

What are the sensor installation requirements? The sensor should be mounted outside the vessel, in a place where changes in the liquid level are expected, with an appropriate distance from the vessel walls.
Is the device resistant to external conditions, such as rain or high humidity? Yes, thanks to the IP67 protection level, the sensor is waterproof and resistant to various weather conditions.
What is the measurement accuracy of the sensor? Accuracy may vary depending on the type of liquid and conditions, but in general the device offers high measurement precision.
Does the sensor require frequent calibration? No, the sensor has been designed to minimize the need for calibration, but checking and adjusting settings regularly is recommended.
What materials were used to produce the sensor? The sensor is made of high-quality materials resistant to corrosion and chemicals, ensuring its long-term reliability.
