WS2812-24 RGB LED Ring Lamp - 93mm - DFRobot DFR0888-24

Brand: Dfrobot
Product Code: AN-21032
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
19.10€
Ex Tax: 15.79€

Qty

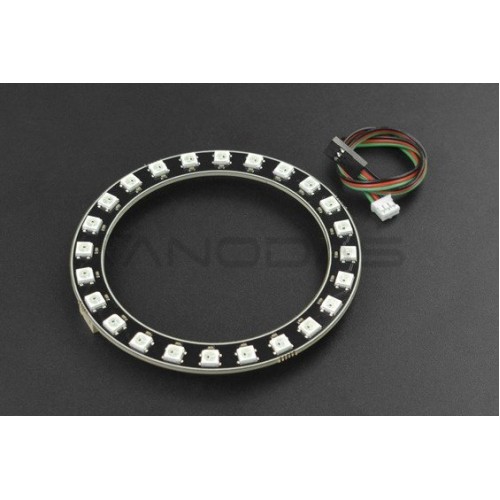

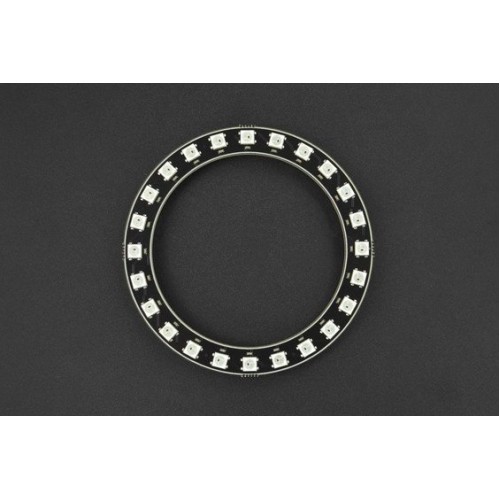

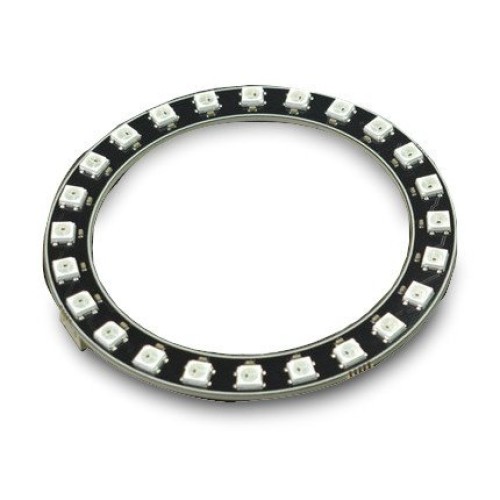

The ring consists of 24 WS2812 RGB LEDs. The LEDs are placed at equal distances on a circle with an outer diameter of 93 mm. Together they consume up to 100 mA of current. The ring is powered from 3.3 V to 5 V. The Gravity cable included in the kit is used to connect to, for example, an Arduino.

Main features:
  • WS2812 different colored LEDs
  • 1-wire bus control
  • Multiple LED rings can be connected in series
  • Supports Mind+, MakeCode, Arduino IDE development platforms
Specification:
  • Supply voltage: 3.3 V to 5 V
  • Maximum current consumption: <100 mA
  • Interface type: PH2.0-3P
  • Diode: WS2812
  • Number of LEDs: 24 pcs
  • Number of colors: 16 million
  • Inner ring diameter: 72 mm
  • Outer ring diameter: 93 mm
Set includes:
  • RGB LED Ring WS2812-24 - DFRobot DFR0888-24
  • 1 x Gravity cable 30 cm
