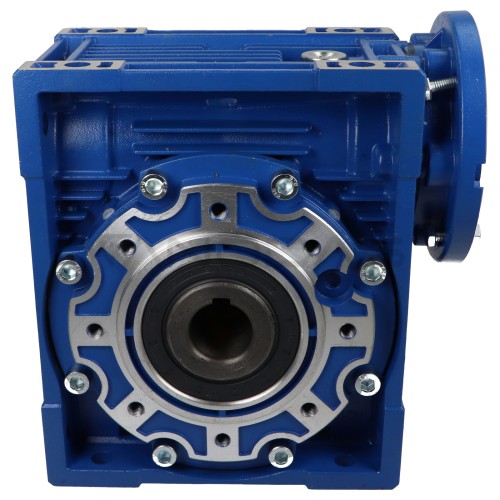

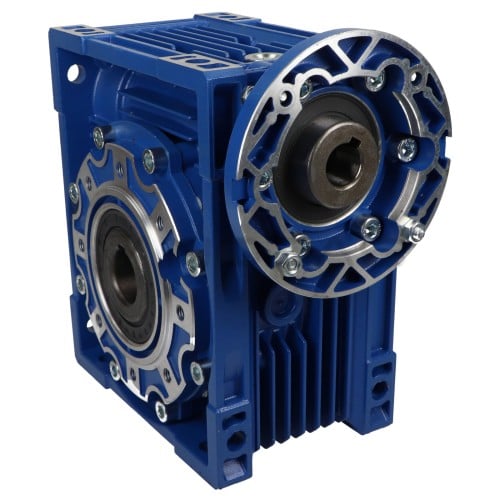

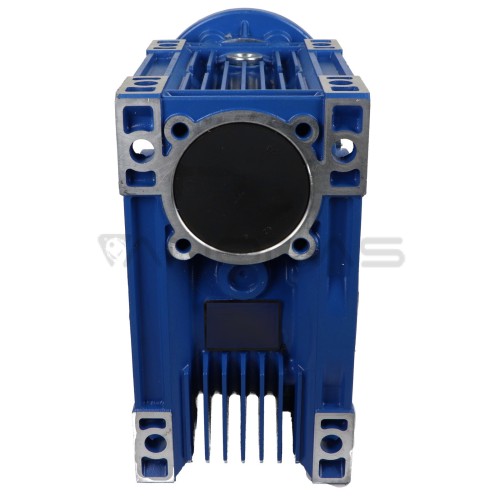

Worm gear, ratio 100:1 RV75-100-80B14

Brand: QC - Quality Control
Product Code: MX-IW-RV75-100-80B14
Availability: Temporarily Out Of Stock
181.80€
Ex Tax: 150.25€

The worm gear with a gear ratio of 100:1 RV75-100-80B14 is a product with an impressive mechanical size of 75, it can be used as a replacement for NMRV, TM, MRV and other gears of the same size. Its length is 120 mm and the diameter of the d3 flange is 120 mm, which allows for effective transmission of rotation. The gear ratio is 100:1, making this gearbox an excellent choice for applications requiring a significant increase in torque. The engine axis that cooperates with this gearbox should have a diameter of 19 mm, and the output shaft diameter should be 28 mm, which allows for a solid connection and effective power transmission. The overall dimensions of the gearbox are 120 mm long, 112 mm wide and 246 mm high. The gear housing is made of aluminum, which allows for low weight, and is also protected with an additional layer of plastic to protect against corrosion. Key components such as the steel screw and bronze worm wheel ensure durability and reliability in a variety of operating conditions. The gearbox allows for various mounting methods, including using a B14 flange.


Width B [mm]: 112
Gear ratio: 100:1
Length L [mm]: 120
Flange diameter d3 [mm]: 120
Height H [mm]: 2.46
Mechanical size: 50
Engine axis diameter [mm]: 19
Output shaft diameter [mm]: 28
