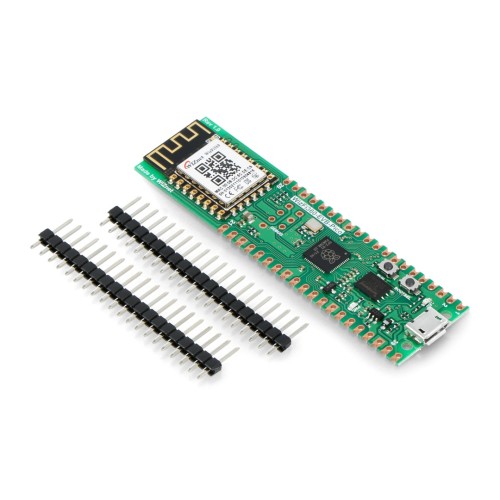

WizFi360-EVB-Pico - board with RP2040 microcontroller and WiFi communication - WIZnet

Module manufactured by WIZnet, equipped with Raspberry Pi RP2040 microcontroller - dual-core ARM Cortex M0+ clocked at 133 MHz, with 264 kB of RAM and external Flash Quad-SPI memory with eXecute In Place (XIP). The manufacturer also used the WizFi360-PA system, which extends the functionality of the board with wireless WiFi communication - it provides a wireless 2.4 GHz band and is compatible with 802.11 b/g/n standards and supports SoftAP, Station and SoftAP+Station modes.

Main features:

• Raspberry Pi RP2040 microcontroller and WiFi wireless communication system
• Support Station / SoftAP / SoftAP+Station operating modes
• Data pass-through and AT command data transfer support
• Support AT serial command configuration
• Support TCP Server / TCP Client / UDP working mode
• Support operation channel configuration from 0 to 13
• Support 20 MHz / 40 MHz auto bandwidth
• Supports WPA_PSK / WPA2_PSK encryption
• Support built-in unique MAC address and user-configurable address

Specification:

• Wireless communication type: WiFi
• Band: 2.4 GHz
• Supported standard: 802.11 b/g/n
• Serial port baud rate: 600 bps to 2 Mbps with 16 common values
• Support up to 5 TCP/UDP connections
• Obtaining an IP address automatically from a DHCP server (station mode)
• DHCP service for wireless LAN clients (AP mode)
• DNS support for communication with servers by the domain name
• Keep-Alive support for TCP connection monitoring
• Ping support to monitor network status
• Supports firmware update via UART Download / OTA (via WLAN)

Set includes:

• WizFi360-EVB-Pico - board with RP2040 microcontroller and WiFi communication - WIZnet - 1 piece
• Goldpin strip - raster 2.54 mm - 2 pieces
