Wio Terminal Helium Monitor Kit - Seeedstudio 114992990

Brand: Seeedstudio
Product Code: AN-22414
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-11

82.00€
Ex Tax: 67.77€

Qty

Add to Wish List

Description Product Delivery

Wio Helium Monitor is a kind of plug-and-play LongFi hotspot monitor for the Helium network. With its help, you can check if the hotspot is connected to the LAN and has access to the Internet. In conjunction with the Grove-Wio-E5 and an active Watchium Silver/Gold subscription, it is also possible to verify that the LoraWAN hotspot (including Witness) is working properly. In case of problems with Internet / LAN communication, the device will report the problem via LoRaWAN.

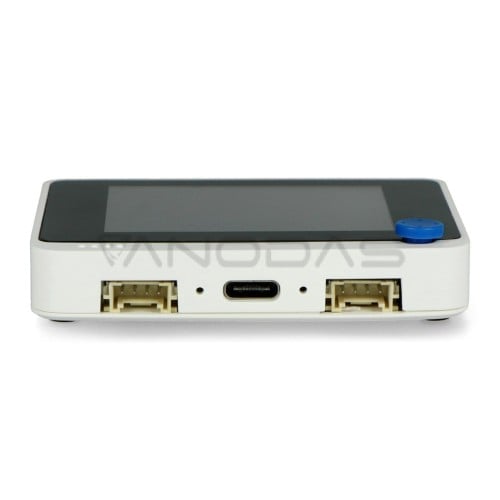

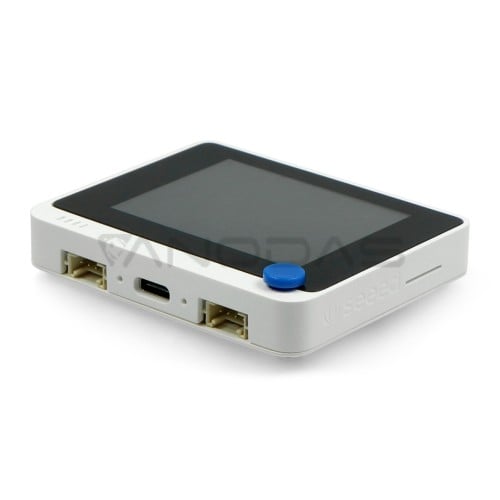

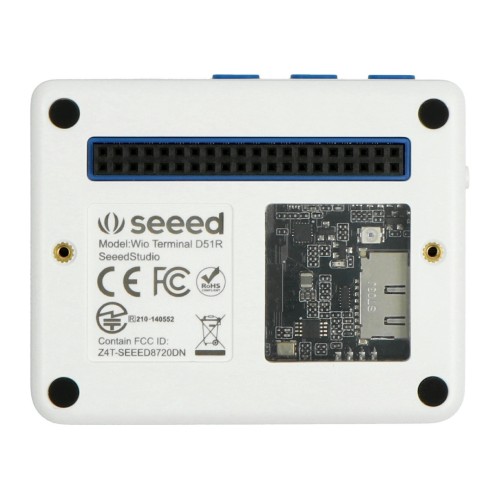

The Wio terminal is an Arduino and Micropython-compatible device. It was based on the ATSAMD51 microcontroller and the Realtek RTL8720DN wireless communication chip. The clock speed of the processor is 120 MHz (with the possibility of increasing to 200 MHz). The Realtek RTL8720DN chip allows Bluetooth and WiFi communication, providing a framework for IoT projects. The Wio terminal has been integrated with a 2.4" LCD display, has a built-in IMU sensor (LIS3DHTR), microphone, buzzer, microSD card slot, light sensor and infrared emitter (IR 940 nm).

Main features:

Allows you to monitor your Helium hotspot remotely in real-time
Simple connection, compact size make it easy to take the device anywhere
Wio Helium Monitor reports information locally and remotely using the Watchium app
A detected problem will trigger a local alarm sound
Network and hotspot information is displayed directly on the Wio terminal screen

Specification:

Chip: ATSAMD51P19
Processor: ARM Cortex-M4F 120MHz
RAM: 192 KB
Maximum processor clock speed: 200 MHz
External Flash memory: 4 MB
Operating temperature: -40 °C to 85 °C
Screen resolution: 320x240px
Screen diagonal: 2.4"
Display driver: ILI9341
Wireless communication chip: Realtek RTL8720DN
KM4 CPU: ARM Cortex-M4F 200MHz
KM0 CPU: ARM Cortex-M0
WiFi: 802.11 a/b/g/n/1x1, dual-band 2.4 GHz & 5 GHz
Bluetooth: BLE 5.0
Accelerometer: LIS3DHTR
Microphone: 1 V to 10 V / -42 dB
Loudspeaker: ≥ 78 dB at 10 cm 4000 Hz
Light sensor: 400 nm to 1050 nm
Infrared emitter: 940 nm
MicroSD card slot: up to 16 GB
GPIO: 40-pin (compatible with Raspberry Pi)
Supported interfaces: SPI, I2C, I2S, ADC, DAC, PWM, UART
Grove: 2 (multifunctional), digital, analog, I2C and PWM
ZKP: 20-pin
USB type C: Power and OTG

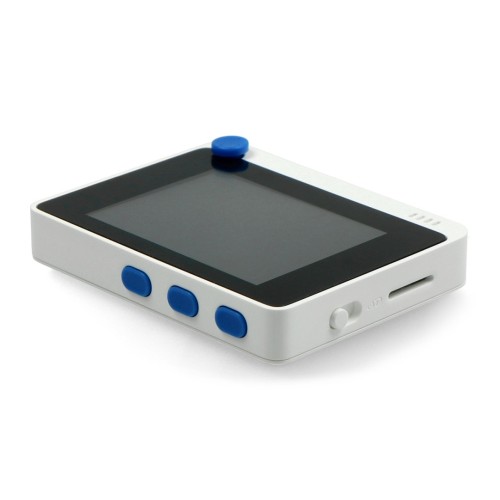

Switches and Buttons:

5-way switch
power/reset switch
3x user-defined button

Mounting: built-in magnets and two mounting holes
Material: ABS+PC
Dimensions: 72 x 57 x 12 mm

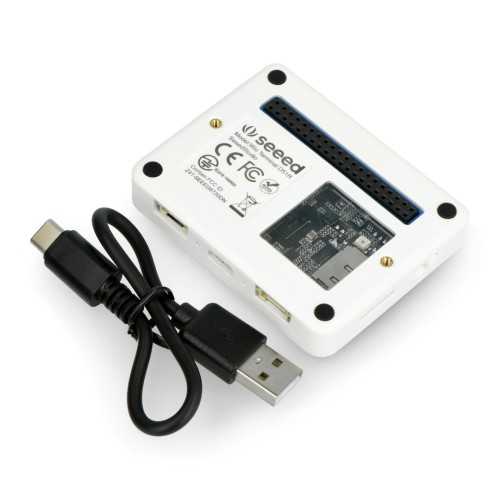

Set includes:

Terminal

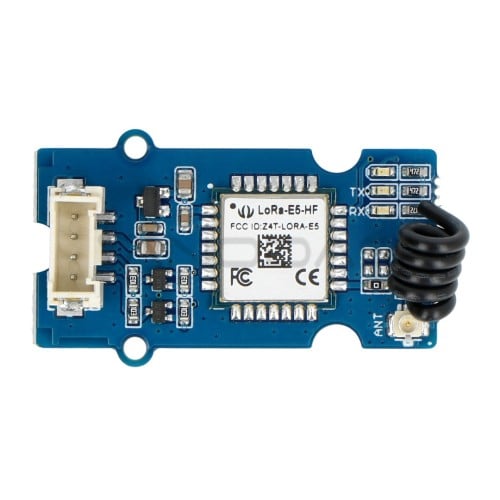

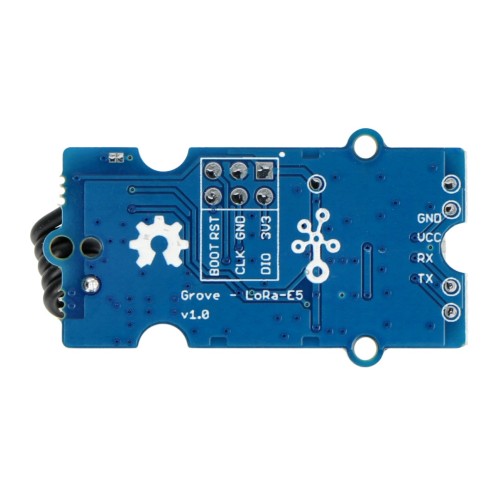

Grove Wi-E5
USB Type-C cable
