Wio Lite AI development kit - STM32H725AE + display and camera - Seeedstudio 110991524

• Wio Lite AI board based on STM32H725AE, high-performance ARM Cortex-M7 32-bit 550 MHz microprocessor
• Equipped with 16 MB SPI NOR Flash memory and 8 MB PSRAM
• Includes a 2.8” resistive LCD touchscreen with a resolution of 240x320px and a 2 millionth DCMI camera (OV250)
• Supports wireless connectivity with 2.4 GHz / 5 GHz dual-band Wi-Fi and Bluetooth 5.1 connectivity
• It has one USB type C connector for power supply and one slot for a memory card in microSD format (for additional storage)
• There are 6 analog pins and 14 digital pins, one UART port, one I2C, one SPI, one CAN and SWDIO port is also available

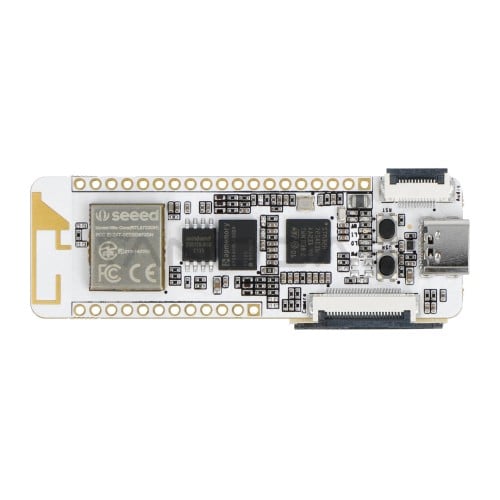

• Wio Lite AI board
• MCU: STM32H725AE ARM Cortex-M7 32-bit 550 MHz
• PSRAM memory: 8 MB
• Flash SPI NOR memory: 16 MB
• Additional memory: microSD card slot
• WiFi communication: 2.4 GHz / 5 GHz dual-band
• Bluetooth communication: BLE 5.1
• 40 pin FPC port for connecting LCD RGB565 or RGB888
• 24 pin FPC port for connecting a DCMI camera
• 12 pin FPC port for connecting an audio device

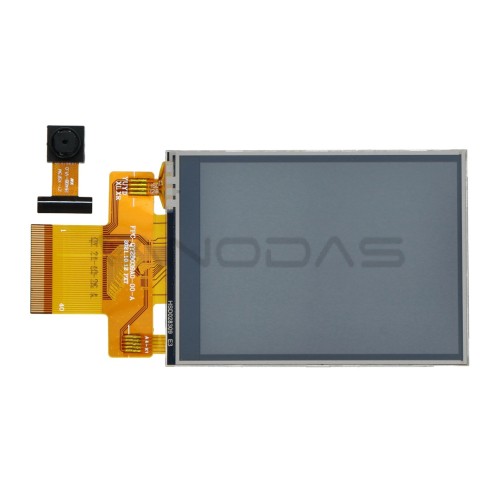

• Display
• Type: LCD RGB
• Diagonal: 2.8”
• Resolution: 240x320px
• Touch control: yes
• Camera
• Sensor: OV2640
• Connector: DCMI
• Power parameters: 5 V / 3 A using USB Type-C port

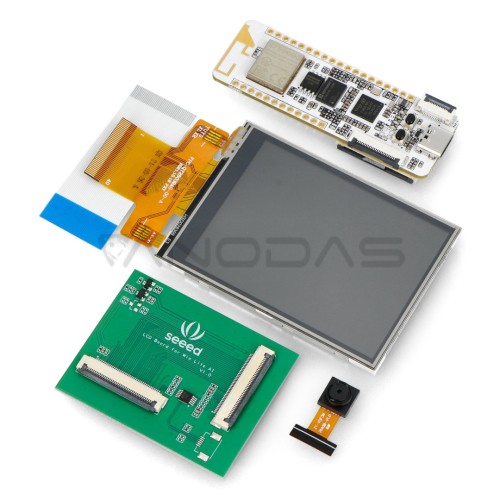

• Wio Lite AI development board
• OV2640 camera module
• RGB LCD display

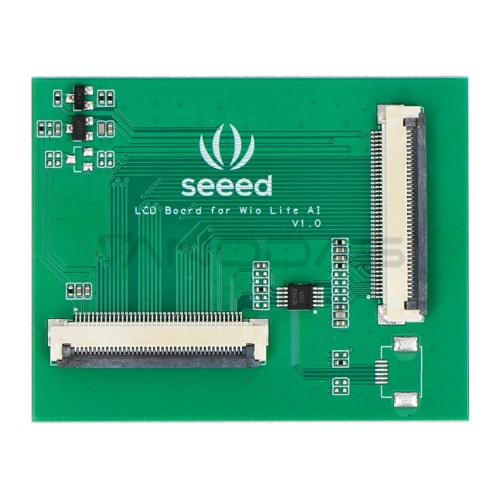

• Display adapter
• Ribbon cable for display
