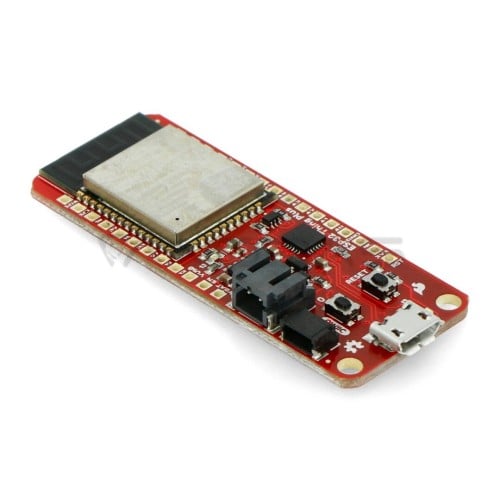

WiFi module Thing Plus, ESP32 WROOM, SparkFun WRL-15663

The SparkFun module is equipped with ESP32 WROOM and ESP32-D0WDQ6 for wireless communication using WiFi and Bluetooth. Thing Plus for communication uses Qwiic Connect system based on I2C interface, thanks to the Qwiic Connect system we can easily connect the module to the system without soldering. The module offers a huge potential in terms of IoT systems and can be used to control LEDs as well as to transfer data to a specific platform. Thing Plus can also be programmed using Arduino IDE and a special library.

Module outputs:

• 13x ADC converter
• 3x UART (only two outputs are configured by default, one of the outputs is used for loading and debugging)
• 3x SPI (by default only one output is configured in Arduino IDE)
• 2x I2C (by default only one output is configured in Arduino IDE)
• 2x DAC converter channel
• 16x PWM output
• 8x capacitive touch controller
• 1x Hall sensor
• 1x CAN interface
• 1x SD/SDIO/MMC memory controller
• 1x microUSB connector
• 1x JST connector 2.0 mm
• 1x Qwiic connector


Specification:

• Supply voltage: 3 V to 3.6 V
• CPU: Xtensa LX6 32-bit
• Clocking: up to 240 MHz
• Memory:
• 520 kB of SRAM
• 16 MB Flash memory
• WiFi standard: 802.11b/g/n
• Bluetooth operating modes: classic and BLE
• Connectors:
• GPIO - 21 pin
• Accelerating the encryption: AES, SHA2, ECC, RSA-4096
• Dimensions: 58.42 x 22.86 mm


Useful links:
Manufacturer website
Manual
