WiFi module ESP8266 ESP12 Wemos D1 mini V2 + Micro USB programmer CH340

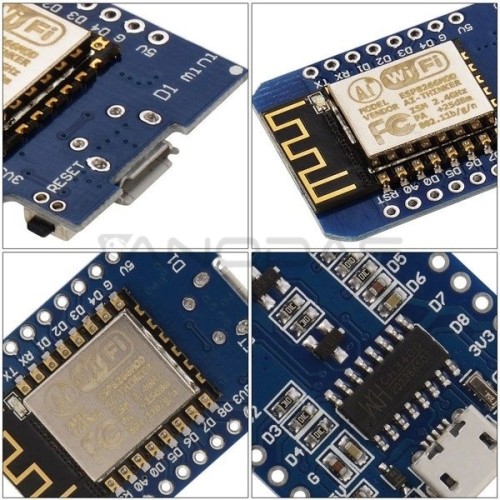

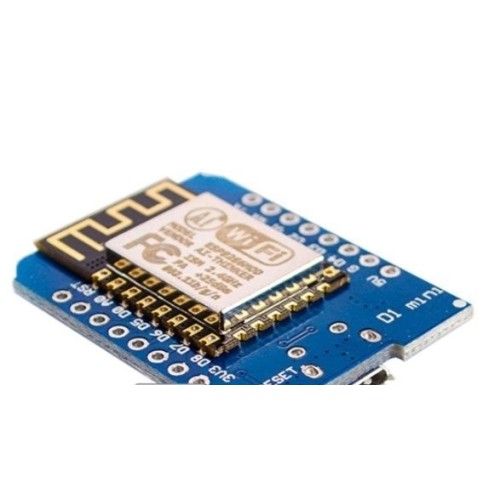

The WeMos D1 MINI module is based on the ESP12 chip and has 11 GPIO pins. It works on the Wifi 802.11 b/g/n standard at 2.4 GHz.

This device can be used as a converter enabling the connection of a microcontroller to Wi-Fi or as a separate and independent controller (stand-alone device).

ESP12 has 4MB of Flash memory. It is possible to program the module using LUA scripts, Arduino IDE and AT commands.

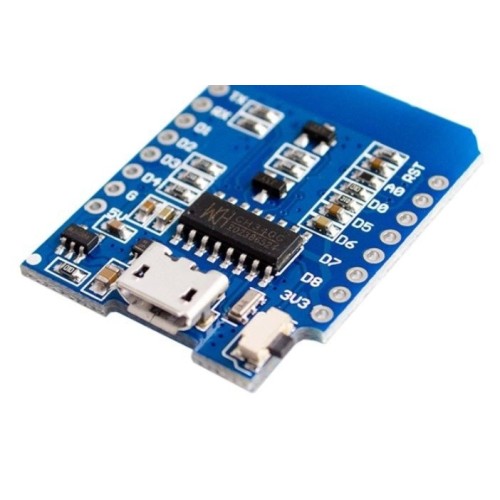

The board has a soldered CH340 programmer (driver available for download below) and a Micro USB connector, so we do not need any additional elements to program the module.

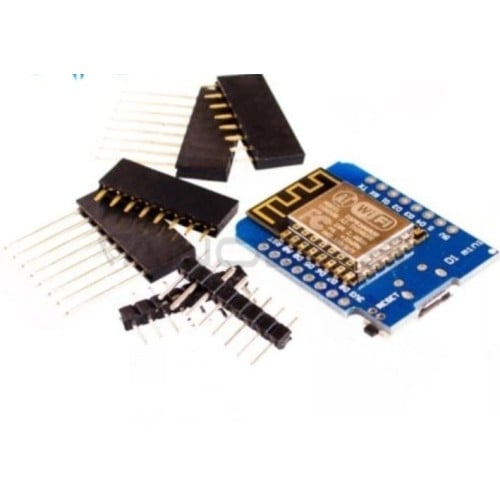

The set includes 3 types of gold connectors for soldering: 2x gold strip connector, 2x short gold socket, 2x gold extension socket.

Our offer includes a dedicated OLED 20126 display for use with the ESP module in the form of a shield. This makes connecting and implementing the display into the project even easier and faster.

• Frequency: 2.4 GHz
• WiFi standard support: 802.11 b, g, n
• Modes of operation:
  • AP (Access Point)
  • STA (standalone)
  • AP+STA
• Security:
  • WPA
  • WPA2
• AT commands
• Pinouts:
  • 9 x GPIO - digital inputs/outputs
  • 1 x ADC input - digital-to-analog converter
  • 1 x UART (TX, RX) - for communication, e.g. with Arduino
• Supply voltage: 5V - built-in voltage stabilizer
• Power consumption at rest: Mon. 10µA
• Assembly: SMD/THT:
  • Hole diameter: 0.9 mm
  • Pin pitch: 2 mm
• It has an antenna on the PCB
• Shielded module
• Built-in RESET button
• Dimensions: 26 x 34 mm

• ESP8266 ESP-12 WiFi module - WeMos D1 MINI - 1 pc.

• ESP8266 Wiki Page
• Sample Arduino program
• Arduino program on ESP-01 (also works with all ESP modules)
• ESP8266 Community Forum
• Comparison of ESP8266 modules
• CH340 controller
