WiFi ESP8266 HAT with LCD 1.14'' 240x135px display for Raspberry Pi Pico - SB Components SKU21888
Brand: SB components
Product Code: AN-20404
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
Product Code: AN-20404
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
Ex Tax: 24.75€

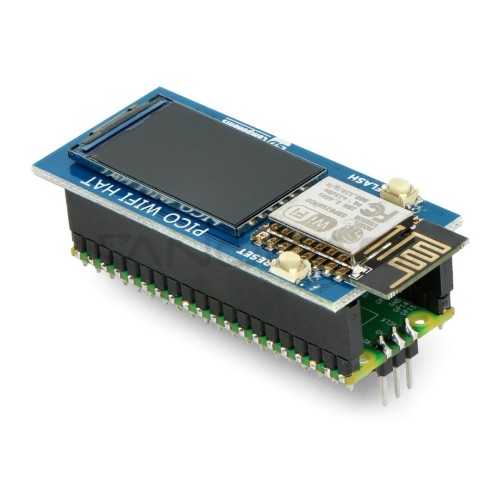

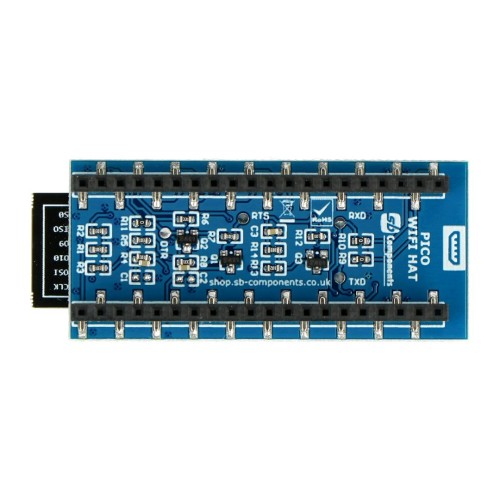

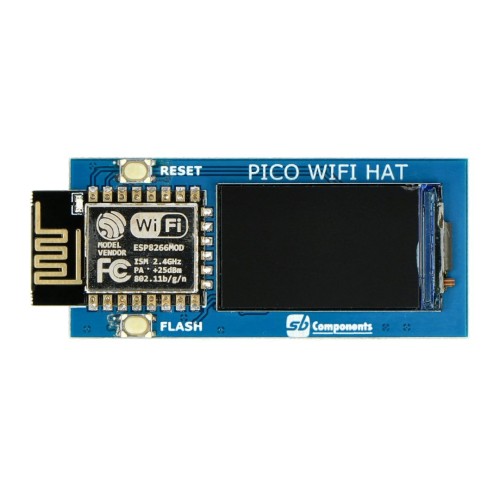

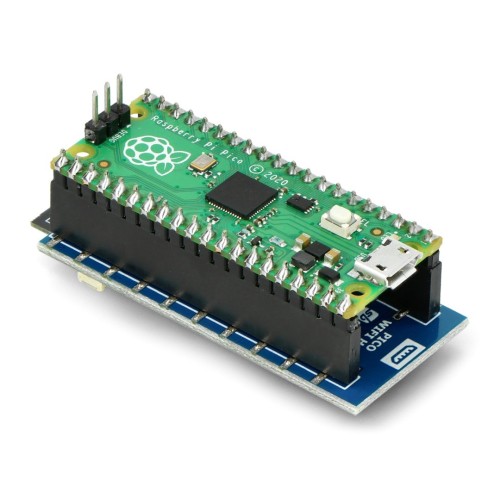

The overlay created by SB Components allows extending the Raspberry Pi Pico module with wireless WiFi IEEE 802.11 b/g/n communication via ESP8266 chip. The chip can be programmed using AT commands and supports TCP/UDP communication protocol. The overlay is also equipped with a small 1.14" LCD screen with a resolution of 240x135px, which displays 65k colors in an RGB color palette. The screen is based on the ST7789 chip and uses the SPI interface for communication.
Main features:
Main features:
- Based on the ESP8266 module
- Standard Raspberry Pi Pico 40-pin GPIO socket
- Supports three WiFi modes STA, AP, STA+AP, built-in LWIP protocol, supports TCP / UDP communication
- 2 buttons Raspberry Pi Pico
- Operating voltage: 3,3 V
- WiFi chip: ESP8266
- WiFi communication: UART
- UART baud rate: 115200 bps
- WiFi standard: IEEE 802.11 b/g/n
- WiFi operating frequency: 2.4 GHz
- Antenna: PCB
- Display chip: ST7789
- Display diagonal: 1,14"
- Resolution: 240x135px
- Number of colors: 65k RGB
- Display communication: SPI
- Button: 2x
- Dimensions: 55 x 25 mm
