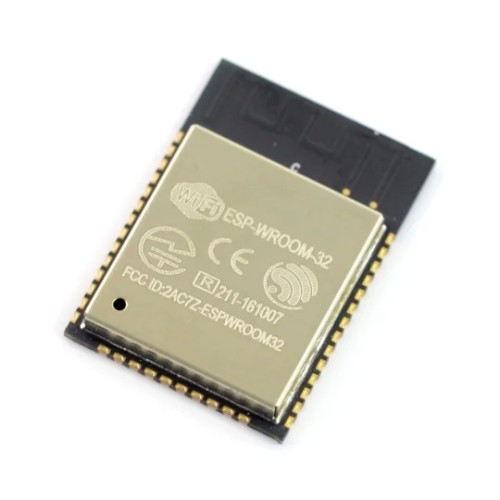

WiFi + Bluetooth system BLE ESP-WROOM-32 - SMD - 2.7V-3.6V

Product Code: AN-10018
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
15.60€
Ex Tax: 12.89€

Qty

The system from the ESP32 family for communication in a Wi-Fi network in the 2.4 GHz band and the Bluetooth BLE/v4.2 standard. It is powered with a voltage from 2.7 V to 3.6 V, it is available in a surface soldered case - SMD. The system has 32 GPIO pins along with popular interfaces, i.a. UART, SPI, and I2C.

Main features:
  • Supply voltage: 2.7 V to 3.6 V
  • Microcontroller Dual Core Tensilica LX6 240 MHz
  • SRAM: 520 KB
  • Flash memory: 4 MB
  • Integrated Wi-Fi 802.11 b/g/n/e/i
  • Wi-Fi securities: WEP, WPA/WPA2 PSK/Enterprise, AES / SHA2 / Elliptical Curve Cryptography / RSA-4096
  • Built-in Bluetooth BLE
  • Built-in Hall sensor, temperature sensor and touch interface
  • 32 GPIO pins, including:
    • 3x UART
    • 3x SPI
    • 2x I2C (2x I2S)
    • 12-channel ADC converter
    • 2-channel DAC converter
    • The PWM outputs
    • The interface of SD cards
  • Dimensions: 25.5 x 18 x 3 mm
  • Mounting: SMD
Specification:
  • ESP-WROOM-32 system
  • Supply voltage: 2.7 V to 3.6 V
  • Current consumption: approx. 80 mA
  • The Wi-Fi standard: 802.11 b/g/n/e/i (802.11 n up to 150 Mbps)
  • Bluetooth standard: Bluetooth v4.2 / Bluetooth BLE
  • Wi-Fi securities: WEP, WPA/WPA2, PSK/Enterprise, AES / SHA2 / Elliptical Curve Cryptography / RSA-4096
  • Frequency range: from 2.4 GHz to 2.5 GHz
  • Operating temperature: -40 °C to 85 °C
  • Mounting: SMD
  • Dimensions: 25.5 x 18 x 3 mm
