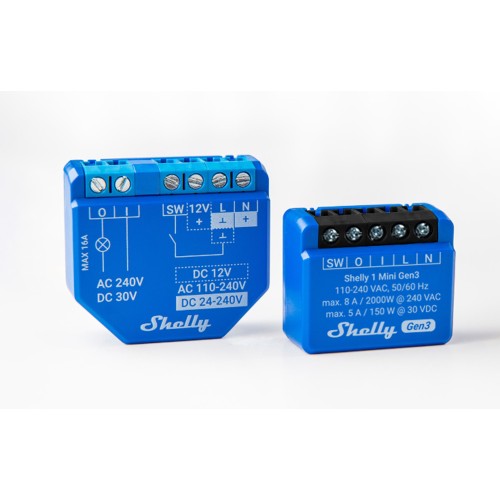

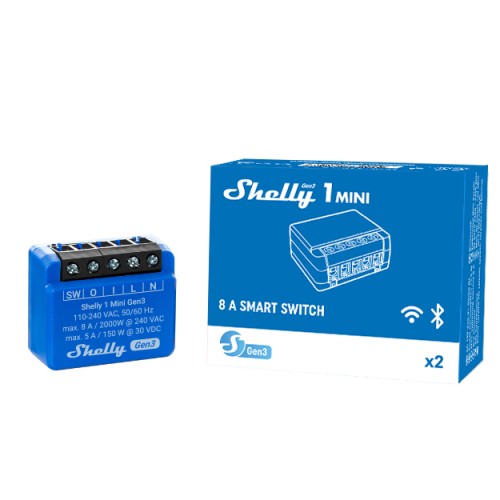

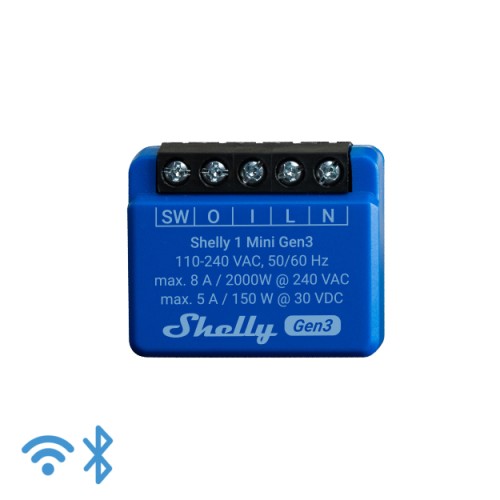

Wi-Fi Controlled Smart Relay Shelly 1 Mini Gen3 x2
Brand: Shelly Group
Product Code: 3800235261583
Availability: 4-7 business days
Planuojama gavimo data po užsakymo: 2025-02-12
Product Code: 3800235261583
Availability: 4-7 business days
Planuojama gavimo data po užsakymo: 2025-02-12
Ex Tax: 31.41€
Discover a new dimension of control in your home with the Shelly 1 Mini Gen3! This small, smart meter allows you to remotely control your devices directly from your smartphone, tablet, computer or home automation system. It is small enough to fit into standard electrical boxes, outlets, light switches and other spaces. It is equipped with a more powerful processor and more memory, so it works more efficiently.
Shelly 1 Mini Gen3 is an updated version of the popular Shelly Plus 1 Mini with an advanced processor and increased memory. As a result, the device works even faster and more reliably. Its compact size makes it easy to install in standard wall boxes, behind electrical outlets or light switches, even where space is limited.
Controlling your devices is now easier than ever! Turn on and off your devices remotely, automate their operation and enjoy the convenience of Shelly 1 Mini Gen3 wherever you are - all you need is an internet connection. The controller is also compatible with popular home automation platforms including Amazon Alexa, Google Smart Home and Samsung SmartThings, so you can control your devices with your voice!
With the Shelly 1 Mini Gen3, you can also extend your Wi-Fi network range for IoT devices. This device acts as a signal booster, taking Wi-Fi signals and amplifying them to cover a larger area. This ensures that your IoT devices are always connected.
The device supports both Wi-Fi and Bluetooth 4.2, which means it can be easily integrated into the existing ecosystem. It also acts as a BLE gateway, allowing communication between Shelly BLU devices and the Shelly ecosystem. Plus, with the ability to monitor humidity and temperature with the Shelly 1 Mini Gen3, you can fully control the environment in your home. You can adjust the parameters according to your preferences to ensure maximum comfort. With the ability to create advanced schedules, you can program your electrical appliances to work exactly the way you need them to. Let the lights come on at certain times of the day and adjust the heating to your schedule - the Shelly 1 Mini Gen3 is ready to meet your expectations.
Specifications:
- Manufacturer: Shelly
- Model: 1 Mini Gen3
- Power: 110 - 240 VAC
- Relay: Dry, NO (Normally Open) Contact, 1 Pole, Micro Contact
- Energy consumption: < 1.2W
- External protection: B or C circuit breaker characteristics, max. 10 A rated current, min. 6 kA short-circuit current circuit breaker, energy limitation class 3
- Max. switching voltage: 240 VAC, 30 VDC
- Max. switching current: 8 A/240 VAC, 5 A/30 VDC
- Max. output power: 2000 W/240 VAC, 150 W/30 VDC
- Internal temperature sensor: Yes
- Wi-Fi connection protocol: 802.11 b/g/n
- Wi-Fi range: up to 30 m indoors and 50 m outdoors
- Bluetooth wireless communication protocol: 4.2
- Bluetooth range: up to 10m indoors and 30m outdoors
- CPU: ESP-Shelly-C38F
- Flash: 8MB
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per action
- Scripts: Yes
- MQTT: Yes
- UDP: Yes
- Advanced Planning: Yes
- KVS: Yes
- Dimensions: 29x34x16 ±0.5mm
- Weight: 19 ±1g
- Conductor cross-section: 0.2 to 2.5mm² / 24 to 14 AWG (solid, twisted and braided insulation conclusions)
- Length of exposed conductor: 6 to 7 mm
- Installation: in a wall box
- Body material: plastic
- Ambient working temperature: -20 °C to 40 °C
- Humidity: 30% to 70% relative humidity
- Maximum height: 2000m
