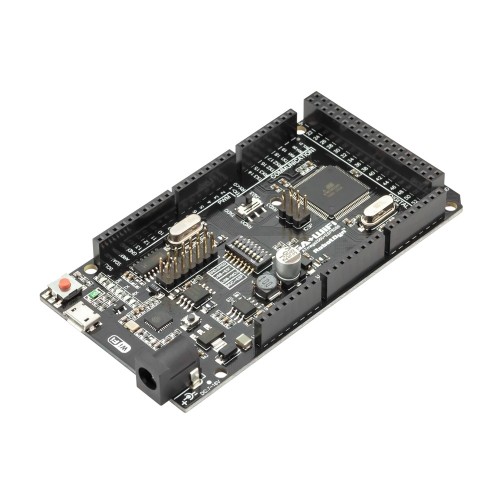

Wemos Mega 2560 R3 + WiFi

The Wemos MEGA 2560 + WIFI is a highly enhanced version of the Arduino MEGA with an additional ESP8266 microprocessor and WiFi connection module installed. It can be called a "real beast." Everything has been improved: built-in WiFi connection module, in addition to the ATmega2560 processor there is a more powerful ESP8266, more memory for storing and executing programs, 4 UART connections, many more input and output (I / O) pins - even 70, 16 of which are analog input, so you no longer have to worry about too few connections when connecting a 3D printer or project with many sensors. If you want to create a complex project, this microcontroller is just for you.
The larger number of UART connections allows you to read the serial connection (Serial COM) of the Arduino IDE console while communicating with other UART devices, which is not possible with the standard UNO model.

Table DIP- switch:

Features and technical specs.:

• Microprocessor: ATmega2560 and ESP8266
• WiFi connection module: ESP8266 Wi-Fi 802.11 b / g / n 2.4 GHz
• Supply voltage: 5V DC (via USB or ICSP) or 9-24V via DC connector
• Logic signal voltage: 5V DC using Atmega2560 microprocessor and 3.3V using ESP8266
• Processor frequency: Atmega 2560: 16MHz, ESP8266: 80-160MHz
• Number of analog signal pins: 16 (input only)
• Number of digital signal pins: 70 (15 of which are PWM)
• Permissible current for analog pins: 20mA
• Permissible current of 3.3V pins: 50mA
• 5V pin allowable current: 800mA
• Operating temperature: -40 - 125 ° C
• Dimensions: 101 x 53 mm
• Weight: 36g

Note: For the WiFi module to work with the microcontroller, the switches on the module must be replaced properly. The connection is shown in the table (in English):

Applications and external links::

• Using Arduino IDE
• Using nodeMCU IDE
• ESP8266 usage example
