WCH CH9102F Friend - USB-UART converter with USB type C connector - Adafruit 5568

Brand: Adafruit
Product Code: AN-22200
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-11
12.60€
Ex Tax: 10.41€

Qty

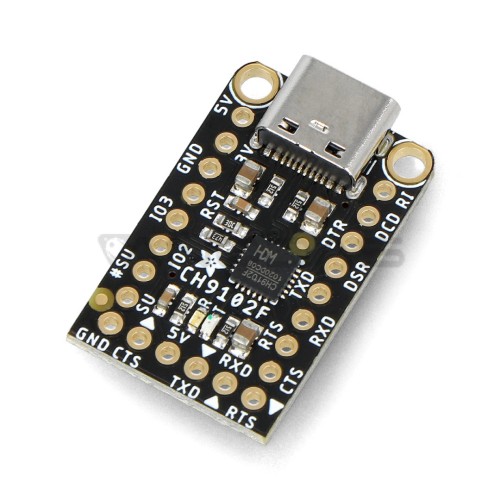

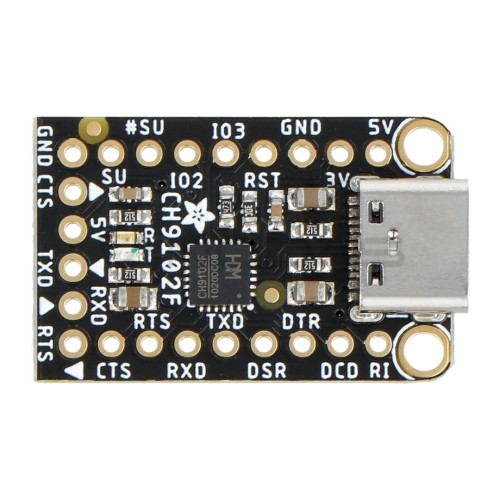

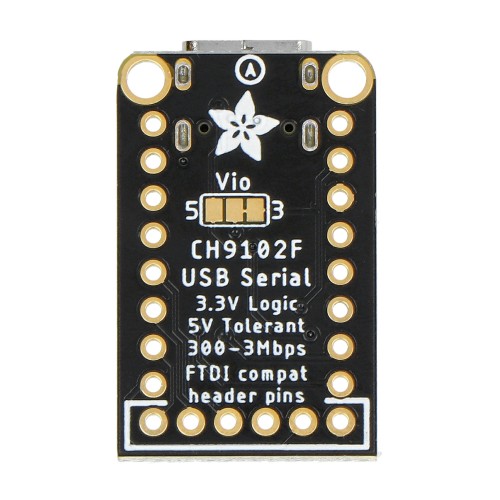

The WCH CH9102F Friend converter from Adafruit enables communication between two popular USB and UART serial interfaces, it can be used to exchange data between a computer and a microcontroller or to program boards with a serial interface, e.g. Arduino or STM32Discovery. It enables users to transfer data at speeds up to 3 Mb/s. The module is equipped with the function of automatic reset of the Arduino / ATmega328 boards, thanks to which there is no need to connect an additional button to the pins. The board operates with a voltage of 3.3 V and works with 5 V signals. On the board, you can also find GPIO ports and two LEDs indicating the operating status.

Specification:
  • Built-in chip: WCH CH9102F
  • Module type: USB-UART converter
  • Transmission speed: 3 Mbit/s
  • Replacement chips: FTR232, FT231x or CP210x
  • Supply voltage: 3.3 V / 5 V
  • Operating status indication: 2 LEDs (TXD, RXD)
  • Connector: USB Type-C
  • Leads: solder pads
  • Board dimensions: 29 x 17.8 x 4.9 mm
  • Weight: 2.2 g

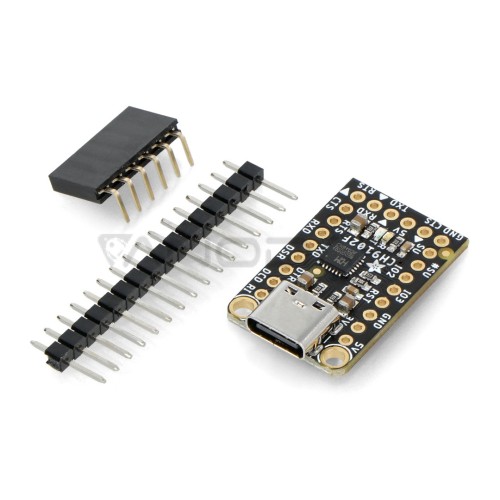

Set includes:
  • WCH CH9102F Friend - USB-UART converter with USB type C connector - 1 piece
  • Goldpin strip 1x16-pin - raster 2.54 mm - 1 piece
  • 1x6-pin female socket - raster 2.54 mm - 1 piece
