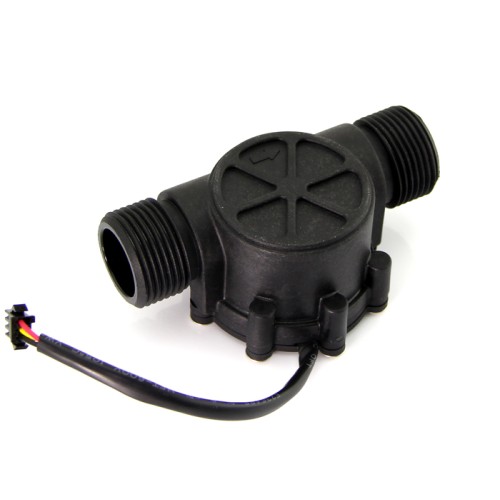

Water Flow Sensor YF-G1 100l/min

Product Code: AN-08897
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-04
16.80€
Ex Tax: 13.88€

Qty

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

Features
  • Compact, Easy to Install

  • High Sealing Performance

  • High Quality Hall Effect Sensor

  • RoHS Compliant


Specifications
  • Mini. Wokring Voltage: DC 4.5V

  • Max. Working Current: 15mA (DC 5V)

  • Working Voltage: DC 5V~24V

  • Flow Rate Range: 2~100L/min

  • Load Capacity: ≤10mA (DC 5V)

  • Operating Temperature: ≤80℃

  • Liquid Temperature: ≤120℃

  • Operating Humidity: 35%~90%RH

  • Water Pressure: ≤1.75MPa

  • Storage Temperature: -25~+ 80℃

  • Interface Dimensions: 1inch
