Water block for cooling 40x40mm - aluminum heatsink for Peltier cells

Brand: OEM
Product Code: AN-22902
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-16
7.30€
Ex Tax: 6.03€

Qty

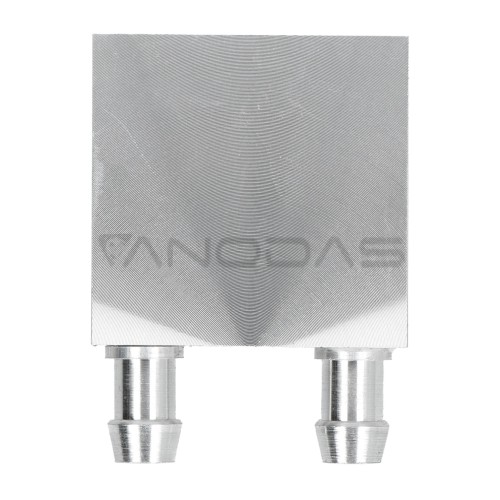

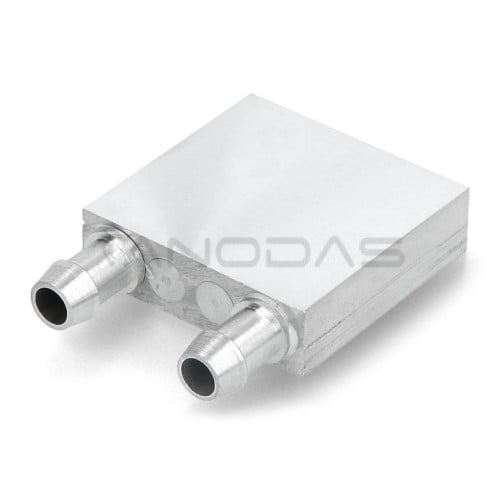

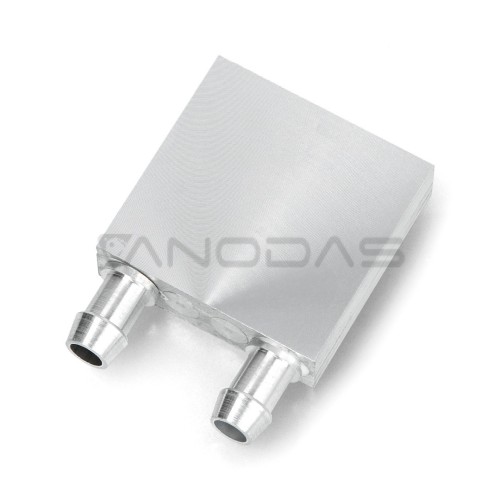

Aluminum radiator with dimensions of 40 x 40 x 12 mm, designed to dissipate heat from various types of elements such as CPUs, GPUs, all kinds of integrated circuits, laser heads, etc. The water block is equipped with two connectors on which a hose with a diameter of approx. 8 mm. The cooler is compatible with Peltier cells with dimensions of 40 x 40 mm (e.g. TEC1-12705, TEC1-12706). The aluminum water radiator in combination with the Peltier cell allows for effective cooling of the water and thus the element on which it has been placed.

Specification:
  • Dimensions: 40 x 40 x 12 mm
  • Compatible with: Peltier cells 40 x 40 mm (e.g. TEC1-12705, TEC1-12706)
  • Hose connector diameter: approx. 8 mm
  • Number of connectors: 2 pcs
  • Material: Aluminum
  • Wall thickness: 0.5 mm
  • Overall dimensions: 55 x 40.5 x 11.5 mm
