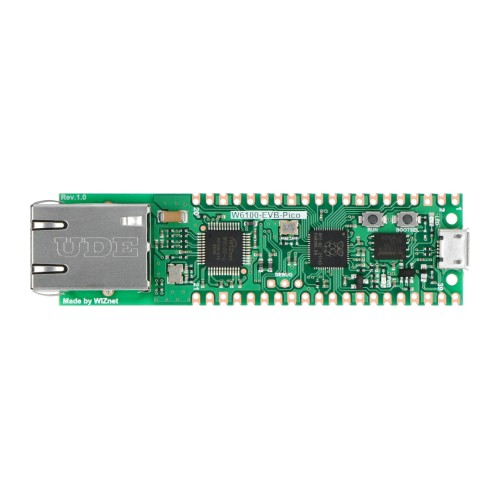

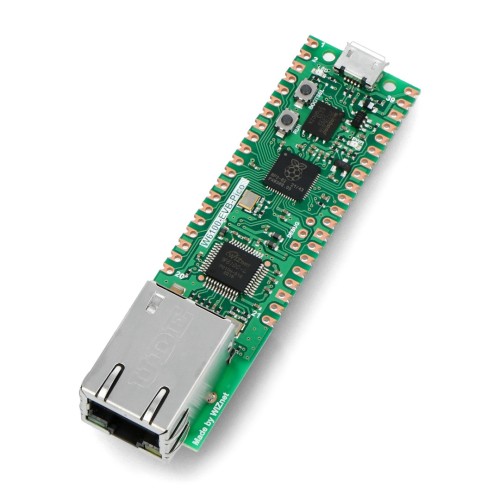

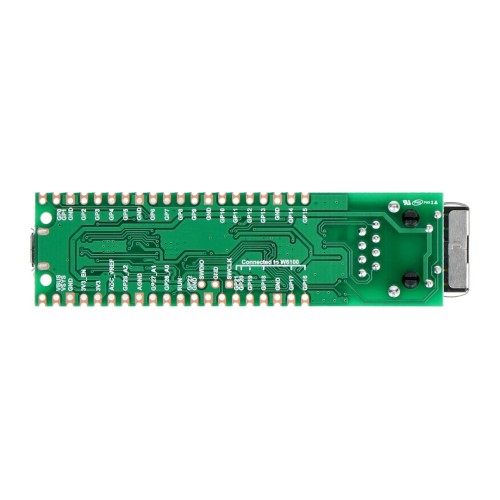

W6100-EVB-Pico - RP2040 microcontroller and Ethernet board - WIZnet
Brand: WIZnet
Product Code: AN-22857
Availability: 4-6 business days
Planned delivery date after ordering: 2024-12-27
Product Code: AN-22857
Availability: 4-6 business days
Planned delivery date after ordering: 2024-12-27
Ex Tax: 18.68€
The board is manufactured by WIZnet and equipped with a Raspberry Pi RP2040 microcontroller and an Ethernet TCP/IP W6100 system. W6100-EVB-PICO supports wired Internet protocols such as TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE and up to 8 independent hardware sockets with 32 kB memory. It supports two types of HOST interfaces - SPI and BUS parallel systems. The RP2040 microcontroller has a dual-core ARM Cortex M0+ processor operating at a frequency of up to 133 MHz, 264 kB of RAM (no EEPROM) and an 8 MB SPI Flash chip for storing files and CircuitPython / MicroPython code.
Main features:
- Equipped with a Raspberry Pi RP2040 microcontroller and an Ethernet W6100 system
- Has 30 multifunctional general-purpose I/Os (4 can be used as ADC)
- Includes built-in 12-bit 500 fs/s analog-to-digital converter (ADC)
- Supports wired Internet protocols: TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
- It simultaneously supports 8 independent sockets with 32 KB memory
- It has an internal memory of 16 kB for TX/RX buffers
- It uses the SPI interface
Specification:
Technical specification of the RP2040 chip:
- Dual-core ARM Cortex M0+ clocked at 133 MHz
- 264 kB onboard SRAM
- External Quad-SPI Flash with eXecute In Place (XIP)
- 12-bit analog-to-digital converter (ADC) 500 fps
- Communication interfaces: 2x UART, 2x I2C, 2x SPI, 16x PWM channels
- SWD interface for debugging
- 1x timer with 4 alarms, 1x RTC real-time counter
- Supported programming languages: C/C++ and MicroPython
Technical specification of the W6100 chip:
- Supports wired internet protocols: TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
- Supports IPv4/IPv6 dual stack
- Simultaneously supports up to 8 independent hardware sockets with 32 kB memory
- Supports socketless commands: ARP, PING, ICMPv6 commands (PING, ARP, DAD, NA, RS) for IPv6 auto-configuration and network monitoring
- Supports Ethernet power-off mode and system clock switching to save power
- Supports Wake on LAN over UDP
- 16 KB internal memory for TX/RX buffers
- Auto-negotiation support (full and half duplex, 10 and 100 based)
- Support for Auto-MDIX only in auto-negotiation mode
- Does not support IP address fragmentation
- 3 V power supply with 5 V I/O signal tolerance
- SPI interface
- MicroUSB connector (type B) for programming and power supply

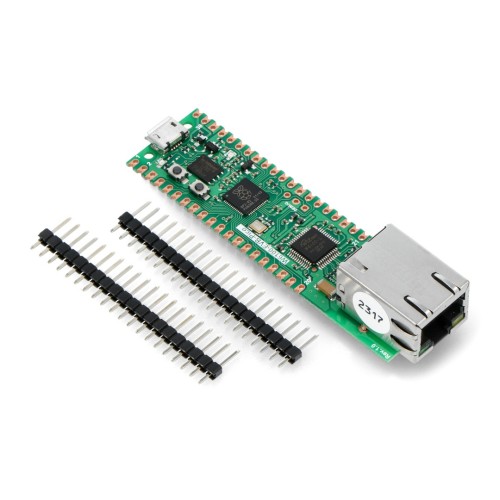

Set includes:
- W6100-EVB-Pico - board with RP2040 microcontroller - WIZnet
- Goldpin strip - raster 2.54 mm - 2 pieces
