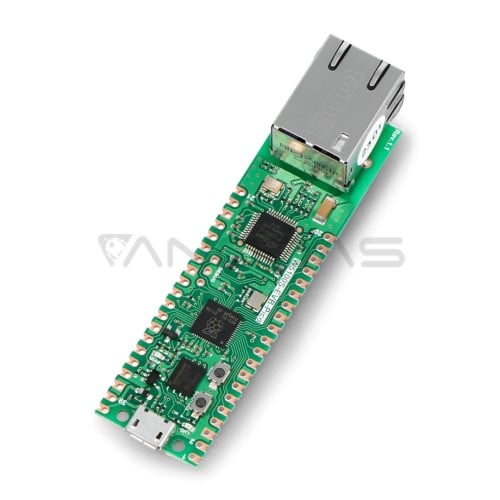

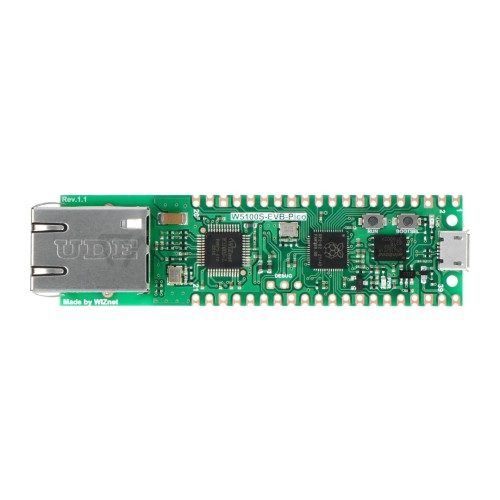

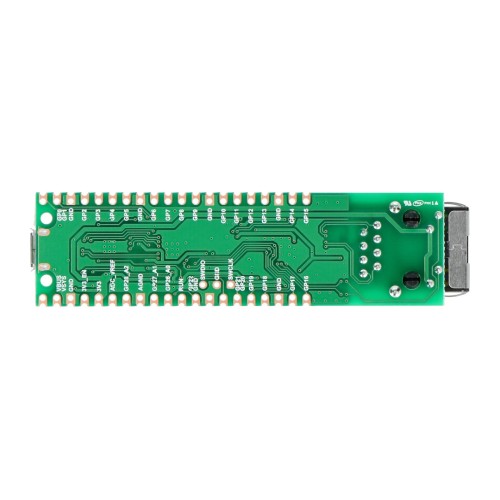

W5100S-EVB-PICO - board with RP2040 microcontroller and Ethernet - WIZnet
Brand: WIZnet
Product Code: AN-22409
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-11
Product Code: AN-22409
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-11
Ex Tax: 20.08€
The WIZnet company board is equipped with a Raspberry Pi RP2040 microcontroller and an Ethernet TCP/IP W5100S system. W5100S-EVB-PICO supports wired Internet protocols such as TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE and up to 4 independent hardware sockets simultaneously. The RP2040 microcontroller has two ARM Cortex M0+ cores and operates at a frequency of up to 133 MHz. It has 30 multifunctional general-purpose IOs (4 can be used as ADC).
Main features:
- Equipped with a Raspberry Pi RP2040 microcontroller and an Ethernet W5100S system
- Includes built-in 12-bit 500 fs/s analog-to-digital converter (ADC)
- Offers a wide range of interfaces - 2x UART, 2x I2C, 2x SPI, 16x PWM channels
- Ability to emulate interfaces such as SD card and VGA
Specification:
- Supports wired Internet protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
- Supports up to 4 independent hardware slots simultaneously
- Internal memory 16 kB for TX/RX buffers
- SPI interface
- MicroUSB connector (type B) for programming and power supply
- ARM 3-pin serial debug (SWD) port
- Built-in 10/100 Ethernet PHY
- Built-in RJ45 connector (RB1-125BAG1A)
- Built-in LDO regulator (LM8805SF5-33V)

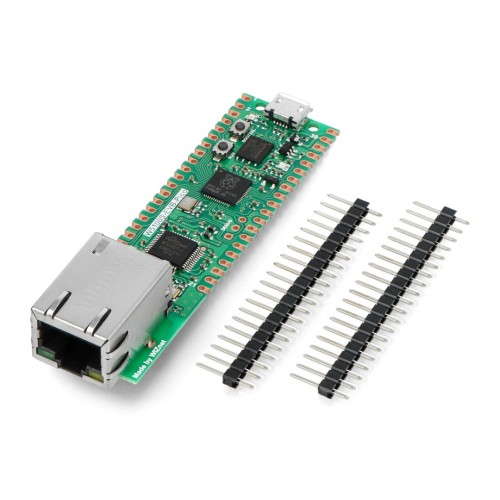

Set includes:
- W5100S-EVB-PICO - board with RP2040 microcontroller and Ethernet - WIZnet - 1 piece
- Goldpin strip - raster 2.54 mm - 2 pieces
