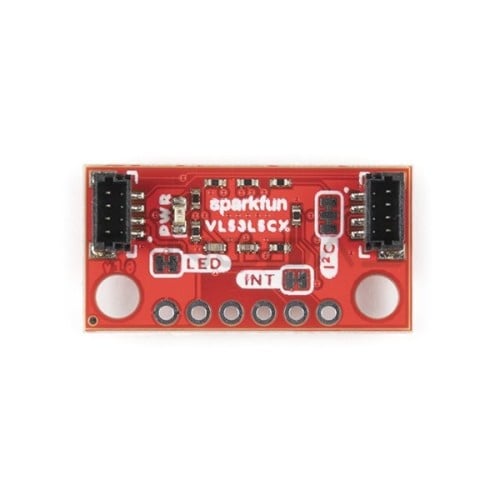

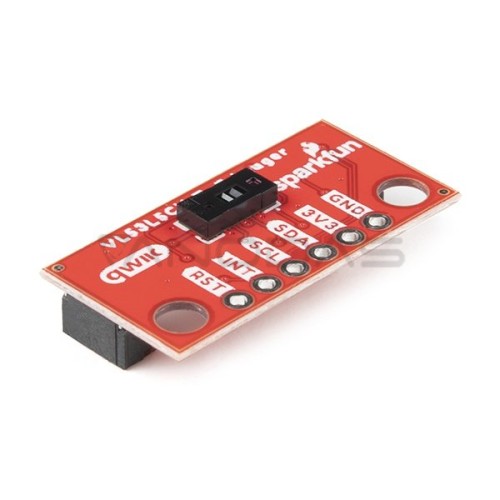

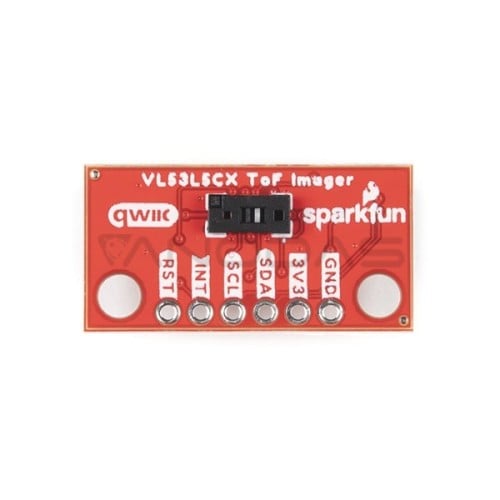

VL53L5CX Mini Time-Of-Flight Imager - Distance Sensor - 4000mm - I2C - Qwiic - SparkFun SEN-19013
Brand: Sparkfun
Product Code: AN-21118
Availability: 4-6 business days
Planned delivery date after ordering: 2025-01-21
Product Code: AN-21118
Availability: 4-6 business days
Planned delivery date after ordering: 2025-01-21
Ex Tax: 41.07€
Digital distance sensor measuring based on the Time-of-Flight (ToF) solution. Based on the VL53L5CX chip, which integrates the SPAD array, physical infrared filters and diffractive optical elements (DOE) to achieve the best possible performance in a variety of ambient lighting conditions. The module uses the I2C bus. It also comes with a Qwiic connector to ease the design process. The measuring range of the sensor is 400 cm. The supply voltage is 3.3 V (the allowable range is 2.7 V to 3.3 V).
Specification:
Specification:
- Supply voltage: 2.7 V to 3.3 V (default 3.3 V via Qwiic connector)
- Multi-zone variable output with separate 4 x 4 or 8 x 8 zones
- Measurement range: up to 400 cm
- Refresh rate: 60 Hz
- Emitter: 940 nm invisible surface light laser (VCSEL) and integrated analog driver
- Field of View (FoV): 63° (thanks to the use of diffractive optical elements (DOE) on both transmitter and receiver)
- I2C address: 0x52
- Jumpers: INT, I2C, LED (details in the user manual)

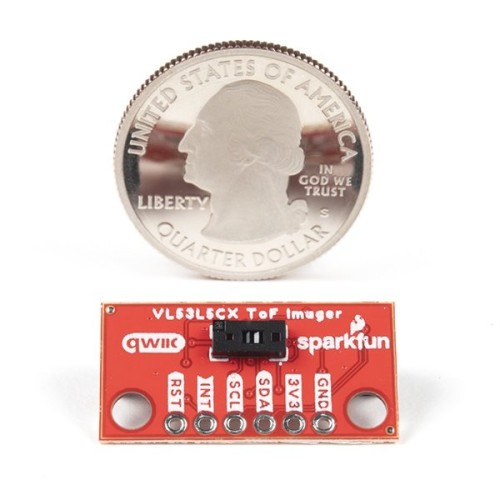

- Dimensions: 25 x 18 mm
