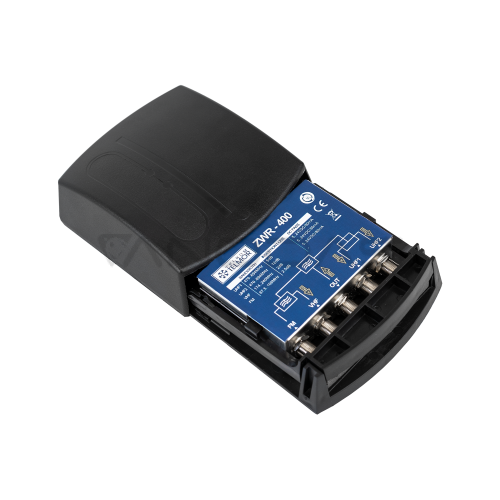

VHF/UHF ZWR-400 Diplexer Telkom Telmor
Brand: Telkom Telmor
Product Code: ZLA0942
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-02-07
Product Code: ZLA0942
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-02-07
Ex Tax: 54.05€
----------
Characteristics
----------
Operating band and frequency: FM: 87.5-108 MHz; VHF: 174-240MHz; UHF: 470-694MHz
Power supply voltage transfer independently for VHF, UHF1, UHF2 antenna inputs with autodetection
Compact and practical housing
The set includes a band for mounting on the antenna mast
Professional crossover of Polish production
----------
Technical data
----------
Working band:
• FM: 87.5-108MHz
• VHF: 174-240MHz
• UHF1: 470-694MHz
• UHF2: 470-694MHz
Through-put attenuation:
• FM: 2.5 dB
• VHF: 2 dB
• UHF1: 5 dB
• UHF2: 12 dB
DC pass: VHF, UHF1, UHF2 - yes (FM - no)
Automatic DC pass switching: yes (for VHF, UHF1, UHF2)
Product dimensions: 87x75x22 mm
Mast housing dimensions: 128x109x45 mm
Net weight with mast housing: 0.3 kg
ZWR-400 is a band diplexer with four inputs: FM, VHF, UHF1 and UHF2 and one output. The device is used to sum up signals from VHF and UHF TV antennas and a radio antenna. Frequency response FM: 87.5-108 MHz, VHF: 174-240 MHz, UHF1 and 2: 470-694 MHz.
The ZWR-400 ensures the transfer of the supply voltage from the input to the VHF and UHF outputs, enabling powering of the antenna preamplifiers. In case of
active antennas, the power will be automatically transferred to the appropriate inputs. After connecting the passive antenna, the voltage transfer will remain
blocked for the port it is connected to.
The diplexer can be mounted on an antenna mast, thanks to a special, splash-proof ABS housing.
The crossover is a professional solution with built-in SAW filter technology. Thanks to this, GSM / LTE and 5G signals will not penetrate the installation.
The use of filters in the UHF inputs allows the use of passive antennas operating in a wider UHF frequency range. There is no need for additional filters or crossovers.
The UHF2 port (with greater through-put attenuation) is dedicated to antennas that receive stronger signals (lighting, transmitter with higher power). Thanks to such a home installation, we can control signals of different power without additional attenuators or selectively tuned amplifiers.
The solution is dedicated to SMATV applications for single-family houses. For larger installations, we recommend using the WWK series channel amplifiers.
Characteristics
----------
Operating band and frequency: FM: 87.5-108 MHz; VHF: 174-240MHz; UHF: 470-694MHz
Power supply voltage transfer independently for VHF, UHF1, UHF2 antenna inputs with autodetection
Compact and practical housing
The set includes a band for mounting on the antenna mast
Professional crossover of Polish production
----------
Technical data
----------
Working band:
• FM: 87.5-108MHz
• VHF: 174-240MHz
• UHF1: 470-694MHz
• UHF2: 470-694MHz
Through-put attenuation:
• FM: 2.5 dB
• VHF: 2 dB
• UHF1: 5 dB
• UHF2: 12 dB
DC pass: VHF, UHF1, UHF2 - yes (FM - no)
Automatic DC pass switching: yes (for VHF, UHF1, UHF2)
Product dimensions: 87x75x22 mm
Mast housing dimensions: 128x109x45 mm
Net weight with mast housing: 0.3 kg
ZWR-400 is a band diplexer with four inputs: FM, VHF, UHF1 and UHF2 and one output. The device is used to sum up signals from VHF and UHF TV antennas and a radio antenna. Frequency response FM: 87.5-108 MHz, VHF: 174-240 MHz, UHF1 and 2: 470-694 MHz.
The ZWR-400 ensures the transfer of the supply voltage from the input to the VHF and UHF outputs, enabling powering of the antenna preamplifiers. In case of
active antennas, the power will be automatically transferred to the appropriate inputs. After connecting the passive antenna, the voltage transfer will remain
blocked for the port it is connected to.
The diplexer can be mounted on an antenna mast, thanks to a special, splash-proof ABS housing.
The crossover is a professional solution with built-in SAW filter technology. Thanks to this, GSM / LTE and 5G signals will not penetrate the installation.
The use of filters in the UHF inputs allows the use of passive antennas operating in a wider UHF frequency range. There is no need for additional filters or crossovers.
The UHF2 port (with greater through-put attenuation) is dedicated to antennas that receive stronger signals (lighting, transmitter with higher power). Thanks to such a home installation, we can control signals of different power without additional attenuators or selectively tuned amplifiers.
The solution is dedicated to SMATV applications for single-family houses. For larger installations, we recommend using the WWK series channel amplifiers.
