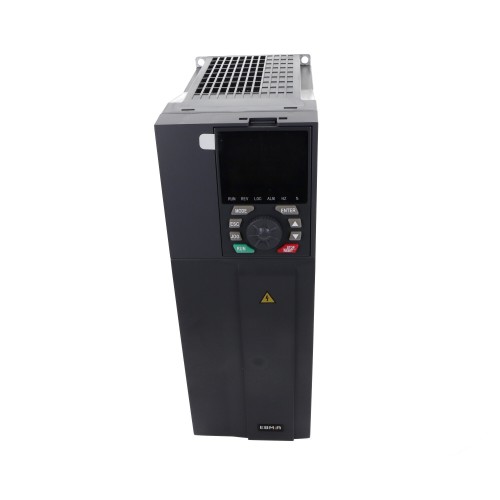

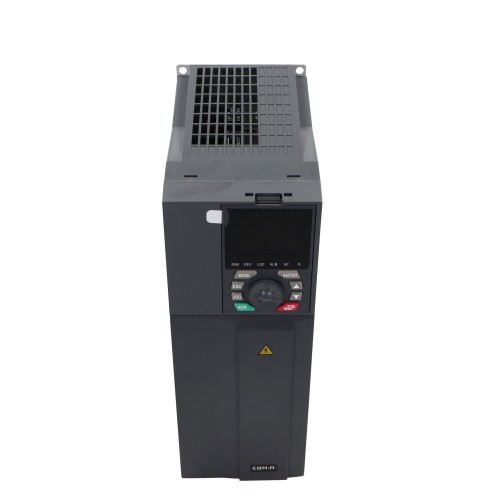

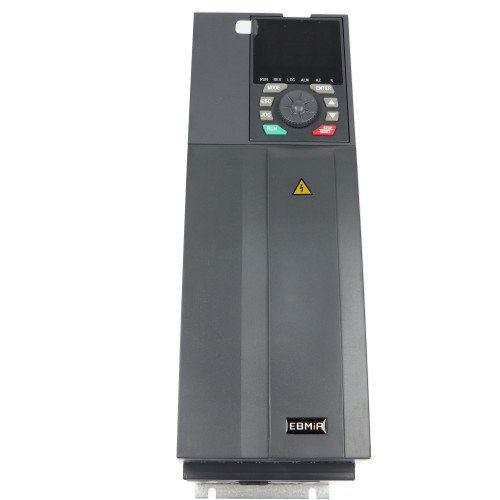

Vector converter 3X400V D32-T3-11G/15P 11KW

Brand: Wagney
Product Code: MX-IW-D32-T3-11G-15P
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
480.10€
Ex Tax: 396.78€

Qty

D32- T3-11G/15P converters powered by three phases are used to control three-phase asynchronous AC motors. This is the most common type of engine in industry.

The D32 scalar inverter is designed for quick commissioning in professional applications. It is perfect for both complex and typical applications where we need to control the engine speed, its direction of rotation, or when we have a specialized engine designed to work with inverters . The extensive PLC system will allow you to implement the most demanding induction motor control applications.


Sensorless vector control in open loop, or scalar U/F
Power supply from a three-phase network 3x400V class: 380V-480V, 50Hz/60Hz
Output frequency up to 400 Hz
Possibility of overloading the inverter up to 150% for 60 s and up to 200% for 2 s
A potentiometer on the inverter panel allows you to conveniently change the engine speed
Carrier frequency in the range 1.5 – 12 kHz
Two 10-bit analog inputs
Two analog outputs
6 programmable digital inputs
Support for MODBUS RTU RS485 communication protocol.
Functions of a simple PLC
Programmable motor speed ranges
Thermal protection of the inverter and motor, short-circuit protection of the inverter
Convenient removable operator panel with LED display

Output current: 24.6 A
Power: 11 kW
Dimensions (width x height x depth): 340 x 118 x 214 mm
Number of digital inputs: 6
Input current: 36.6 A
Controls: Vector
Power supply type: Three-phase
Communication protocol: Modbus RTU
Relay outputs: 2
Analog Input: Yes
Analog output: Yes
