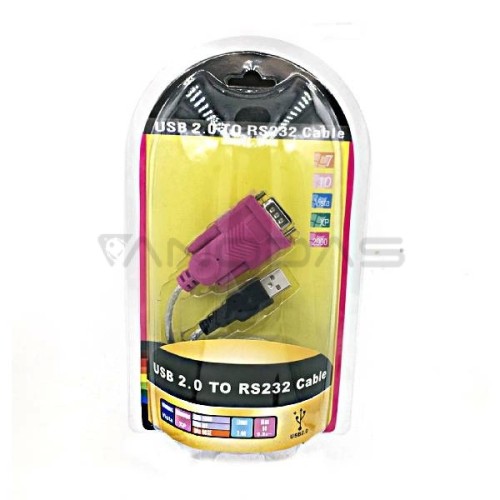

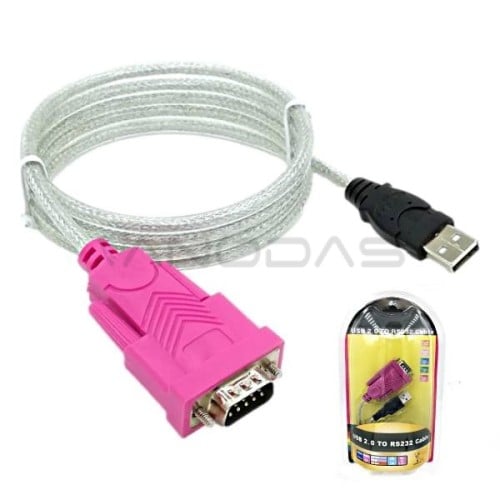

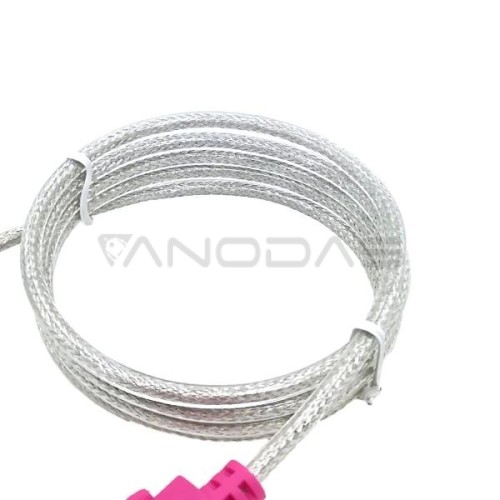

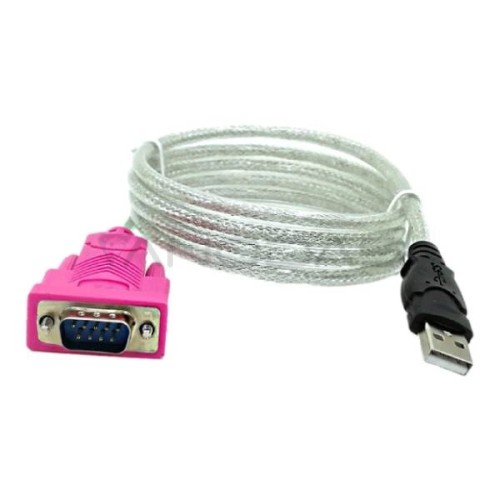

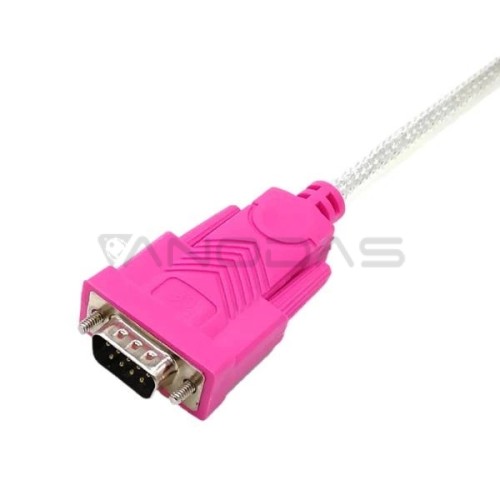

USB-UART/RS232 converter - with 100cm cable - PL2303HX - Arduino

It enables programming of Arduino boards (e.g. MultiWii) and others with RS232/TTL input that do not have a USB connector on their board.

NOTES for PL2303H:

• Controller based on PL2303HX chip
• How to install drivers for newer systems is described in this link USB - UART - TTL Converter PL2303HX windows 10.

• To make connections, simply use
  • GND
  • TXD
  • RXD
• It is very important to connect it correctly to the motherboard - any other connection may damage the board electronics or FTDI.
• Designed for all boards with TTL/RS232 (TX/RX) input

Description for PL2303H controller:

• Compatible with Win XP / Vista
• The PL2303 provides a convenient solution for connecting a full-duplex asynchronous RS232 serial device.
• The PL2303 has drivers that simulate a traditional COM port on most operating systems allowing existing COM port-based applications to easily communicate with the device.
• Pin color codes:
  • Red +5V
  • Black GND
  • White RXD
  • Green TXD
• compatible with USB 1.1 and 2.0
• speed up to 12Mbps
• supply voltage: 5V
• overload protection: 500mA
• USB Type A Plug
• 4pin connector (TX, RX, GND, 5V)
• transmission speed: from 300bps to 1.5Mbps

Product Application to Other Devices:

• Single-chip solution for upgrading Legacy RS232 devices to USB interface
• USB to RS232 Converters / Cables / Dongles
• Healthcare / Medical USB Interface Data Transfer Cable
• Private Infotainment / Media Player Docking USB Interface
• Cellular/PDA USB Data Transfer Interface Cable
• Serial-over-IP Wireless Solution
• USB Barcode / Card Readers
• GPS/Navigation USB interface
• At points of sale (POS) Terminals / Printers
• PC docking station / docking
• Industrial / Instrumentation / Automation USB Interface
• USB Modem / Wireless / USB ZigBee Interface
