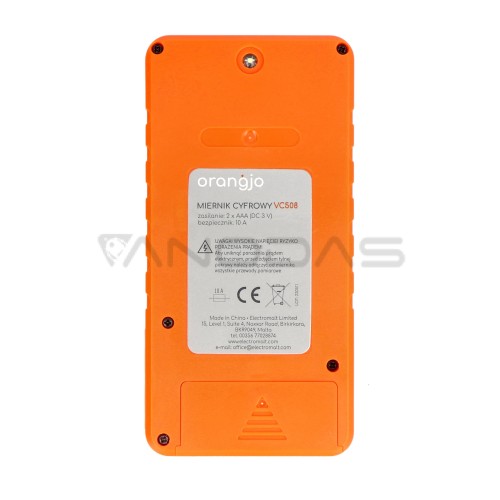

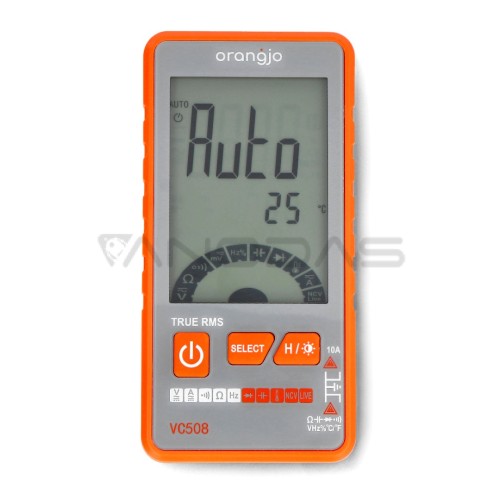

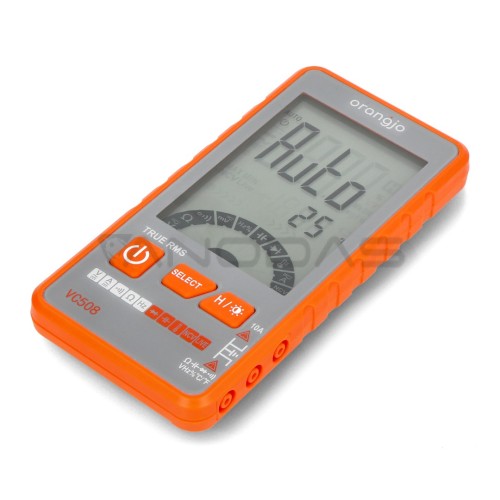

Universal multimeter with NCV - Orangjo VC508

Brand: Orangjo
Product Code: AN-22524
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-04
34.10€
Ex Tax: 28.18€

Qty

Orangjo's easy-to-use multimeter is designed for basic measurements. The device has the function of an automatic measurement range selection. The VC508 model can measure DC and AC voltage up to 600 V, DC and AC current up to 10 A, resistance up to 60 MΩ, capacitor capacitance up to 60 mF, as well as temperature, frequency and True RMS value. In addition, the device has the function of testing the continuity of circuits. It is also equipped with a non-contact NCV voltage detector and flashlight function. The results of measurements made by the meter are presented on a backlit LCD display. The device is powered by two AAA batteries included in the set and has a low battery indicator. The set also includes test leads and a probe for temperature measurement.

Main features:
  • Automatic measurement range selection
  • Measurement of DC voltage, AC voltage, DC current, AC current, resistance, capacitance, temperature, frequency and True RMS
  • Circuit continuity testing
  • Non-contact NCV voltage detector
  • HOLD function
  • Backlit LCD display
  • Flashlight
  • Auto power off (after 15 minutes of inactivity)
  • Overload protection
  • Powered by two AAA batteries included in the set
  • Low battery indicator
  • Easy-to-use
Specification:
  • Producer: Orangjo
  • Model: VC508
  • DC voltage measurement: 600 mV to 600 V
  • AC voltage measurement: 600 mV to 600 V
  • DC current measurement: 600 mA to 10 A
  • AC current measurement: 600 mA to 10 A
  • Resistance measurement: 600 Ω to 60 MΩ
  • Capacitance measurement: from 6 nF to 60 mF
  • Sampling rate: 2 times per second
  • Display: LCD, backlit
  • Power: 2x AAA battery (included)

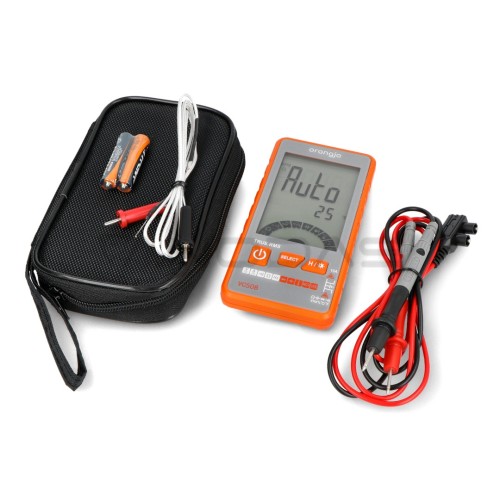

Set includes:
  • Universal meter with autorange and NCV - Orangjo VC508
  • 2 x AAA battery
  • Test leads
  • Temperature probes
  • Case
  • User manual
