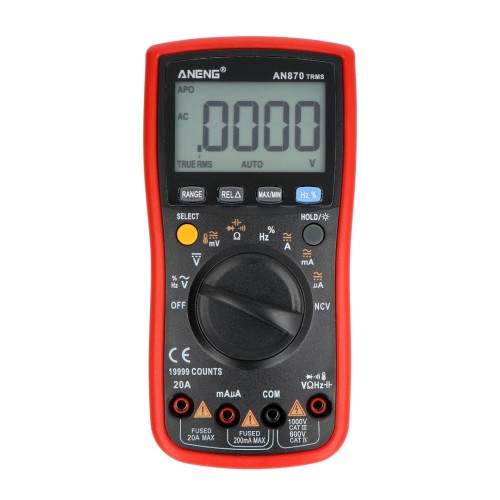

Universal multimeter with NCV - Aneng AN870

Brand: Aneng
Product Code: AN-22702
Availability: Temporarily Out Of Stock
70.90€
Ex Tax: 58.60€
Multifunctional multimeter from Aneng, thanks to which you can perform a number of different measurements. The device has the function of automatic selection of the measuring range, it can also be done manually. The results of measurements made by the meter are presented on a backlit LCD display. In addition, the AN870 model has many amenities: HOLD function, MAX/MIN function, REL function, automatic switch-off and buzzer. The meter is powered by two AA batteries (included).

Main features:
  • Automatic measurement range selection
  • Backlit LCD display
  • Buzzer
  • HOLD function, holding the last measurement made
  • MAX/MIN function, i.e. recording the maximum and minimum values during the measurement
  • REL function
  • Auto power off (after 15 minutes of inactivity)
  • Powered by two AA batteries included in the set
  • Low battery indicator
Specification:
  • Manufacturer: Aneng
  • Model: AN870
  • DC voltage measurement: 19.999 mV to 1000 V
  • AC voltage measurement: 19.999 mV to 750 V
  • DC current measurement: 199.99 µA to 19.999 A
  • AC current measurement: 199.99 µA to 19.999 A
  • Resistance measurement: 199.990 Ω to 199.99 MΩ
  • Capacitance measurement: from 9.999 nF to 9.999 mF
  • Frequency measurement: 99.99 Hz to 9.999 MHz
  • Duty Cycle Duty Cycle Measurement: 1% to 99%
  • Temperature measurement: -20°C to 1000°C
  • Sampling rate: 2 times per second
  • Display: LCD, backlit
  • Power: 2x AA battery (included)

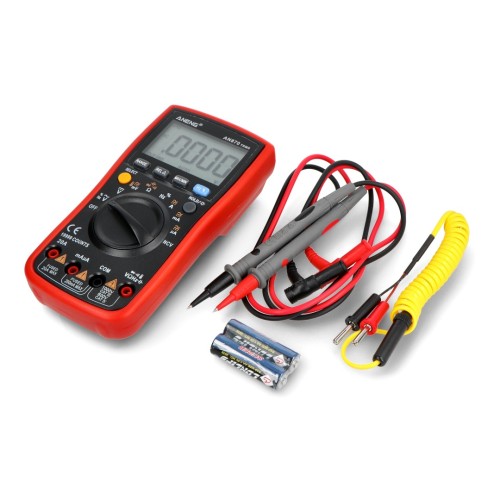

Set includes:
  • Universal meter with autorange and NCV - Aneng AN870
  • Test leads
  • Thermocouple - probe for temperature measurement

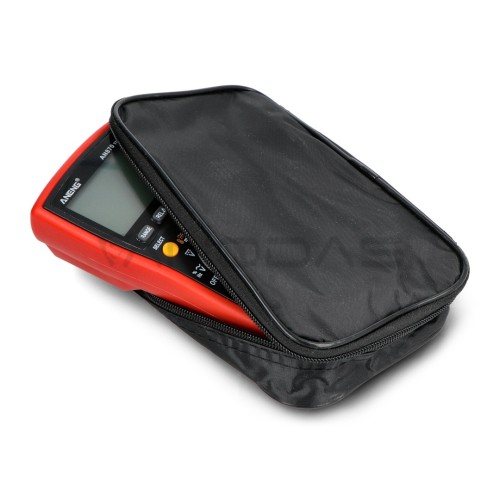

  • Case
  • User manual
