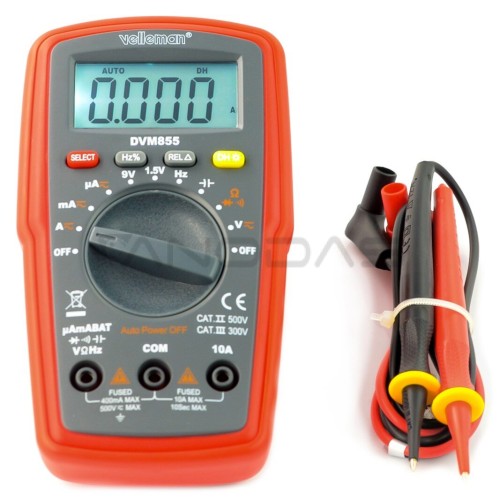

Universal Multimeter Velleman DVM855

Brand: VELLEMAN
Product Code: AN-13992
Availability: Temporarily Out Of Stock
33.80€
Ex Tax: 27.93€
A multimeter can measure voltage DC and AC up to 500 V, the consumption current up to 10 A, resistance up to 40 mω. The device has a measuring function, the measurement of capacitance, frequency, backlit display, sound, measurement of led, the exceeding of the range, and also recording functions.

Main features:
  • CAT. II 500 V / CAT. III 300 V
  • automatic and manual range adjustment
  • automatic polarity indication
  • automatic reset
  • measuring voltage: 500 V AC and 500 V DC. CURRENT (max.)
  • measure current: DC 10 A AC 10 A (max.)
  • resistance measurement: to 40 mω (max.)
  • measure capacitance: 100 UF max.
  • measurement frequency: 5.12 MHz max.
  • SET OF TEST LEADS WITH PVC - CAT. III 600 V - 12, A - 18 AWG - LENGTH 70 cm
  • pollution degree 2
Specification:
  • DC voltage: 400 mV / 4 V / 40 V / 400 V / 500 V
  • AC voltage: 4 V / 40 V/ 400 V/ 500 V
  • DC: 0-400 µa/ 4 mA / 40 mA / 400 mA / 4 A / 10 A
  • AC: 0-400 µa / 4 mA / 40 mA / 400 mA / 4 A / 10 A
  • Resistance: 0-400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm
  • Capacity electric: 0-51,2 NF / 512 NF / of 5.12 UF / 51.2 per UF / 100 UF
  • Frequency: 0-5,12 Hz / 51,2 Hz / 512 Hz / 5,12 kHz / 51,2 kHz / 512 kHz / 5,12 MHz
  • Battery tester: yes
  • Continuity measurement: yes, if the resistance is below 50 Ohm built-in buzzer beeps
  • Diode Tester: yes
  • Warning sound: yes
  • Exceeding of the range: yes
  • Battery indicator: yes
  • Display: LCD (47 x 21 mm) not more than 4000 characters
  • The maximum display value: 3 3/4
  • Mode selector: manual / automatic
  • Transistor tester: yes
  • Memorization of data: yes
  • Backlight: yes
  • automatic shut-off: yes
  • Dimensions: 138 x 74 x 30 mm
  • Weight (with battery): 120 g
  • Power supply: battery 2 x AAA LR03 (included)
  • Fuse:
    • F0,5 A / 500 V 5 x 20 mm
    • F10 A / 500 V 5 x 20 mm
  • Terms of use:
    • temperature: 0 °C to 40 °C
    • humidity: < 80% RH
  • Storage conditions:
    • temperature: -20 °C to 60 °C
    • humidity: < 90% RH
  • Probe: KAT. III 600V, 12 A, L = 75 cm
Set includes:
  • Multimeter Velleman DVM 855
  • Test leads
  • Batteries 2 x AAA
  • English and Polish manual
  • Warranty: 24 months
