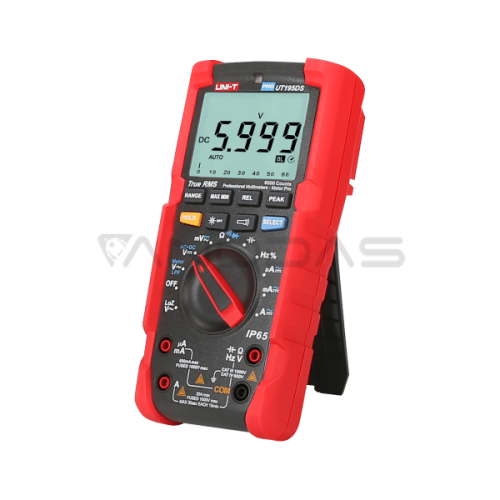

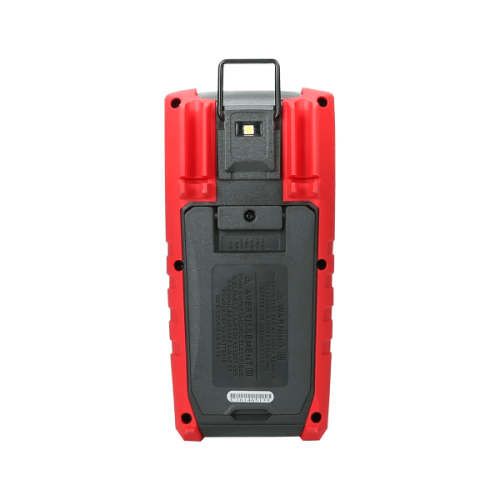

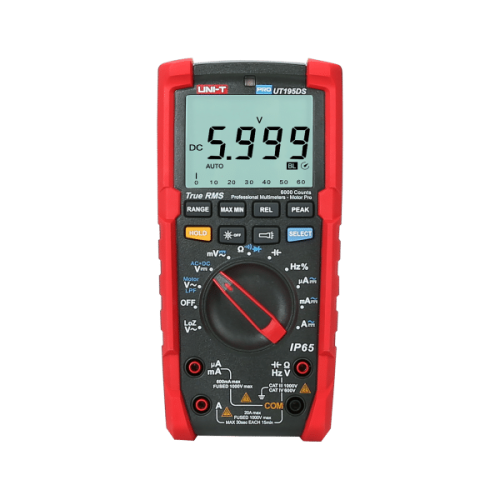

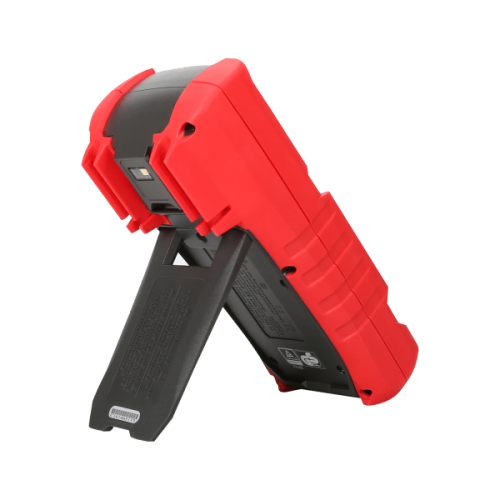

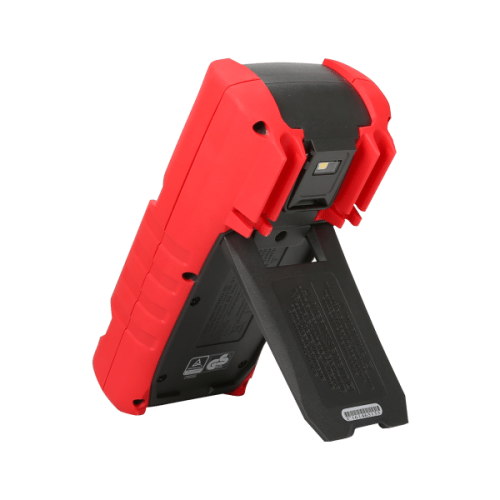

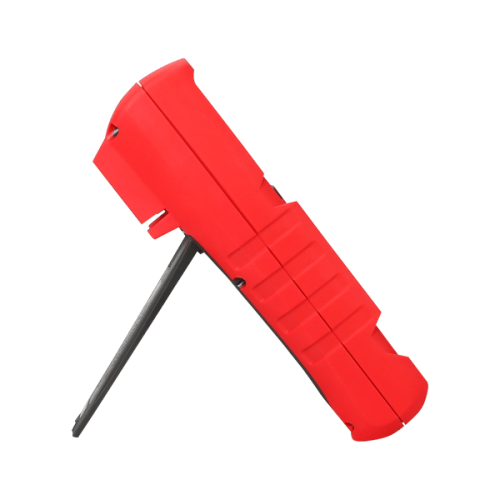

Universal multimeter UT195DS

Brand: UNI-T
Product Code: MIE0297
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-04-11
193.20€
Ex Tax: 159.67€

Qty

Universal multimeter Uni-T PRO UT195DS

Specification:

  • DC voltage: 600 mV / 6V / 60V / 600V / 1000V ± (0.5% + 3)
  • AC voltage: 600 mV / 6V / 60V / 600V / 750V / LoZ 600V / LPF 6 ~ 750V ± (0.7% + 3)
  • Direct current: 600 µA / 6000 µA / 60 mA / 600 mA / 6A / 20A ± (0.8% + 3)
  • Alternating current: 600 µA / 6000 µA / 60 mA / 600 mA / 6A / 20A ± (1% + 3)
  • Resistance: 600 ohms / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ± (0.8% + 2)
  • Capacity: 6 nF / 60 nF ~ 600 µF / 6 mF ~ 60 mF; ± (3% + 5)
  • Frequency: 100Hz ~ 40MHz ± (0.1% + 4)
  • Occupancy rate: 0.1-99.9%
  • Diode test
  • Continuity check
  • Power supply: 9V battery (6F22 / 6LR61)
  • Screen size: 66x51mm
  • Number of measurements: 5 / s
  • Dimensions: 206.5x95.5x61mm
  • Weight: 450g

Additional features:

  • Automatic / manual change of measuring ranges
  • Measurement of alternating current voltage for sources with low internal resistance
  • AC voltage measurement with low frequency filter
  • AC + DC measurement
  • Real RMS
  • Peak value measurement
  • Relative measurement mode
  • MAX / MIN value entry
  • Phase sequence test: 600V
  • Automatic shutdown
  • Low battery indicator
  • Analog column: 31 segment (number of measurements: 20 / s)
  • Dual screen
  • Automatic LCD backlight
  • Flashlight
  • Maximum reading: 6000
