Universal multimeter Uni-t UT181A
Brand: UNI-T
Product Code: MIE0171
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-02-28
Product Code: MIE0171
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-02-28
Ex Tax: 312.48€

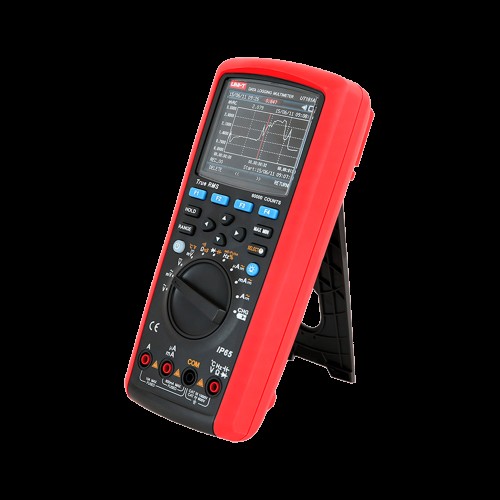

The Uni-T UT181A is an advanced multimeter designed for professional use in electronics, energy and service. With its wide range of measurements and many additional features, the UT181A is an indispensable tool for engineers and technicians who need precision and versatility.
Wide measuring range and high accuracy
The UT181A meter offers highly accurate measurements over a wide range, including DC voltage (up to 1000 V) ±(0.025%+5) and DC current (up to 10 A) ±(0.08%+). 10). The instrument also allows you to measure AC voltage, AC current, resistance, capacitance, frequency, conductance and temperature. High measurement accuracy, wide ranges and True RMS function ensure reliability and accuracy even in demanding applications.
Advanced measurement functions
The UT181A is equipped with many advanced functions, such as true RMS measurement, AC + DC measurement, simultaneous temperature measurement with two probes and comparative measurements. In addition, the meter has a low-pass filter, the ability to record the last reading, voltage level measurement (dBV/dBm), maximum value recording, relative measurement mode and MAX/MIN/AVG functions. All of these options make the UT181A extremely versatile and adaptable to a wide range of measurement scenarios.
Ergonomic design and intuitive control
The meter has a large, color 3.5-inch TFT LCD screen that ensures readability of results even in difficult lighting conditions. An analog column with 61 segments further facilitates the interpretation of results in real time. The device also has automatic shut-off functions, a warning of incorrectly selected test sockets and a low battery indicator, which increases safety and ease of use.
Solid construction and a full set of accessories
The UT181A is powered by a 2000mAh Li-ion battery that provides long-lasting performance on a single charge. Measuring 103 x 225 x 59mm and weighing 638.6g, the meter is durable and easy to carry thanks to its robust construction. The kit includes all necessary accessories such as battery, test leads, USB cable, temperature probes, temperature measuring socket, power supply and case.
Measuring ranges:
- DC voltage: 60mV/600mV/6V/60V/600V/1000V ± (0.025%+5)
- AC Voltage: 60mV/600mV/6V/60V/600V/1000V ±(0.3%+30)
- Continuous current: 600 µA/6000 µA/60 mA/600 mA/10 A ± (0.08%+10)
- AC current: 600 µA/6000 µA/60 mA/600 mA/10 A ± (0.6%+20)
- Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ± (0.05% + 2)
- Conductivity: 60 nS ± (2%+10)
- Capacitance: 6 nF/60 nF/600 nF/6 µF/60 µF/600 µF/6 mF/60 mF ± (2%+5)
- Frequency: 60 Hz / 600 Hz / 6 kHz / 60 kHz / 600 kHz / 6 MHz / 60 MHz ±(0.01%+5)
- Temperature: -40°C ~ 1000°C ±(1%+30), -40°F ~ 1832°F ±(1.5%+50)
- Fill factor: 10% ~ 90% ± (1.2%+30)
- Pulse width: 250 ms
- Diode test: about 3V
- Circuit Continuity Check
Features:
- Automatic/manual change of measurement ranges
- True RMS measurement
- AC + DC measurement
- Simultaneous temperature measurement with two probes
- Comparative measurements
- Low pass filter: 1 kHz (-3 dB)
- Freeze the last reading
- Voltage level measurement (dBV/dBm)
- Recording the highest value
- Relative measurement mode
- Measurement record: 20000
- Trends of change
- Recording MAX/MIN/AVG values
- Date/time display
- LCD backlight adjustment
- Analog column: 61 segments
- Warning about incorrectly selected test sockets
- Low battery indicator
- Automatic shutdown
- Maximum reading: 60,000
Specifications:
- Optical connection
- Input voltage measurement resistance: about 10 MOhm
- Power supply: 7.4V, 2000 mAh lithium-ion battery
- Screen size: 3.5 inch color TFT LCD
- Product dimensions: 103x225x59mm
- Product weight: 638.6g

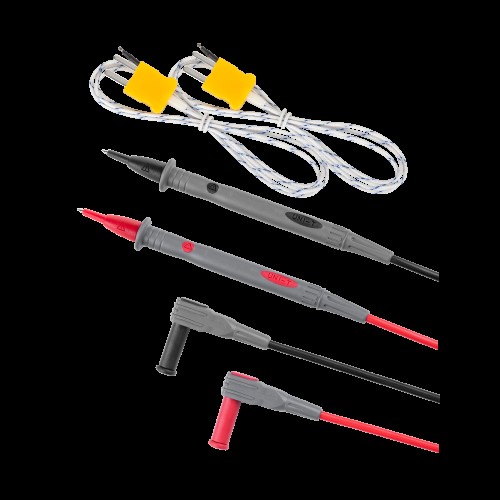

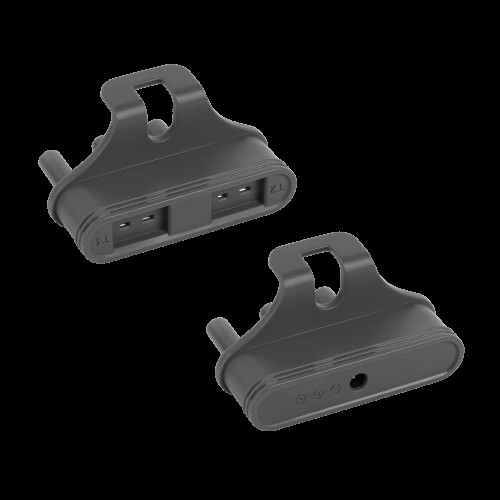

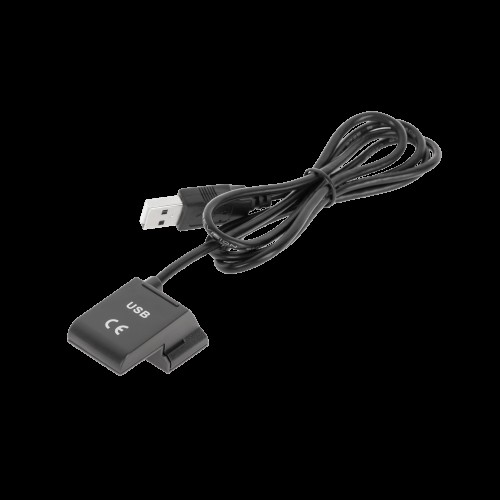

- Accessories: battery, test leads, USB cable, 2x temperature measuring probe, temperature measuring socket, charging socket, AC adapter, case
