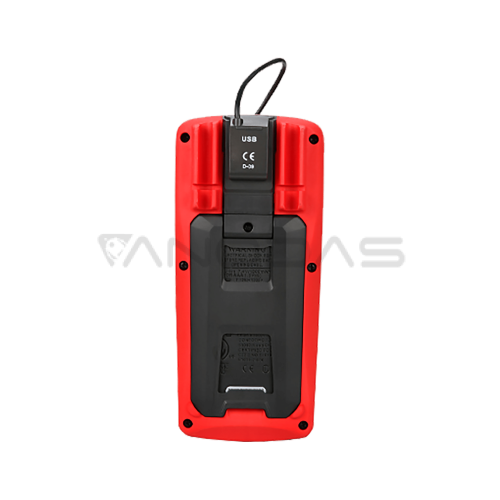

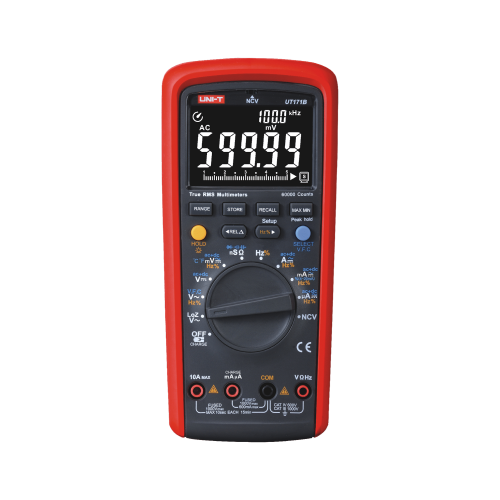

Universal multimeter Uni-t UT171B

Brand: UNI-T
Product Code: MIE0191
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-04-16
295.50€
Ex Tax: 244.21€

Qty

The Uni-t UT171B multimeter is a universal multimeter whose functions allow the measurement of various physical values, including DC and AC voltage and intensity, which will allow the detection of electrical installation failure. Beneficial for both professionals and ordinary people.
Technical data:

  • DC voltage: 600mV / 6V / 60V / 600V / 1000V ± (0.025% + 5)
  • AC voltage: 600mV / 6V / 60V / 600V / 1000V ± (0.4% + 40)
  • Direct current: 600 µA / 6000 µA / 60 mA / 600 mA / 6 A / 10 A ± (0.15% + 10)
  • AC voltage: 600 µA / 6000 µA / 60 mA / 600 mA / 6 A / 10 A ± (0.75% + 20)
  • Resistance: 600 ohms / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ± (0.05% + 2)
  • Conductivity: 60 nS ± (1% + 10)
  • Capacity: 6 nF / 60 nF ~ 600 µF / 6 mF ~ 60 mF ± (2.5% + 5)
  • Frequency: 60Hz ~ 10MHz / ± (0.01% + 5)
  • Temperature: -40 ° C ~ 1000 ° C ± (1% + 3); -40 ° F ~ 1832 ° F ± (1.5% + 5)
  • Other norm: 1% ~ 99% ± (3% + 40)
  • Diode test: about 3 V
  • Continuity check
  • Percentage of current in 4-20 mA circuit: 0-100%
  • Automatic / manual change of measuring ranges
  • Filter to remove high frequency noise that may affect measurement accuracy (VFC)
  • Electric field detection (NCV)
  • Measurement of alternating current voltage for sources with low internal resistance (LoZ): approximately 3 kOhm
  • AC + DC measurement
  • True RMS measurement
  • MAX / MIN recording
  • The last measurement is recorded
  • Relative measurement mode
  • Measurement record: 9999
  • Analog chart
  • Warning about incorrect selection of test sockets
  • Low battery indicator
  • Automatic switch-off: after approx. 15 minutes
  • Maximum reading: 60,000
  • Illuminated EBTN screen
  • Optical connector
  • Voltage measuring input resistance: approx. 10 MOhm (for 600 mV DC range: approx. 1 GOhm)
  • Power supply: built-in 2000 mAh lithium-ion battery, 7.6 V
  • Screen size: 70.6 x 35.3 mm
  • Product dimensions: 206 x 95 x 55 mm
  • Product weight: 386 g

Included:

  • Test leads
  • Temperature probe
  • USB wire
  • Charger
  • Charging socket
  • Compact disc
  • Case
