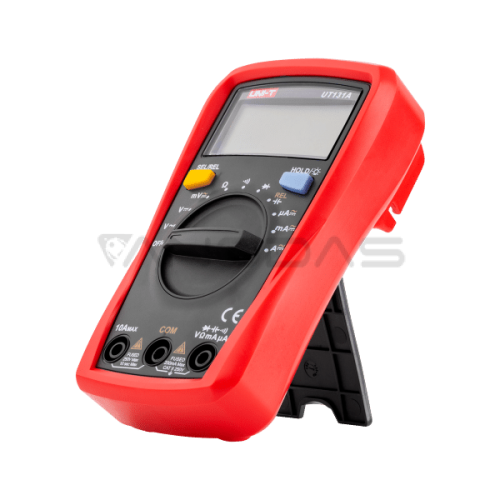

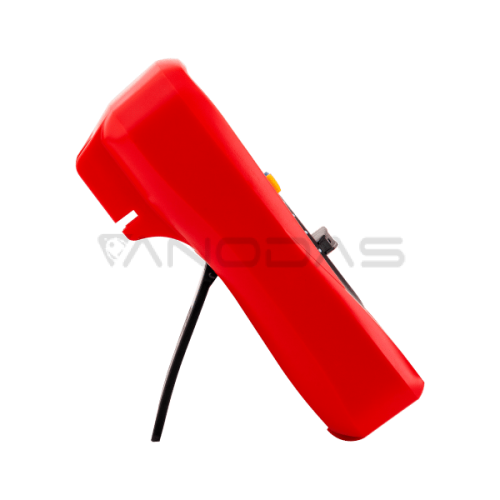

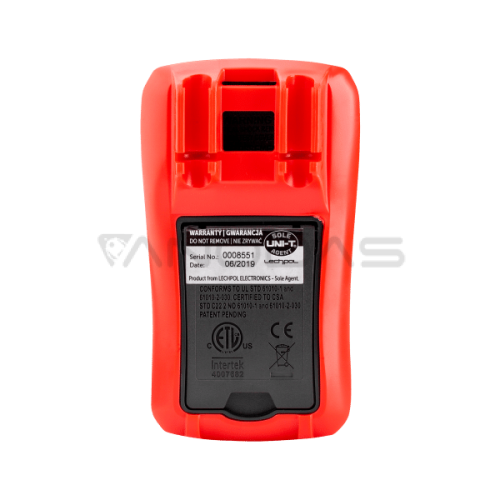

Universal multimeter Uni-T UT131A

Brand: UNI-T
Product Code: MIE0379
Availability: Temporarily Out Of Stock
26.80€
Ex Tax: 22.15€

The Uni-T UT131A multimeter is one of the universal measuring devices that allows to measure basic electrical quantities, i. direct or alternating voltage, direct or alternating current and resistance. In addition, the model allows you to check the continuity of the circuit, the diode test and the capacitance measurement. Additional advantages of the device are relative value measurement, freezing of the last indication, automatic change of measuring ranges.

Specification:

  • DC input resistance: about 10 MOhm
  • Power supply: battery 2x 1.5V battery (R03)
  • Screen size: 48x16mm
  • Product dimensions: 134x77x47mm
  • Product weight: 206 g

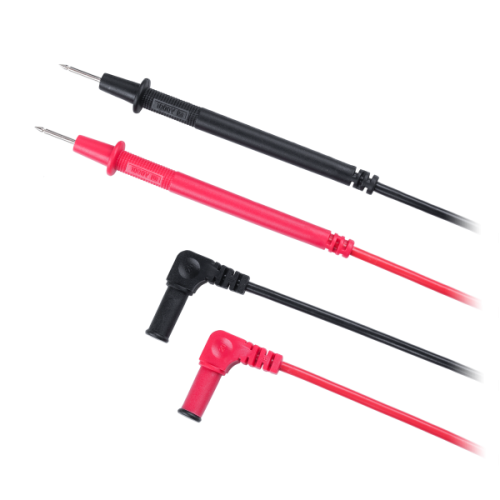

  • In the set: Batteries, test leads, case

MEASUREMENT RANGES:

  • DC voltage: 200 mV / 2000 mV / 20V / 200V / 250 V ± (0.5% + 2)
  • AC voltage: 200 mV / 2 V / 20V / 200V / 250 V ± (0.7% + 3)
  • Direct current: 200 µA / 2000 µA / 20 mA / 200 mA / 2A / 10A ± (1% + 2)
  • Alternating current: 200 µA / 2000 µA / 20 mA / 200 mA / 2A / 10A ± (1.2% + 3)
  • Resistance: 200 ohms / 2000 ohms / 20 kOhm / 200 kOhm / 20 MOhm / 200 MOhm ± (0.8% + 2)
  • Capacity: 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF ± (4% + 8)
  • Diode test
  • Continuity check

Additional features:

  • Automatic change of measuring ranges
  • The last reading is frozen
  • Measurement of relative value
  • Low battery indicator
  • Automatic shutdown
  • Maximum reading: 2000
  • LCD screen with backlight
