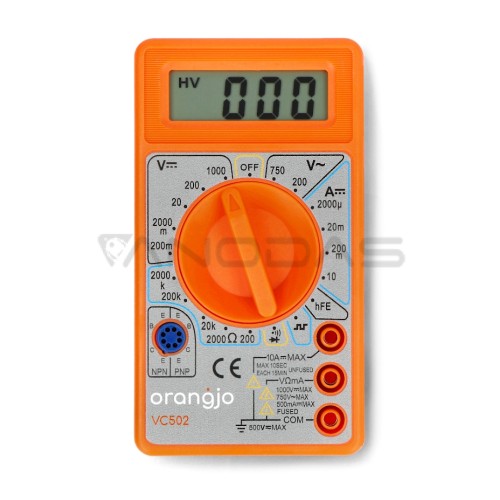

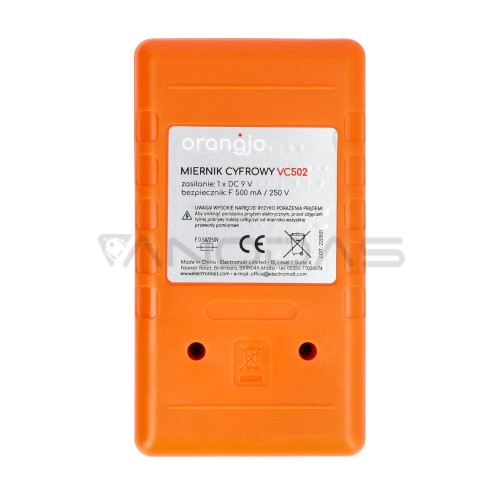

Universal multimeter Orangjo VC502
Ex Tax: 6.53€
Orangjo's easy-to-use multimeter is designed for basic measurements. It will work well when working in the field, laboratory, workshop, as well as at home. It has 3 measuring sockets, including 2 protected against exceeding the measuring range. The VC500 can measure DC voltage up to 1000 V, AC voltage up to 750 V, DC current up to 10 A, and resistance measurement up to 2000 kΩ. In addition, the device has the function of testing transistors, diodes and circuit continuity, as well as a square wave generator and a buzzer. The results of measurements made by the meter are displayed on the LCD display. The device is powered by the included 9 V battery and has a low battery indicator. The kit also includes test leads.
Main features:
- 3 measuring sockets, including 2 protected against exceeding the measuring range
- Measurement of DC voltage, AC voltage, DC current and resistance
- Testing of transistors, diodes and continuity of circuits
- Square wave generator
- buzzer
- LCD display
- Overload protection
- Powered by a 9V battery included in the set
- Low battery indicator
- Compact housing dimensions
- Easy-to-use
Specification:
- Producer: Orangjo
- Model: VC502
- DC voltage measurement: 200 mV / 2000 mV / 20V / 200V / 1000V
- AC voltage measurement: 200V / 750V
- DC current measurement: 2000 µA / 20 mA / 200 mA / 10 A
- Resistance measurement: 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 2000 kΩ
- Sampling rate: 2 times per second
- Display: LCD
- Power: 9 V battery (included)
- Terms of use:
- temperature: from 0 °C to 40 °C
- humidity < 80%
- The storage conditions:
- temperature: -10 °C to 50 °C
- humidity: < 75%
- Dimensions: 126 x 70 x 26 mm
- Weight: 110 g

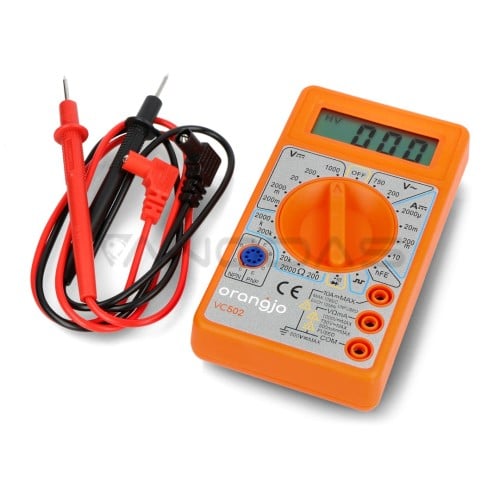

Set includes:
- Orangjo VC502 multimeter
- 9 V battery
- Test leads
- User manual
