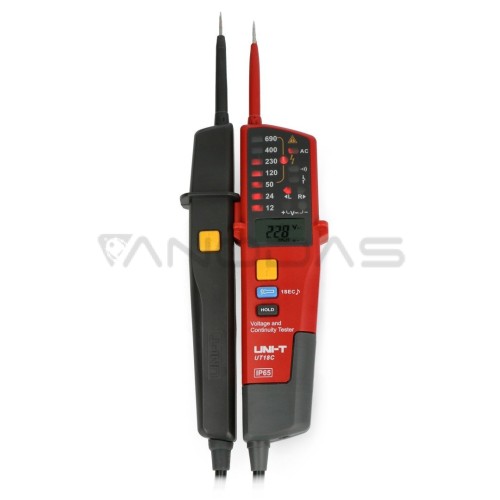

Universal meter UNI-T UT18C

Brand: UNI-T
Product Code: MIE0195
Availability: 4-6 business days
Planuojama gavimo data po uĹľsakymo: 2025-05-06
57.90€
Ex Tax: 47.85€

Qty

The UT18C from UNI-T is a voltage tester and detector. This meter simplifies the task of measuring DC and AC voltages. A voltage measurement can be done either by a 1-pole or 2-pole measurement. Furthermore, the UT18C has different measuring functions such as, rotary field check, voltage tests, continuity tests, etc. In addition, this meter is also equipped with an LED work light to illuminate the working surface. The voltage tester features an auto shutdown mode to preserve battery. If the battery does get empty, the meter notifies the user so a replacement can be installed.

Measurement ranges:

  • LED voltage measurement indicator:
  • Ranges: 12 V / 24 V / 50 V / 120 V / 230 V / 400 V / 690 V
  • Accuracy: ± (1.5% + 5)
  • Phase sequence test:
  • Voltage: 100 ~ 690 V
  • Frequency: 50 ~ 60 Hz
  • Single phase voltage detection:
  • Voltage: 100 ~ 690 V
  • Frequency: 50 ~ 400 Hz
  • Continuity test:
  • Resistance: 0 ~ 100 kOhm
  • Buzzer and LED indicator
  • RCD test:
  • Voltage : 230 V
  • Frequency: 50 ~ 400 Hz
  • Polarity detection: positive and negative

Additional functions:

  • Automatic change of measuring ranges
  • Test of the device before measurement
  • Freezing the last indication
  • Low battery
  • indicator Overvoltage indicator
  • Automatic standby mode
  • Backlight of the measurement place
  • LCD screen

General features:

  • IP65
  • Power supply: 2x 1.5 V (R03)
  • Display size: 73.5 x 35.5 mm
  • Dimensions: 272 x 85 x 31 mm
  • Weight: 280 g

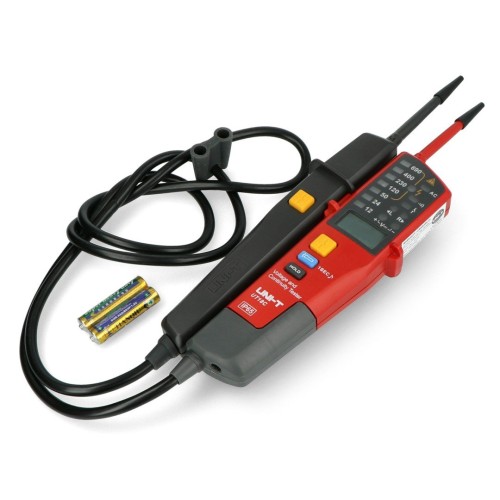

  • Accessories: batteries
