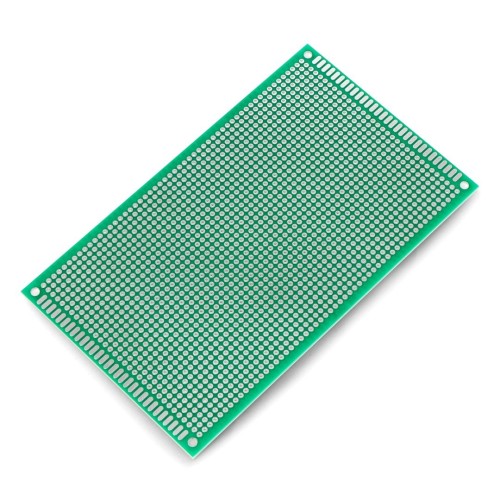

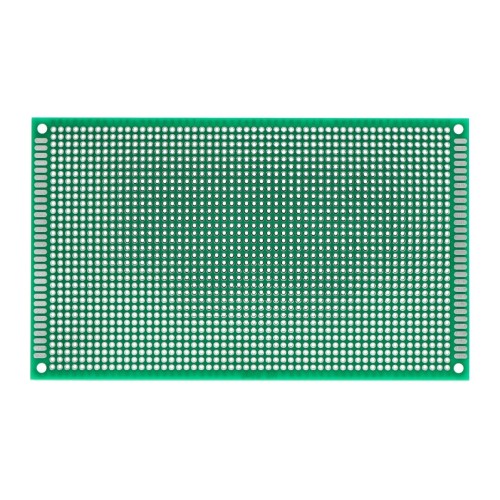

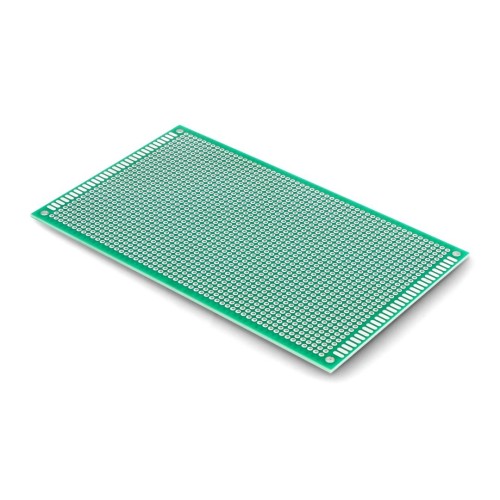

Universal double-sided board 90x150mm
Universal double-sided board 90x150mm
Universal double-sided board 90x150mm

Universal double-sided board 90x150mm

Brand: OEM
Product Code: AN-20269
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
Central Warehouse Out of Stock
4.00€
Ex Tax: 3.31€

Qty

Add to Wish List
A double-sided universal board allows you to assemble any electronic circuit. It has 1782 holes (33 x 54) for mounting THT elements and 60 fields (2 x 30) for mounting SMD elements. Holes and fields have a 2.54 mm raster and the dimensions of the whole are 90 x 150 x 1.6 mm. Soldermask's color is green and solder fields are silver.

Specification:
  • Soldermask color: green
  • Mounting: THT through-hole
  • An array of holes: 2.54 mm
  • Four mounting holes with a 3 mm diameter
  • Number of holes for through-hole mounting: 1782
  • Number of surface mount holes: 60
  • PCB dimensions: 90 x 150 x 1.6 mm


Tags: universal, double-sided, board, 90x150mm, prototyping, oem
