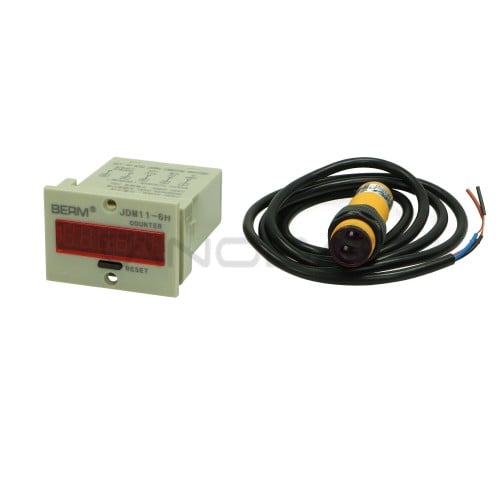

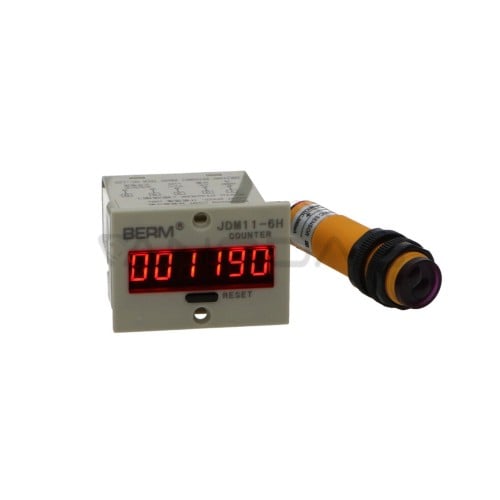

Universal counter with optical sensor
Brand: QC - Quality Control
Product Code: MX-IW-T-000-0016
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-01-31
Product Code: MX-IW-T-000-0016
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-01-31
Ex Tax: 29.75€
A universal counter with an optical sensor is a device that can be used to measure the number of elements in various types of processes, using an optical sensor to detect objects. The optical sensor is usually placed in the device in a way that allows it to read moving objects, such as products on a production line, elements in packaging, or elements on an assembly line. A universal counter with an optical sensor can be used in various applications, such as industry, logistics, warehousing, production, or quality control. It can be used to count elements in the production process, to monitor the efficiency of the assembly line, to control product quality, or to track the quantity of products in the warehouse. The optical sensor in the universal meter works using reflected infrared radiation. The signal from the optical sensor is processed in the device, and the universal counter displays the current number of counted elements on the screen. The "reset" button on the housing is used to reset the counted quantity. Specification:
- Model: JDM11
- Supply voltage: 12-24VAC/DC; 100-240V AC; 36, 380V AC
- Max. counting speed: 10 cps
- Memory without power: min 10 years
- Power consumption: 3VA max
- Display: 8-segment, 4-digit
- Counting error: ≤1
- Reset time: ≥0.5s
- Power reset: ≥1s
- Dielectric strength: 2000 V AC, 50/60 Hz for 1 min
- Insulation resistance: 100MΩ min. at 500 V DC
- Operating temperature: -5 to 45°C
- Operating humidity: Max. 30-85% RH, non-condensing
