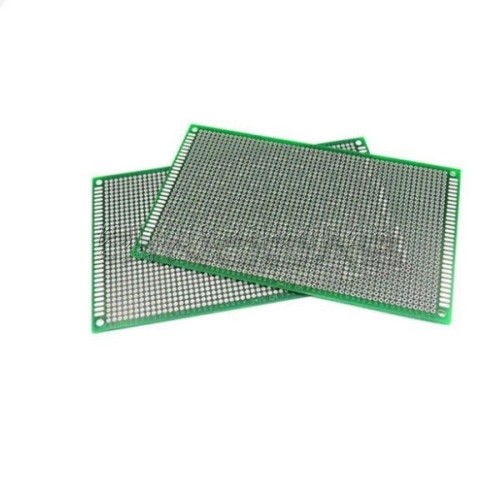

Universal board 90x150mm - double-sided PCB - prototype construction

Product Code: ABC-18484
Availability: 5-8 business days
Planuojama gavimo data po užsakymo: 2025-05-13
4.10€
Ex Tax: 3.39€

Qty

The 90x150mm universal board allows you to construct any electronic circuit. A double-sided board with metallization of standardly arranged holes with a pitch of 2.54 mm allows simple and quick installation of electronic components.

The 90x150mm universal board allows you to assemble and disassemble any electronic system, e.g.:
  • gold-pin strips
  • all kinds of IDC connectors
  • DIP and DIL sockets for integrated circuits (both lamellar and precision)
  • LEDs
  • rectifier system
  • bridge
  • transistor
  • stabilizer
  • integrated circuit in DIP packages
  • capacitor
  • resistor
  • e.t.c.
Product features
  • They will be useful when building prototypes and short production runs.
  • Suitable for creating electrical and electronic systems and prototypes using through-hole elements (THT).
  • Useful for soldering elements from the upper or lower side of the board.
  • An integral part of every prototype and workshop.
Technical data

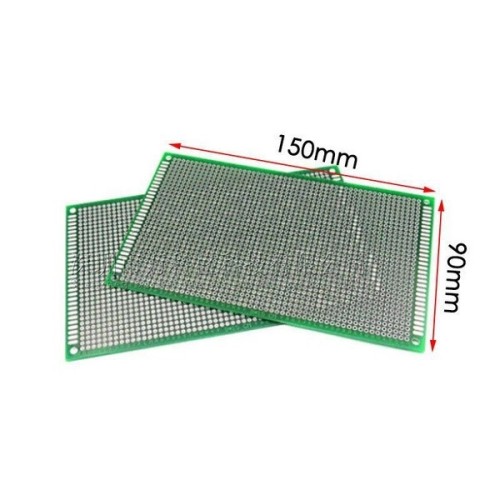

  • board dimensions: 90x150 mm
  • plate thickness: 1.6 mm
  • hole spacing: 2.54 mm
  • double-sided with metallized holes
  • double-sided solder mask
Included
  • - 1 piece.
