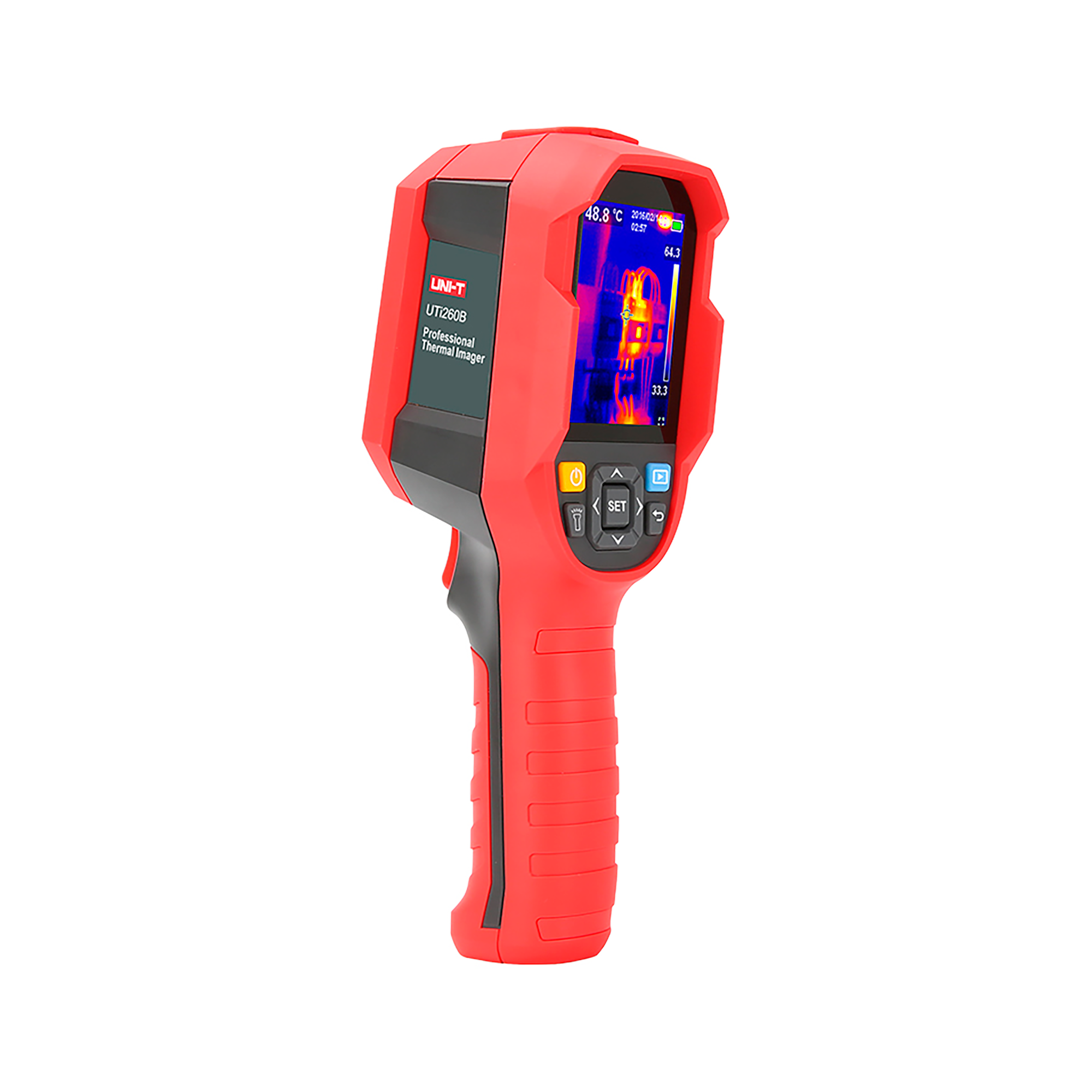

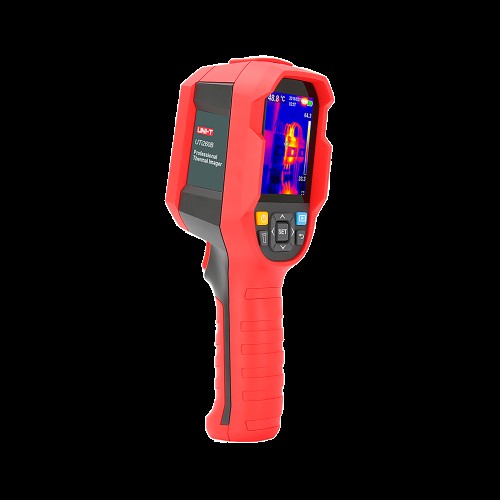

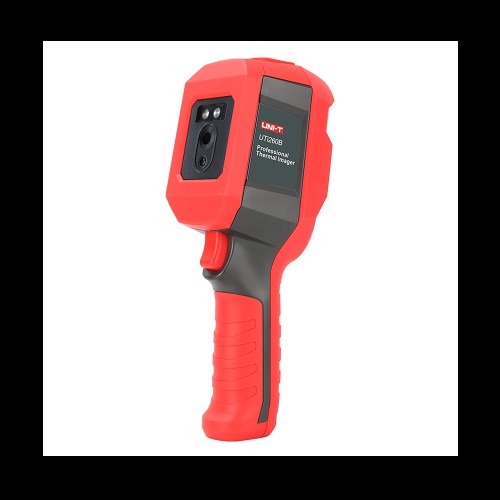

Uni-T UTi260B infrared thermal imager

Brand: UNI-T
Product Code: MIE0456
Availability: Temporarily Out Of Stock
384.70€
Ex Tax: 317.93€

Uni-T UTi260B infrared thermal imager

The Uni-T UTi260B is an advanced thermal imaging camera that combines high measurement accuracy with ease of use. Designed for a variety of applications, from building diagnostics to industrial inspections, the UTi260B provides clear thermal images and accurate results.

Wide temperature range and high accuracy

The UTi260B offers temperature measurements over a wide range from -20°C to 550°C with a measurement resolution of 0.1°C. The camera provides a high accuracy of ±2°C or ±2%, allowing accurate temperature monitoring in various areas. With a thermal sensitivity of 100 mK and a response time of ?500 ms, the device can quickly detect even small temperature differences.

Advanced functions and working modes

The thermal imaging camera UTi260B is equipped with a 256x192 px resolution IR sensor, which allows obtaining detailed thermal images. The device offers three working modes: a thermal imaging camera, a mixed mode and a digital camera, which allows you to flexibly adapt the work to existing needs. The ability to adjust the radiation (0.01-1) and 7 color palettes further increase the accuracy and convenience in various conditions.

Ergonomic design and high image quality

The UTi260B has a 2.8-inch TFT LCD screen with a resolution of 320x240 px, which ensures legibility of images and measurement results. The camera offers a 56°x42° field of view and an instantaneous field of view of 3.1 mrad, allowing for wide area monitoring. Thanks to the ?25 Hz image refresh rate, the device ensures a smooth image even with dynamic temperature changes.

Solid construction and long service life

UTi260B is a device resistant to difficult working conditions, which is confirmed by the IP65 protection class. Power is provided by a 5000 mAh lithium-ion battery, which guarantees long operation on a single charge. Compact dimensions (236 x 75.5 x 86 mm) and relatively low weight (910 g) make the camera easy to use and carry.

A rich set of accessories

The camera comes with a USB charger (5V, 1.5A), a USB Type-C cable and a micro SD card for easy data storage and transfer. RoHS and CE certificates ensure compliance with European safety standards.


Specifications:

  • Temperature range: -20°C~550°C
  • Measurement resolution: 0.1°C
  • Accuracy: ±2°C or ±2%
  • IR transmitter resolution: 256x192 px
  • Optimal distance from the measured surface: 1 meter
  • Reaction time: =<500 ms
  • Pixel size: 12 µm
  • Working modes: thermal camera, mixed mode, digital camera
  • Color palettes: 7
  • Spectral sensitivity: 8~14 µm
  • Field of view: 56°x42°
  • Instant field of view: 3.1 mrad
  • Thermal sensitivity level: 100 mK
  • Video refresh rate: =<25 Hz
  • Radiation: adjustable (0.01-1)
  • Recording format: BMP
  • Screen: 2.8 inch TFT LCD
  • Resolution: 320x240 px
  • Automatic power off: after 5/10/30 minutes

Features:

  • Protection class: IP65
  • Power supply: 3.6V 5000 mAh lithium-ion battery
  • Dimensions: 236x75.5x86mm
  • Weight: 910g

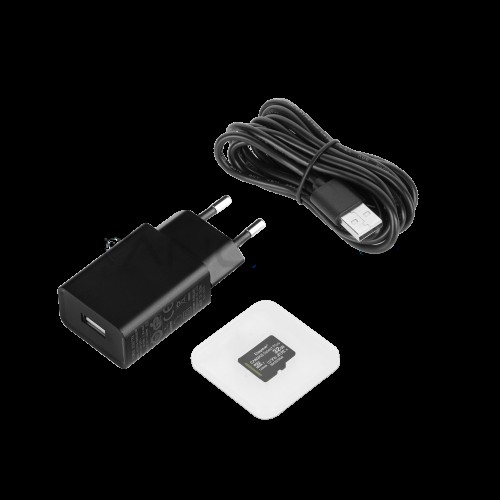

  • Accessories: USB charger (5V, 1.5A), USB Type-C cable, micro SD card
