Uni-directional Logic Level Converter - 8 Isolated Channels - SB Components SKU24094
Brand: SB components
Product Code: AN-22965
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
Product Code: AN-22965
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
Ex Tax: 23.06€

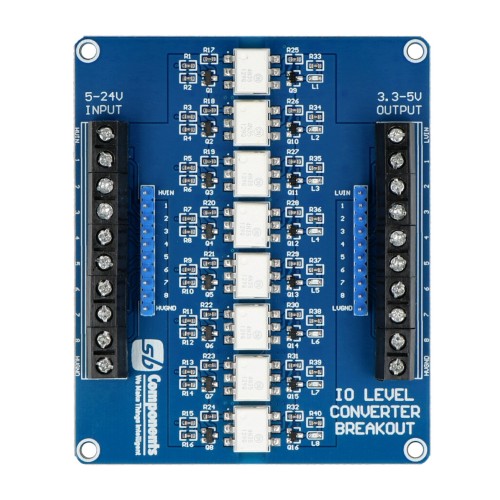

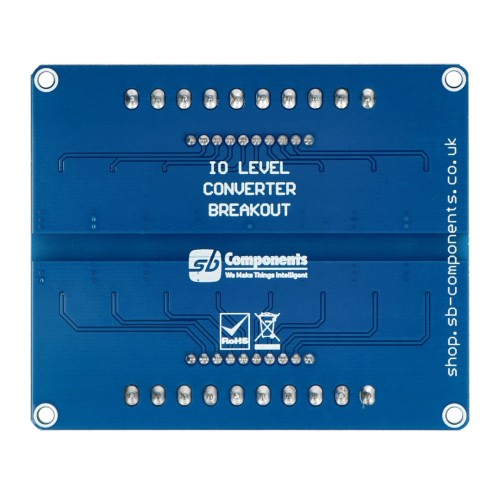

The unidirectional logic level converter from SB Components converts digital signals with voltages from 5 V to 24 V to voltages in the range of 3.3 V to 5 V. This makes it possible to connect devices powered by higher voltage to the inputs of microcontrollers such as Arduino or Raspberry Pi. Each of the eight channels is optically isolated, which ensures the system's immunity to interference and ensures the safe operation of the microcontroller. The maximum frequency of the input signal is 5 kHz.
Specification:
- Type: unidirectional voltage converter
- Input voltage range: 5 V to 24 V
- Maximum safe input voltage: 40 V
- Output voltage range: 3.3 V to 5 V
- Number of channels: 8
- Optical isolation
- Built-in chip: CNY17-4
- Maximum operating frequency: 5 kHz
- Output:
- goldpin male plugs, 2.54 mm pitch
- screw connections
- Four mounting holes: diameter 3 mm
- Board dimensions: 71.0 x 85.0 mm
Tags: uni-directional, logic, level, converter, isolated, channels, components, sku24094, converters
