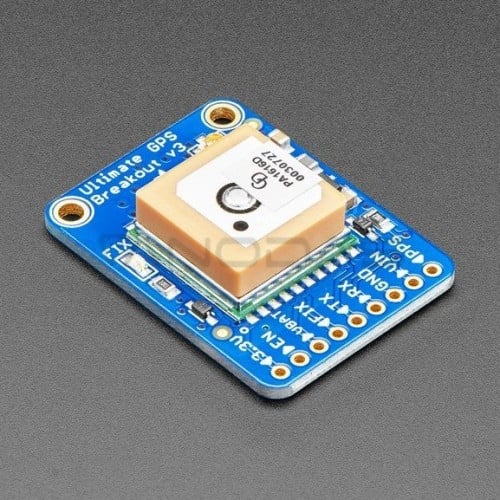

Ultimate GPS - PA1616D GPS module - Adafruit 5440

Brand: Adafruit
Product Code: AN-21469
Availability: Temporarily Out Of Stock
52.40€
Ex Tax: 43.31€
The Ultimate GPS module also supports GLONASS for an even greater range. It is based on the PA1616D / MTK3333 chip, thanks to which it can track up to 33 satellites on 99 channels, it has a high sensitivity receiver up to -165 dBm and a built-in antenna. It can perform up to 10 location updates per second. For communication, it uses the UART serial interface, the logical voltage of which is 3.3 V. The module supply voltage is 3.3 V or 5 V. The module only consumes approx. 29 mA during navigation.

Main features:
  • Sensitivity -165 dBm, 10 Hz updates, 99 channels
  • GPS + GLONASS support
  • It works with a voltage of 5 V and consumes only 30 mA of current
  • Compatible with the breadboard + two mounting holes

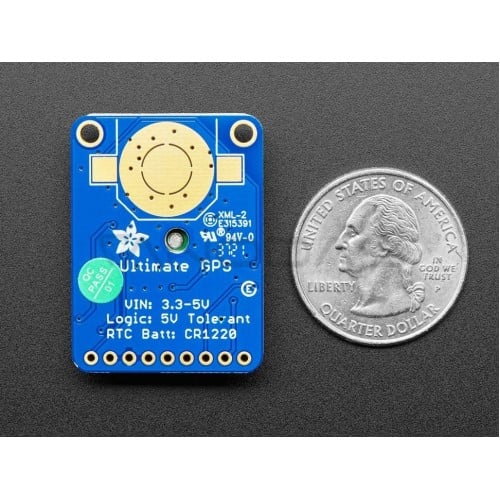

  • Equipped with an RTC battery connector
  • Built-in data recording system
  • PPS output on fix
  • Internal antenna + u.FL connector for external antenna
  • Status LED
  • Support external antenna and pulse output
Specification:
  • Number of satellites supported: 33, 99 searching channels
  • Update frequency: 1 Hz to 10 Hz
  • Positioning accuracy: over 3 m (all GPS technology is approx. 3 m)
  • Speed accuracy: 0.1 m/s
  • Hot/cold start: 34s
  • Acquisition sensitivity: -145 dBm
  • Tracking sensitivity: -165 dBm
  • Maximum speed: 515 m/s
  • Input voltage: 3.3 V / 5 V
  • Power consumption:
    • acquisition: 34 mA
    • tracking: 29 mA
  • NMEA 0183 output: 9600 baud rate (default), 3 V logic output, 5 V safe input
  • Supports DGPS / WAAS / EGNOS
  • FCC E911 compliant and AGPS support (Offline mode: EPO valid up to 14 days)
  • Up to 210 PRN channels
  • Jammer detection and reduction
  • Multipath detection and compensation
  • Antenna dimensions: 15 x 15 x 4 mm
  • Module dimensions (without battery or holder): 25.5 x 35 x 6.5 mm
  • Weight: (without battery or handle): 8.5 g
Set includes:
  • 1x Ultimate GPS - GPS PA1616D module - Adafruit 5440
  • 1x Male goldpin strip
  • 1x CR1220 battery holder
