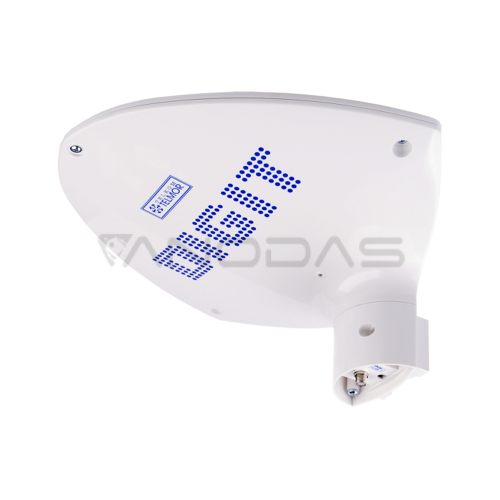

TV antenna DVB-T/T2 DIGIT 5G PROTECTED ACTIVE white Telkom Telmor
Brand: Telkom Telmor
Product Code: ANT0702
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2024-12-20
Product Code: ANT0702
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2024-12-20
Ex Tax: 55.45€
----------
Characteristics
----------
Antenna adapted to receive analog and digital TV signals (DVB-T/T2)
Built-in antenna preamplifier
Built-in 5G SAW filter
Strong attenuation of GSM/LTE/5G mobile phone signals
Very low standing wave ratio WFS =<2.2
High resistance to adverse weather conditions
Excellent technical and functional parameters
Luxury class antenna - reliability, durability, aesthetics
Simple assembly without the need for tools
An ideal antenna for the city, camping and wherever a large antenna is impossible to use.
----------
Technical data
----------
Operating frequency range: 47 - 694 MHz (UHF: k.5 - k.48)*
Gain: 4.5 dBi
Antenna gain: 18…22 dB
Amplifier internal gain: 18 +/-2
Gain (+) attenuation (-) in the stopband: -15 dB/800 MHz
Antenna efficiency (gain + gain): 23 +/-2 dB/470-694 MHz, -10 dB/800 MHz
Polarity: Horizontal (H)
Noise figure: <4.5dB
Maximum output level for 2 TV signals: 107 dBuV
3dB beam spread in the horizontal plane: 75 degrees
Beam spread 3dB in the vertical plane: 130 degrees
Back/front radiation ratio: >15 dB
Standing wave ratio WFS: =<2.2
Internal preamplifier power supply*: 5….24 V/40 mA
Current consumption: 40 mA @ +12 V
Mast diameter: 25 - 45 mm
Antenna dimensions: 360 x 335 x 155 mm
Net weight: 1.19 kg
Power adapter included
*Antenna open to the VHF band, but the gain in this range is small, so that the reception of channels from the VHF band can only take place with strong signals. For VHF reception, we recommend the TurboT V or TurboT V3 antennas and the ZWR210DC diplexer, which effectively transfers the signal from both antennas to one cable.
Pallet quantity: 100 pcs.
Characteristics
----------
Antenna adapted to receive analog and digital TV signals (DVB-T/T2)
Built-in antenna preamplifier
Built-in 5G SAW filter
Strong attenuation of GSM/LTE/5G mobile phone signals
Very low standing wave ratio WFS =<2.2
High resistance to adverse weather conditions
Excellent technical and functional parameters
Luxury class antenna - reliability, durability, aesthetics
Simple assembly without the need for tools
An ideal antenna for the city, camping and wherever a large antenna is impossible to use.
----------
Technical data
----------
Operating frequency range: 47 - 694 MHz (UHF: k.5 - k.48)*
Gain: 4.5 dBi
Antenna gain: 18…22 dB
Amplifier internal gain: 18 +/-2
Gain (+) attenuation (-) in the stopband: -15 dB/800 MHz
Antenna efficiency (gain + gain): 23 +/-2 dB/470-694 MHz, -10 dB/800 MHz
Polarity: Horizontal (H)
Noise figure: <4.5dB
Maximum output level for 2 TV signals: 107 dBuV
3dB beam spread in the horizontal plane: 75 degrees
Beam spread 3dB in the vertical plane: 130 degrees
Back/front radiation ratio: >15 dB
Standing wave ratio WFS: =<2.2
Internal preamplifier power supply*: 5….24 V/40 mA
Current consumption: 40 mA @ +12 V
Mast diameter: 25 - 45 mm
Antenna dimensions: 360 x 335 x 155 mm
Net weight: 1.19 kg
Power adapter included
*Antenna open to the VHF band, but the gain in this range is small, so that the reception of channels from the VHF band can only take place with strong signals. For VHF reception, we recommend the TurboT V or TurboT V3 antennas and the ZWR210DC diplexer, which effectively transfers the signal from both antennas to one cable.
Pallet quantity: 100 pcs.
