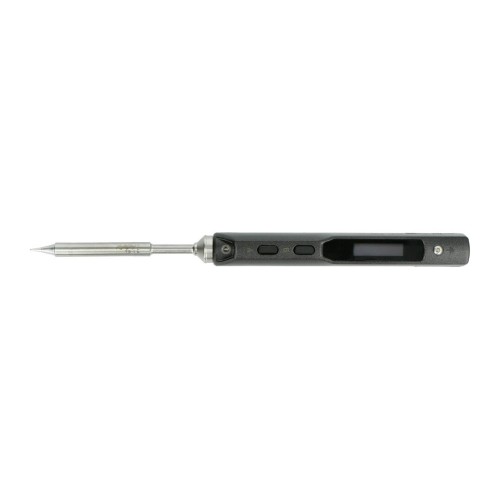

TS100 mobile soldering station - 65W

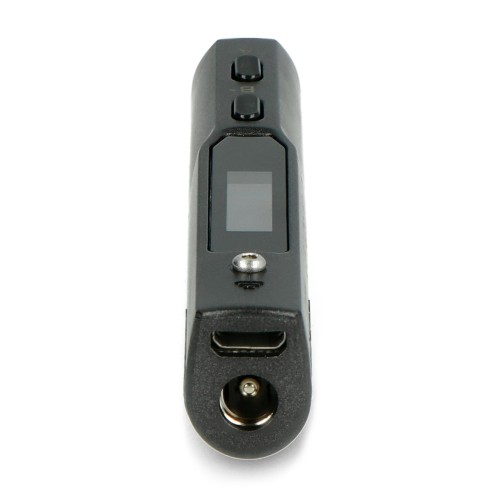

The mini soldering iron model TS100 is powered from 12 V to 24 V via a 5.5 / 2.5 mm DC socket port. The higher the supply voltage, the faster the temperature stabilises. The temperature can be adjusted between 100°C and 400°C. The device is equipped with a digital OLED display. The soldering iron, when at rest for a certain period of time, goes into a reduced power consumption state. The microUSB connector, located above the power outlet, is used to configure the device. It allows you to connect the soldering iron to a computer and change its operating parameters. No need to install anything, the computer itself detects the device as a drive with a test file. Possible configurations are: working time, after which the soldering iron has to go into reduced power mode and working temperature. The TS100 soldering iron works very well when soldering THT and SMD elements.

Soldering iron specifications

• Model: TS100
• Soldering tip: TS-BC2
• Power: 17 W to 65 W
• Supply voltage: 12 V to 24 V
• Power socket: DC Jack 2.5 / 5.5 mm
• Digital temperature control from 100°C to 400°C
• Temperature stability: +/- 2%
• Grounding resistance of the mainsail
• OLED digital display
• PC microUSB communication connector
• ARM STM32 control processor
• Possibility to define operating parameters from the PC level
• Sleep mode operation
• Dimensions:
• handle: length 96 mm, diameter 16.5 mm
• heating part: length: 72 + 33 mm, diameter: 5.5 mm
• Weight: 33 g

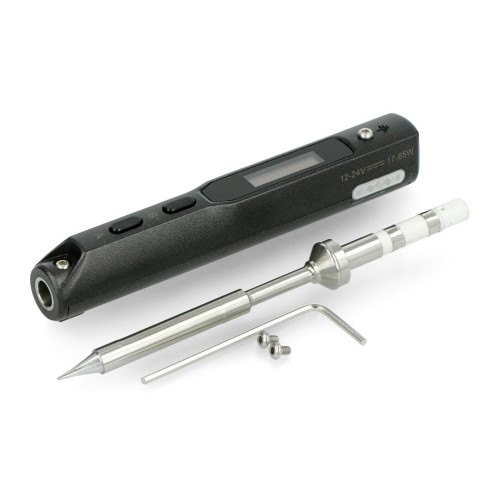

• Soldering iron TS100
• Soldering tip
• Allen key
• Spare screws
• Operating instructions
