Trinket M0 Microcontroller, CircuitPython, and Arduino IDE, Adafruit 3500

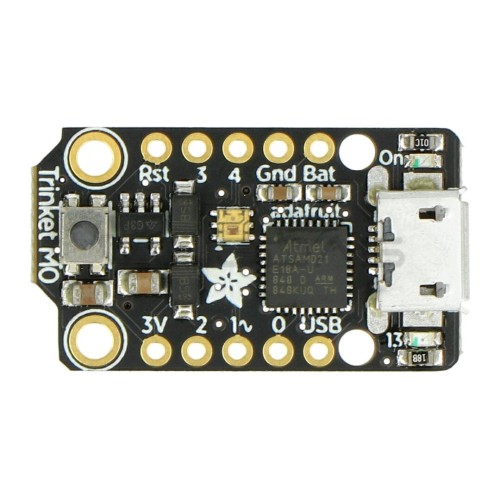

Module with Atmel ATSAMD21 microcontroller equipped with 256 KB of Flash memory, 5 digital pins, analog inputs, and 2 PWM channels. On board is a microUSB connector, through which the system can be programmed via the CircuitPython environment or the Arduino IDE. This version works with a voltage of 3.3 V.

Specification:

• Atmel ATSAMD21 microcontroller:
• Flash memory: 256 KB
• SRAM: 32 KB
• Clock Frequency: 48 MHz
• Working voltage: 3.3 V
• USB bootloader with the capability of programming by using the Arduino IDE or CircuitPython
• MicroUSB connector for programming
• On the board are three LEDs: green - for power, red - for a user, connected to pin 13, and DotStar RGB
• Power supply from the USB port or external power source with the automatic switching system
• The RESET button
• Digital leads: 5
• Analog inputs: 3
• PWM channels: 2
• Two pins can be used as a mechanical touch sensor
• Four mounting holes
• Dimensions: 27 x 15,3 x 2.75 mm
• Weight: 1.4 g
