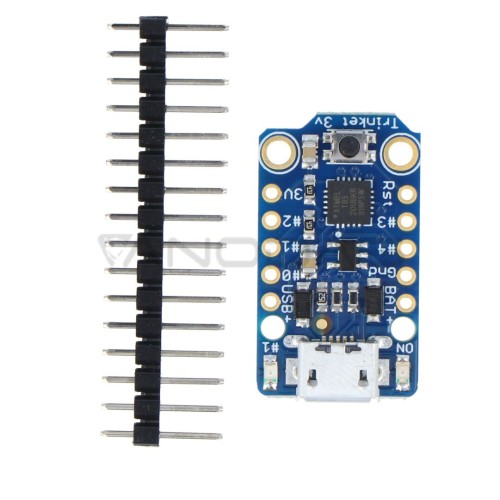

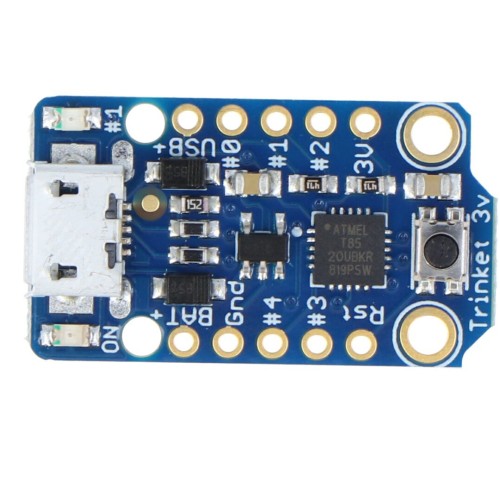

Trinket, Attiny85 Mini Microcontroller, 3.3V, Adafruit 1500

Miniature module with an AVR ATtiny85 microcontroller and is equipped with 8 KB of Flash memory, 5 digital pins, analog input, and 2 PWM channels. On board is miniUSB connector, through which the system can be programmed via the Arduino IDE. This version works with a voltage of 3.3 V.

Specification:

• The AVR ATtiny85 microcontroller:
• Flash memory: 8 KB (2.75 kB of which is occupied by the bootloader)
• SRAM: 512 b
• EEPROM: 512 b
• Clock Frequency: internal 8 MHz with the possibility to set 16 MHz for 5 V version
• USB bootloader with the possibility of programming via AVRdude or via Arduino IDE
• Mini-USB connector for programming
• Installed voltage regulators of 5.0 V and 3.3 V with current delivery up to 150 mA, allow connecting the supply voltage up to 16 V
• Power supply from the USB port or external power source with the automatic switching system
• On the board are two LEDs: green for power, and red for the user, connected to pin 1
• 5 digital pins of I/O, including:
• 2x together with the USB interface
• 1x analog input
• 2x PWM channels
• I2C and SPI interface
• Works with most basic libraries of the Arduino including Adafruit Neopixel
• Four mounting holes with a diameter of 2.1 mm
• Dimensions: 31 x 15.5 x 5 mm
• Weight: 1.85 g


Useful links:
Manufacturer website
Manual
