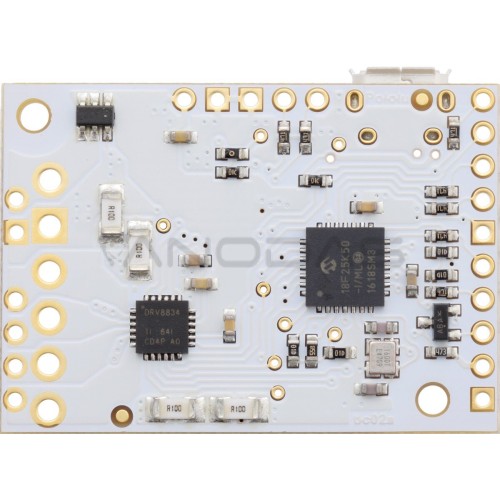

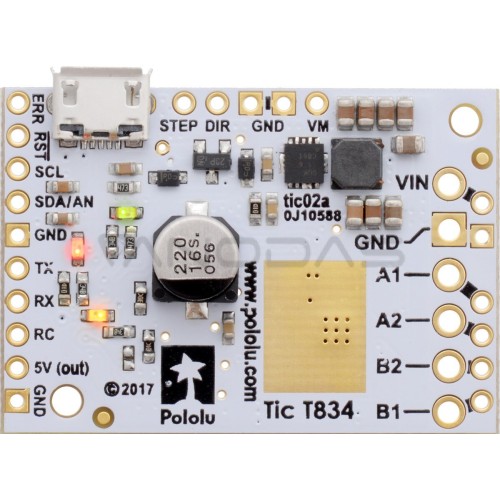

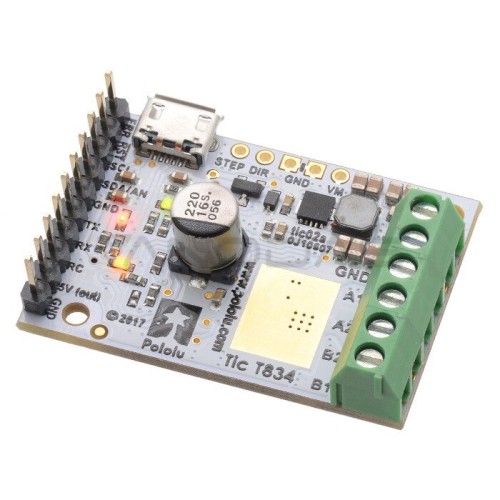

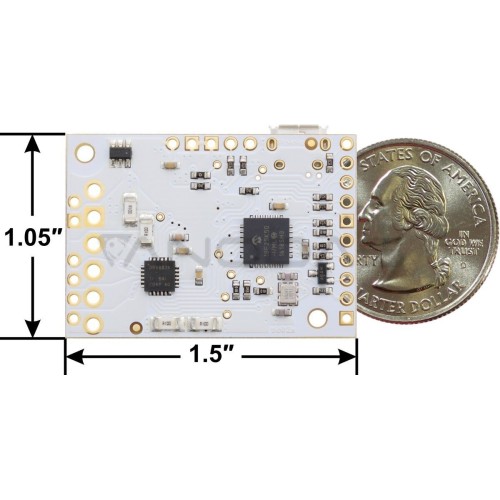

Tic T834 USB Multi-Interface, Pololu 3132

The stepper motor controller has a TI DRV8834 controller. It is powered from 2.5 - 10.8 V, with a maximum current consumption of 2 A per coil. Maximum resolution: 1/32 step. The module allows up to 1.5 A current flow without a heatsink. The controller supports six control interfaces: USB, TTL, I2C, analog, square encoder, RC.

Specification:

• Motor supply voltage: 2.5 V - 10.8 V
• Current: max. 1.5 A per coil (with up to 2 A cooling)
• Supply voltage of the logical part: 5 V regulator - external supply is not required
• Simple control interface
• 6 different modes of operation: full-step, 1/2, 1/4, 1/8, 1/16, and 1/32 step
• Possibility to adjust the current drawn by the motor by means of a potentiometer
• Protection against system overheating

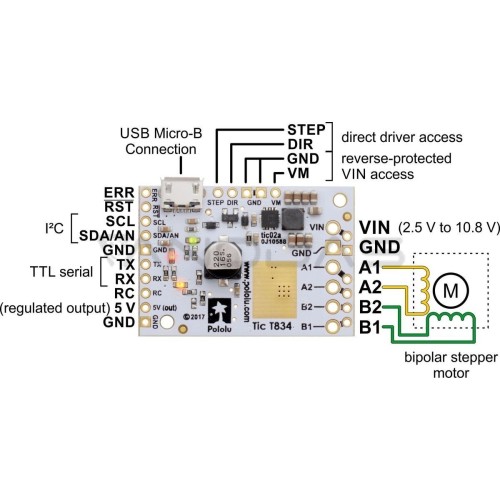

• It has 6 control panel interfaces: USB, Serial TTL, I2C, Pulse Servo RC, analog, square encoder
• Maximum step speed: 50000 steps per second


Useful links:
Manufacturer website
